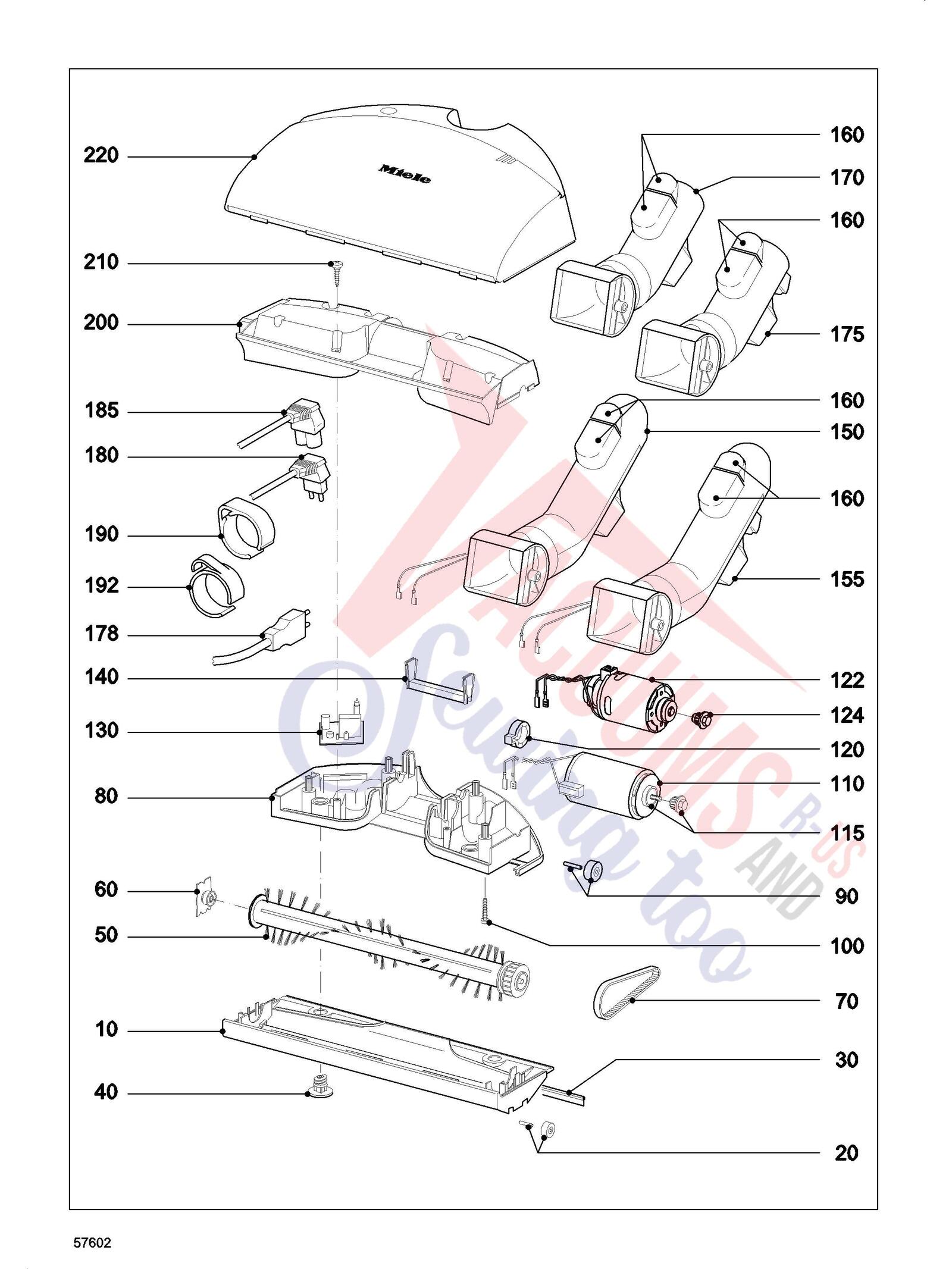

Parts list and schematic diagram for Miele Models: SEB 217, SEB217, Miele SEB217 Powerhead Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele Floor plate SEB217 | 4929763 | $93.60Read more |
| xx | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| xx | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| xx |  | Preowned reconditioned tested Miele SEB 217-3 power head | WP12121 | $114.99Read more |
| 20 | | Genuine Miele Wheel 2 Pcs. | 4919170 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Strip | 4929021 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Screw 2 Pcs. | 4919190 | $15.00Read more |
| 50+60 |  | Genuine Miele Brush roller | 4929740 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Bearing plate 2 Pcs. | 4941340 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele Tooth belt | 4897760 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Available ReconditionedReconditioned Genuine Miele Tooth belt More Product Details | 4897760R | $27.64Add to cart |
| 70 |  | Compatible alternateAftermarket Miele Geared Belt for SEB Powerheads More Product Details | 54330106 | $9.89Add to cart |
| 80+90 | | Genuine Miele Lower section SEB217 | 4929771 | $76.00Read more |
| 90 |  | Genuine Miele Wheel 2 Pcs. | 4919180 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | Not Available | undefined For Miele SEB 217 SEB217 | noop | Not Available |
| 115 |  | Genuine Miele Pinion | 6808920 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Bearing | 4929730 | $11.00Read more |
| 120 |  | Available ReconditionedBearing More Product Details | 4929730R | $9.50Add to cart |
| 130 |  | Reconditioned Miele SEB213 PC Board 100-120v PN: 5604210 | 5604210 | $161.60Add to cart |
| 140 | | Genuine Miele Cable duct | 4841770 | $20.60Read more |
| 150+160 |  | Genuine Miele Linkage socket pivot neck | 4929071 | $120.70Add to cart |
| 160 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 200 | | Genuine Miele Cover anthracite | 4841731 | $52.20Read more |
| 210 | Not Available | undefined For Miele SEB 217 SEB217 | noop | Not Available |
| 220 | | Genuine Miele Top anthracite | 5604200 | $71.70Read more |

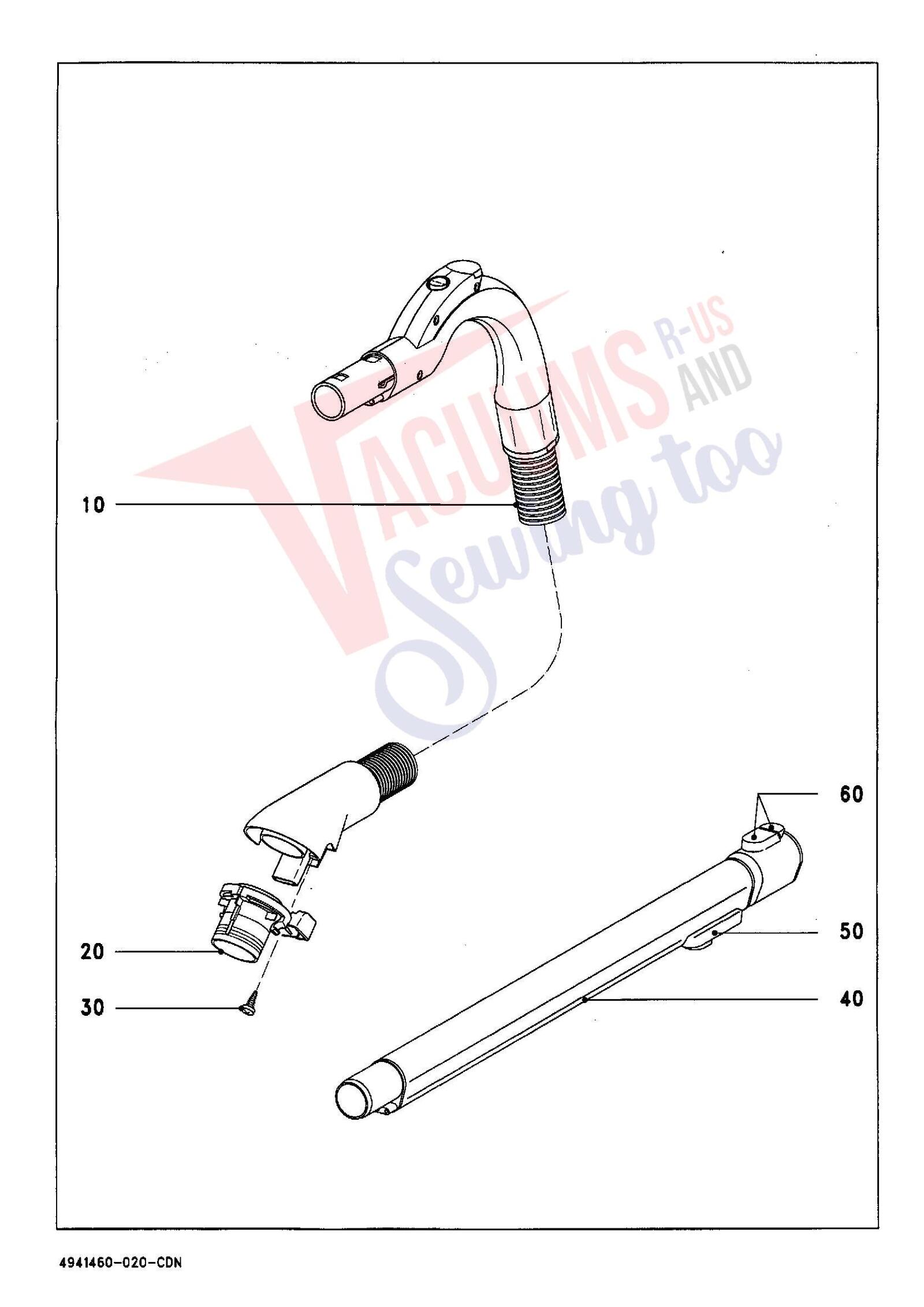

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Elec.suction hose SES115-3 | 5234144 | $219.00Read more |
| xx | | Genuine Miele Elec.suction hose SES120-3 230-240V | 5234024 | $346.70Read more |
| xx | No Image | --Raised Head Screw Din7981 Bz3,5X13 Z | 64392 | $2.50Read more |
| 20 | | Genuine Miele Socket anthracite | 4180082 | $27.90Read more |
| 30 | Not Available | undefined For Miele SEB 217 SEB217 | noop | Not Available |
| 40-60 | No Image | Elec.Telescop.Tube Set210 | 4869833 | $199.00Read more |
| 50 | | Genuine Miele Push button anthracite | 5064430 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
