Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

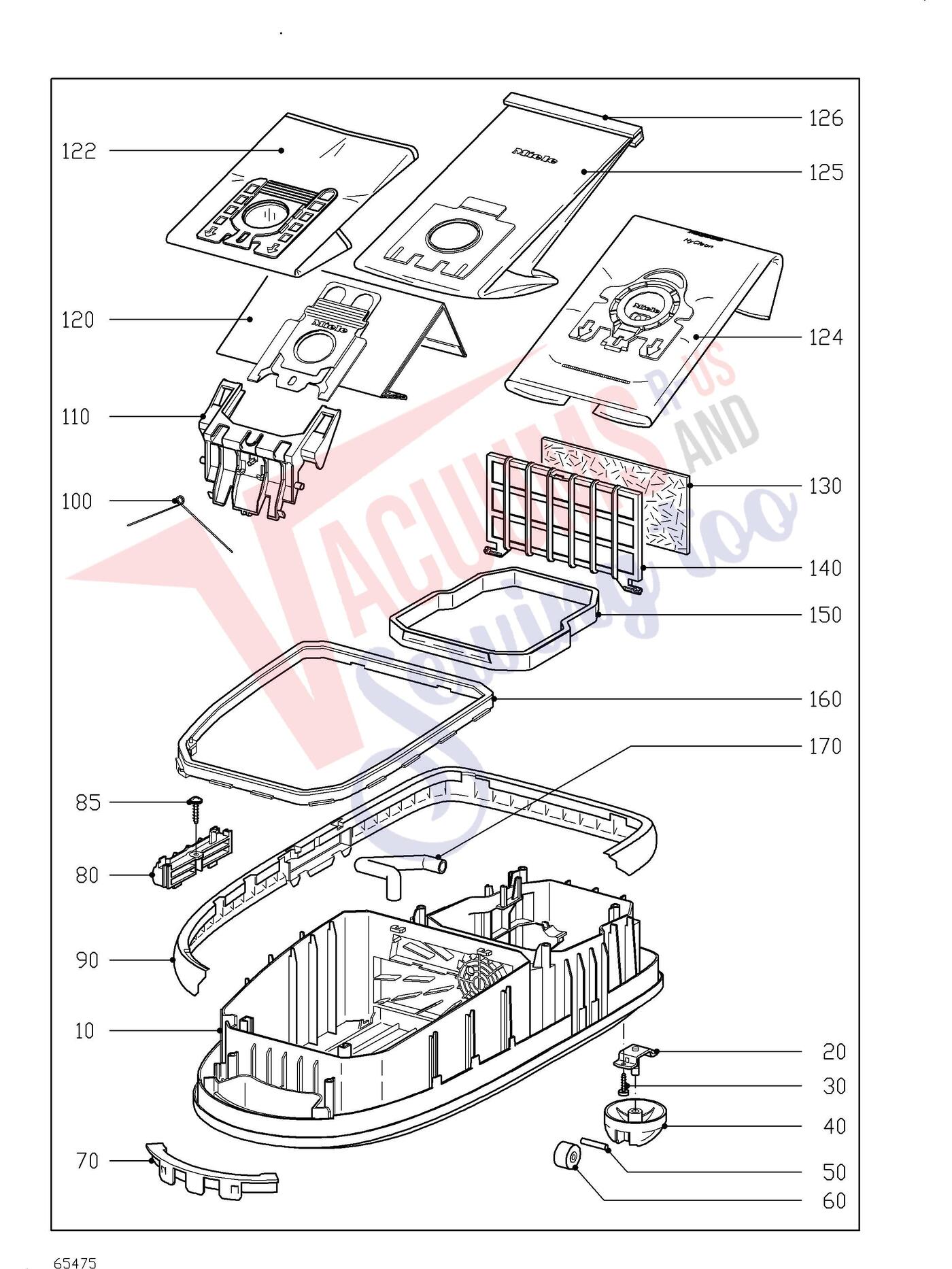

| # | Part image | Description | SKU | Price |
 | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more | |
| Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more | |
| Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more | |
| Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more | |
| Not Available | Casing bottom For Miele S636 | noop | Not Available | |
| Not Available | Cable reel For Miele S636 | noop | Not Available | |
| 10-60 | Not Available | Casing bottom anthracite For Miele S636 | 5314130 | Not Available |
| 10-60 | Not Available | Casing bottom anthracite For Miele S636 | 5314131 | Not Available |
| 10-60 | Not Available | Casing bottom anthracite For Miele S636 | 5314132 | Not Available |
| 10-60 | Not Available | Casing bottom anthracite For Miele S636 | 5314133 | Not Available |
| 10-60 | Not Available | Casing bottom anthracite For Miele S636 | 5314134 | Not Available |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 30 | Not Available | --Fixing For Miele S636 | noop | Not Available |
| 40-60 | Not Available | -Slide skid anthracite For Miele S636 | 3928120 | Not Available |
| 40-60 | Not Available | -Slide skid anthracite For Miele S636 | 6216100 | Not Available |
| 40-60 | No Image | -Slide Skid Anthracite | 6216101 | $11.00Read more |
| 40-60 |  | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Special order: ships in 2 to 4 weeks |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Special order: ships in 2 to 4 weeks |
| 40-60 | No Image | -Slide Skid Anthracite | 6216101 | $11.00Read more |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Special order: ships in 2 to 4 weeks |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Special order: ships in 2 to 4 weeks |
| 50+60 | No Image | -Support Roller Anthracite | 3946930 | $11.16Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.60Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.60Read more |
| 85 | Not Available | --Fixing For Miele S636 | noop | Not Available |
| 90 | Not Available | Buffer For Miele S636 | 5093610 | Not Available |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 110 | Not Available | Bracket anthracite For Miele S636 | 5088940 | Not Available |
| 110 | Not Available | Bracket anthracite For Miele S636 | 5088941 | Not Available |
| 110 | Not Available | Bracket Dustbag For Miele S636 | 5088942 | Not Available |
| 120 | No Image | Dustbag Typ N 1/5 S600 | 5275420 | $20.16Read more |
| 122 | Not Available | vacuum cleaner bag ST-G/N S400/600/800 For Miele S636 | 5588940 | Not Available |
| 122 | Not Available | vacuum cleaner bag ST-G/N S400/600/800 For Miele S636 | 5588940 | Not Available |
| 122 | Not Available | vacuum cleaner bag G/N This spare part can be replaced without opening the appliance. For Miele S636 | 5588941 | Not Available |
| 124 | Not Available | vacuum cleaner bag G/N HyClean This spare part can be replaced without opening the appliance. For Miele S636 | 7189520 | Not Available |
| 124 | No Image | FILTER, HANG UP WET/DRY Part Number: 9153500 for Shop Vac | 9153500 | $27.19Read more |
| 124 | Not Available | vacuum cleaner bag GN HyClean 3D This spare part can be replaced without opening the appliance. For Miele S636 | 9917730 | Not Available |
| 125+126 | Not Available | Cloth filter bag S227-S858 This special part can optionally be fitted as an alternative to the standard part. For Miele S636 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 130 | Not Available | Dust compart.filter 3 S500,S600 For Miele S636 | 5267210 | Not Available |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Filter frame | 5117170 | $13.50Read more |
| 150 | | Genuine Miele Seal | 5088860 | $18.80Read more |
| 160 | | Genuine Miele Sealing ring | 5093620 | $20.60Read more |
| 170 | | Genuine Miele Hose | 5088980 | $15.00Read more |

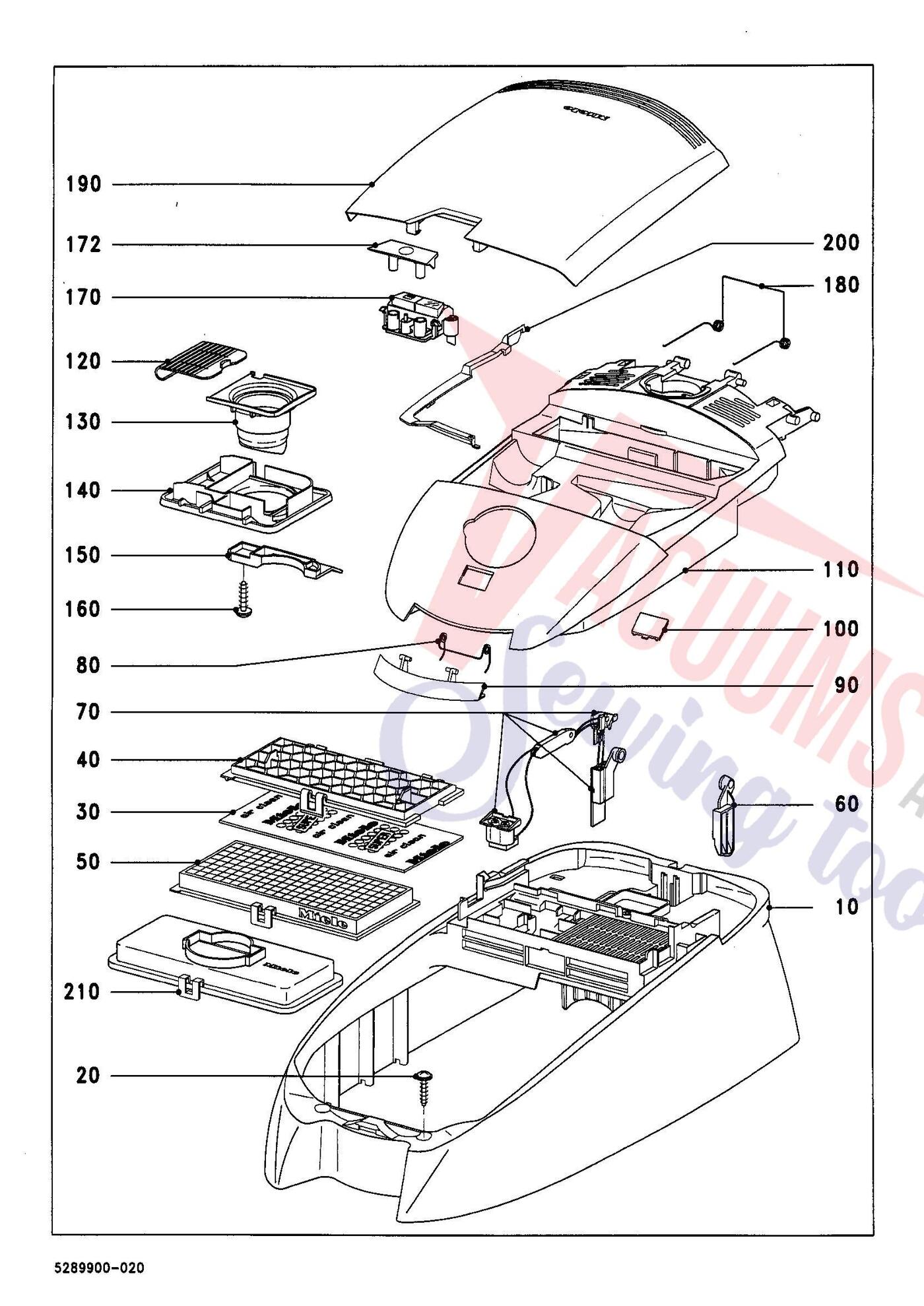

| # | Part image | Description | SKU | Price |
| Not Available | --Raised head screw 4,0X18 For Miele S636 | 4274911 | Not Available | |
 | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more | |
| Not Available | --Raised head screw 4,0X18 For Miele S636 | 4274911 | Not Available | |
| Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more | |
| 10 | Not Available | Cover frame Royal blue For Miele S636 | 5225820 | Not Available |
| 10 | Not Available | Cover frame Royal blue For Miele S636 | 5225821 | Not Available |
| 10 | | Genuine Miele Cover frame Royal blue | 5225822 | $93.60Read more |
| 10 | Not Available | Cover frame Mint green For Miele S636 | 5225832 | Not Available |
| 10 | Not Available | Cover frame tropical green For Miele S636 | 5225870 | Not Available |
| 10 | Not Available | Cover frame tropical green For Miele S636 | 5225871 | Not Available |
| 10 | Not Available | Cover frame tropical green For Miele S636 | 5225872 | Not Available |
| 10 | Not Available | Cover frame deep black For Miele S636 | 5225880 | Not Available |
| 10 | Not Available | Cover frame deep black For Miele S636 | 5225881 | Not Available |
| 10 | Not Available | Cover frame deep black For Miele S636 | 5225882 | Not Available |
| 20 | Not Available | --Fixing For Miele S636 | noop | Not Available |
| 30 | | Genuine Miele Grille anthracite | 5089130 | $18.80Read more |
| 30 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $18.80Read more |
| 50 | Not Available | Act.S-Class-filter For Miele S636 | 4854911 | Not Available |
| 50 | Not Available | Active HEPA filter S300-S600 For Miele S636 | 4854912 | Not Available |
| 50 | Not Available | Active HEPA filter S300-S800 For Miele S636 | 4854913 | Not Available |
| 50 | No Image | Active Hepa Filter Sf-Ah30 S300-800 | 4854915 | $0.00Read more |
| 50 | Not Available | Active HEPA filter SF-AH30 S300-800 This spare part can be replaced without opening the appliance. This special part can optionally be fitted as an alternative to the standard part. For Miele S636 | 7226160 | Not Available |
| 50 | Not Available | Filter SF-HA30 This spare part can be replaced without opening the appliance. This special part can optionally be fitted as an alternative to the standard part. For Miele S636 | 9616270 | Not Available |
| 50 | Not Available | Act.Air Cleanfilter For Miele S636 | 4306915 | Not Available |
| 50 | Not Available | Act.Air Cleanfilter S300-S800 For Miele S636 | 4306916 | Not Available |
| 50 | No Image | Act.Air Cleanfilter S300-S800 | 4306917 | $0.00Read more |
| 50 | No Image | Act.Air Cleanfilter Sf-Aac30 S300-800 | 4306918 | $0.00Read more |
| 50 | Not Available | Act.Air Cleanfilter SF-AAC30 S300-800 This spare part can be replaced without opening the appliance. For Miele S636 | 7226140 | Not Available |
| 50 |  | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $49.00Read more |
| 60 |  | Genuine Miele Hinge left anthracite | 5089000 | $4.90Add to cart |
| 70 | Not Available | Flush socket outlet 2 pole anthracite For Miele S636 | 5314020 | Not Available |
| 80 | | Genuine Miele Torsion spring | 5124500 | $20.60Read more |
| 90 | Not Available | Lock anthracite For Miele S636 | 5093640 | Not Available |
| 90 | Not Available | Lock anthracite For Miele S636 | 5093641 | Not Available |
| 90 | Not Available | Lock anthracite For Miele S636 | 5093642 | Not Available |
| 100 | Not Available | Cap anthracite For Miele S636 | 5089030 | Not Available |
| 100 | Not Available | Cap anthracite For Miele S636 | 5089031 | Not Available |
| 100 | | Genuine Miele Cap anthracite | 5089032 | $3.60Read more |
| 110 | Not Available | Casing top Royal blue For Miele S636 | 5231170 | Not Available |
| 110 | Not Available | Casing top Royal blue For Miele S636 | 5231171 | Not Available |
| 110 | | Genuine Miele Casing top Royal blue | 5231172 | $98.00Read more |
| 110 | No Image | Casing Top Mint Green | 5231181 | $109.00Read more |
| 110 | Not Available | Casing top tropical green For Miele S636 | 5231240 | Not Available |
| 110 | Not Available | Casing top tropical green For Miele S636 | 5231241 | Not Available |
| 110 | Not Available | Casing top tropical green For Miele S636 | 5231242 | Not Available |
| 110 | Not Available | Casing top deep black For Miele S636 | 5231300 | Not Available |
| 110 | Not Available | Casing top deep black For Miele S636 | 5231301 | Not Available |
| 110 | Not Available | Casing top deep black This spare part can be replaced without opening the appliance. For Miele S636 | 5231302 | Not Available |
| 120 | | Genuine Miele Coupler link anthracite | 5091021 | $3.60Read more |
| 120 | | Genuine Miele Coupler link anthracite | 5091021 | $3.60Read more |
| 130 | Not Available | Slide sleeve anthracite For Miele S636 | 5089040 | Not Available |
| 130 | Not Available | Slide sleeve anthracite For Miele S636 | 5089041 | Not Available |
| 130 | No Image | Slide Sleeve Anthracite | 5089042 | $12.31Read more |
| 140 | | Genuine Miele Dust channel anthracite | 5089011 | $13.50Read more |
| 140 | | Genuine Miele Dust channel anthracite | 5089011 | $13.50Read more |
| 150 | | Genuine Miele Holder Dust channel | 5223481 | $4.90Read more |
| 150 | | Genuine Miele Holder Dust channel | 5223481 | $4.90Read more |
| 160 | Not Available | --Fixing For Miele S636 | noop | Not Available |
| 170+172 | | Genuine Miele Change filter ind. vollst. | 5089055 | $33.80Read more |
| 170+172 | | Genuine Miele Change filter ind. vollst. | 5089055 | $33.80Read more |
| 172 | Not Available | -interlock For Miele S636 | 5089090 | Not Available |
| 172 | | Genuine Miele interlock | 5089091 | $9.70Read more |
| 180 | | Genuine Miele Torsion spring | 5108200 | $6.60Read more |
| 190 | Not Available | Lid Royal blue For Miele S636 | 5271440 | Not Available |
| 190 | Not Available | Lid Royal blue For Miele S636 | 5271441 | Not Available |
| 190 | Not Available | Lid Royal blue This spare part can be replaced without opening the appliance. For Miele S636 | 5271442 | Not Available |
| 190 | Not Available | Lid Mint green For Miele S636 | 5271452 | Not Available |
| 190 | Not Available | Lid deep black For Miele S636 | 5271652 | Not Available |
| 190 | Not Available | Lid tropical green For Miele S636 | 5271600 | Not Available |
| 190 | Not Available | Lid tropical green For Miele S636 | 5271601 | Not Available |
| 190 | Not Available | Lid tropical green For Miele S636 | 5271602 | Not Available |
| 190 | Not Available | Lid deep black For Miele S636 | 5271652 | Not Available |
| 190 | Not Available | Lid deep black For Miele S636 | 5271650 | Not Available |
| 190 | Not Available | Lid deep black For Miele S636 | 5271651 | Not Available |
| 190 | Not Available | Lid deep black For Miele S636 | 5271652 | Not Available |
| 200 | Not Available | Cover strip anthracite For Miele S636 | 5108210 | Not Available |
| 210 | | Genuine Miele Blower plate | 5109310 | $20.60Read more |
| # | Part image | Description | SKU | Price |

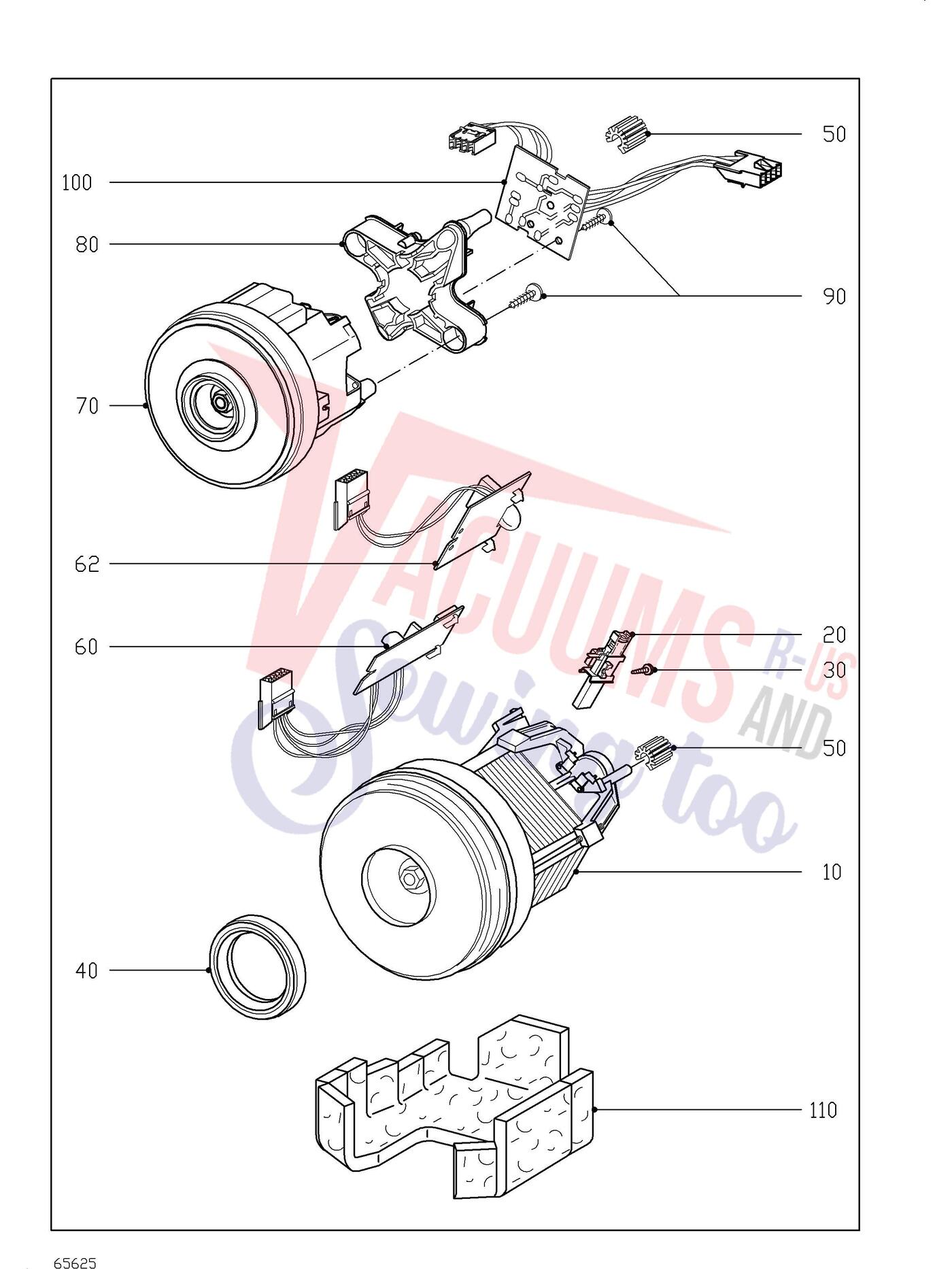

| Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more | |
| 10-30 | Not Available | Fan Mrg44-43/2 230V For Miele S636 | 5093951 | Not Available |
| 20 | Not Available | -Carbon brush 2 Pcs. For Miele S636 | 5419810 | Not Available |
| 30 | Not Available | --Fixing For Miele S636 | noop | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $13.50Read more |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.60Read more |
| 60 | Not Available | Electronic unit For Miele S636 | noop | Not Available |
| 70 |  | Pre-Owned Miele Motor with PCB for S251 s344i s200 s300 and Numerous Other Models - Tested Good | 5709491r | $99.99Read more |
| 70 |  | Available ReconditionedReconditioned Genuine Miele Fan Mrg722/81-42/2 120V More Product Details | 5709492R | $100.00Add to cart |
| 70 |  | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | Not Available | Fan Mrg728-42/2 230V In addition to this spare part, the next-listed part is also required. For Miele S636 | 5693814 | Not Available |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 100 | Not Available | Electronic unit EL700R 230-240V In addition to this spare part, the next-listed part is also required. For Miele S636 | 6716020 | Not Available |
| 100 | Not Available | Conv.kit fan S700 In addition to this spare part, the next-listed part is also required. For Miele S636 | 10126311 | Not Available |
| 110 | | Genuine Miele Damping plate | 5088890 | $10.70Read more |

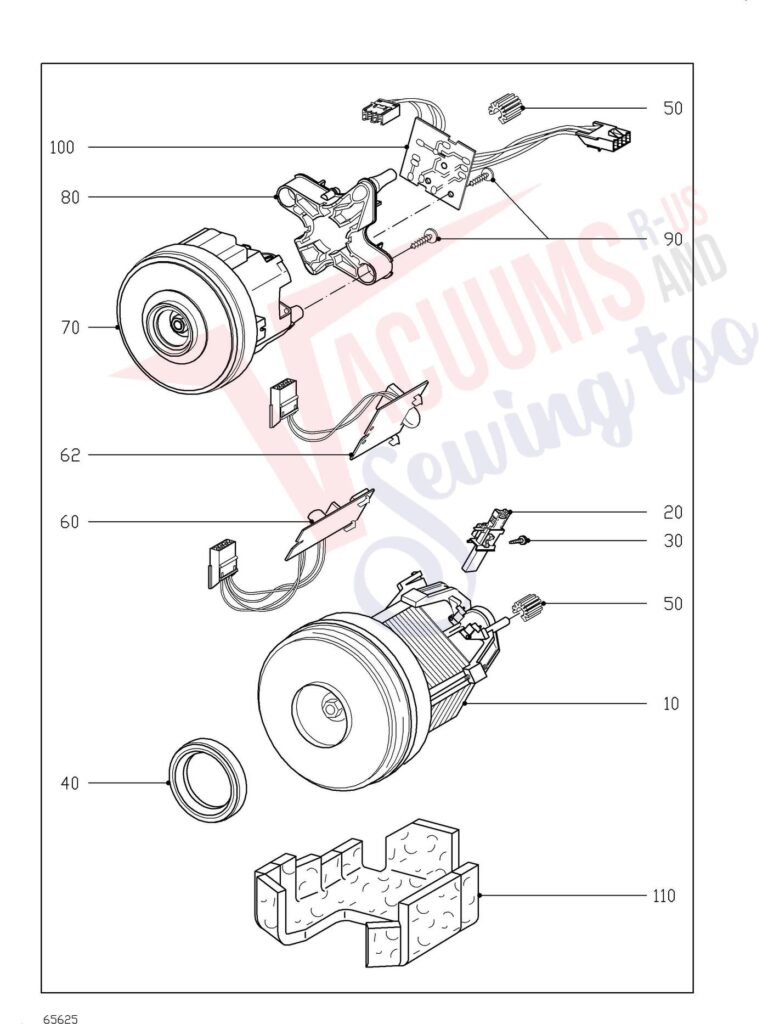

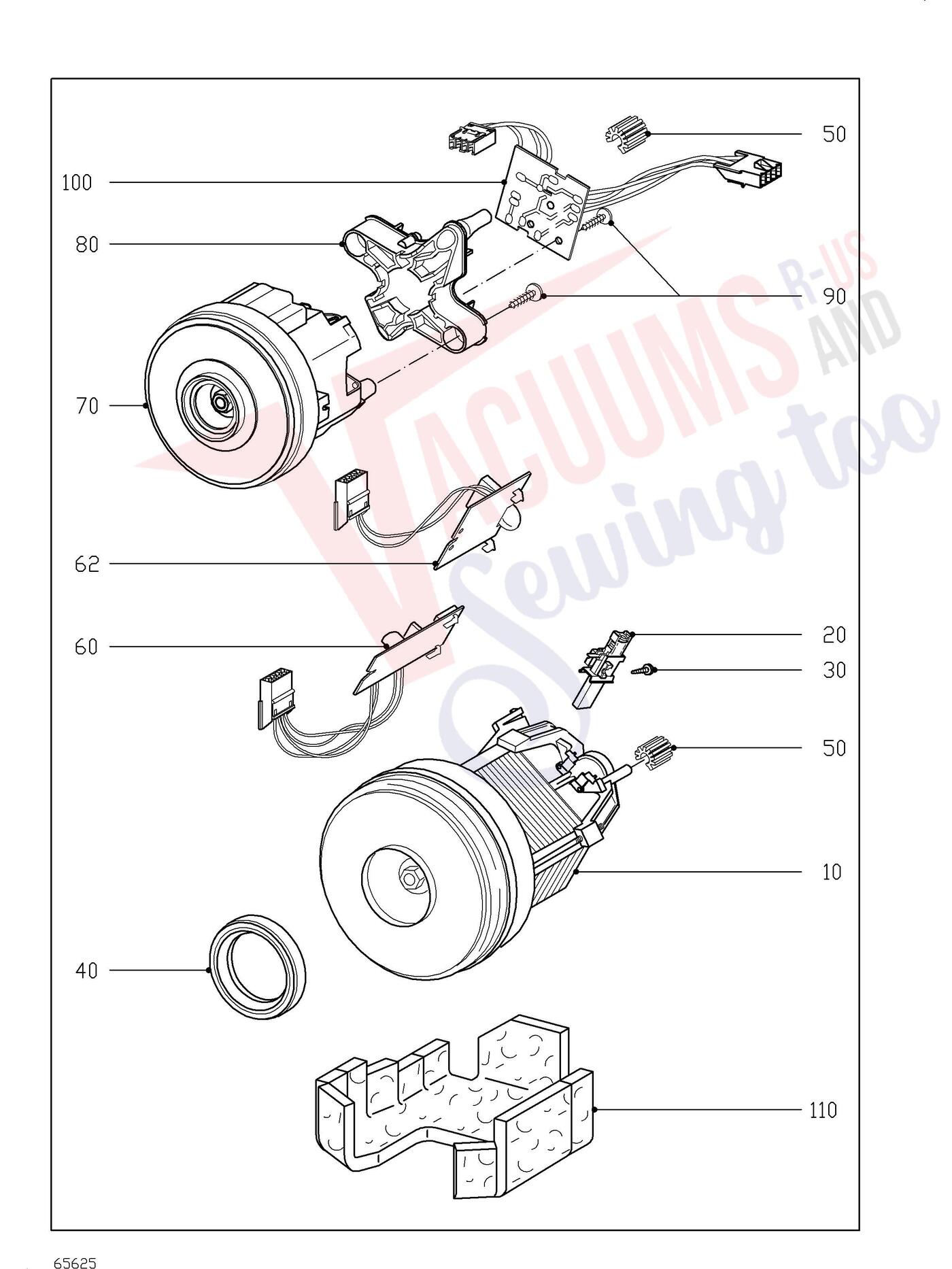

| # | Part image | Description | SKU | Price |
| Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more | |
| 10-30 | Not Available | Fan Mrg44-43/2 230V For Miele S636 | 5093951 | Not Available |
| 20 | Not Available | -Carbon brush 2 Pcs. For Miele S636 | 5419810 | Not Available |
| 30 | Not Available | --Fixing For Miele S636 | noop | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $13.50Read more |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.60Read more |
| 60 | Not Available | Electronic unit For Miele S636 | noop | Not Available |
| 70 | | Pre-Owned Miele Motor with PCB for S251 s344i s200 s300 and Numerous Other Models - Tested Good | 5709491r | $99.99Read more |
| 70 | | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | Not Available | Fan Mrg728-42/2 230V In addition to this spare part, the next-listed part is also required. For Miele S636 | 5693814 | Not Available |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 100 | Not Available | Electronic unit EL700R 230-240V In addition to this spare part, the next-listed part is also required. For Miele S636 | 6716020 | Not Available |
| 100 | Not Available | Conv.kit fan S700 In addition to this spare part, the next-listed part is also required. For Miele S636 | 10126311 | Not Available |
| 110 | | Genuine Miele Damping plate | 5088890 | $10.70Read more |

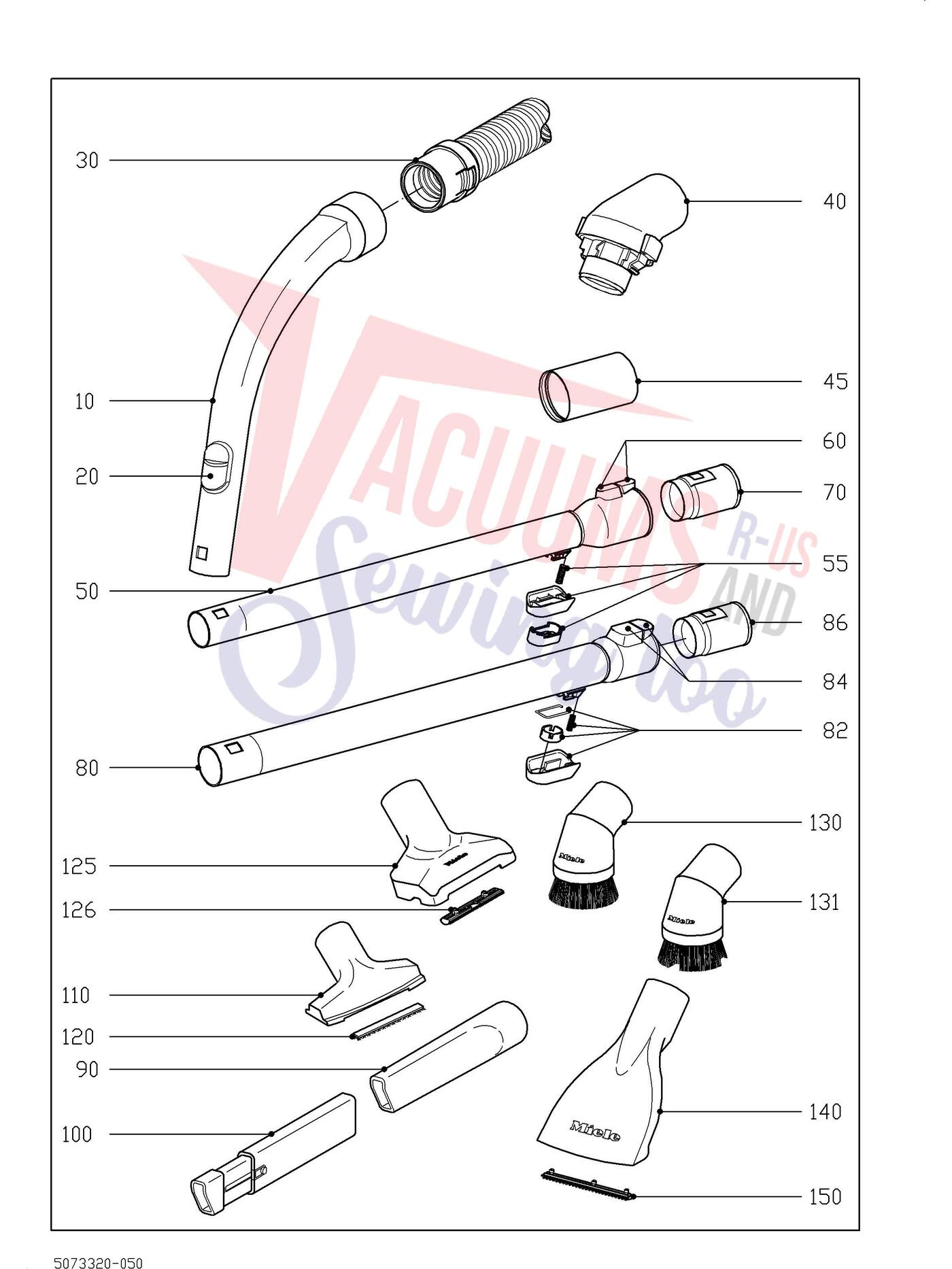

| # | Part image | Description | SKU | Price |
| Not Available | Thread lifter For Miele S636 | noop | Not Available | |
| Not Available | No spare part For Miele S636 | noop | Not Available | |
| 10-40 | Not Available | Suction hose S500/S600 For Miele S636 | 5269600 | Not Available |
| 10-40 | Not Available | Suction hose S500/S600 For Miele S636 | 5269601 | Not Available |
| 10-40 | Not Available | Suction hose S500/S600 For Miele S636 | 5269602 | Not Available |
| 10-40 | Not Available | Suction hose S500/S600 For Miele S636 | 5269603 | Not Available |
| 10-40 |  | Miele Suction Hose for SS500 and S600 Canister Vacuums - 5269604 | WP11957 | $91.80Read more |
| 10-40 |  | Available ReconditionedReconditioned Miele Suction Hose for SS500 and S600 Canister Vacuums - 5269604 More Product Details | WP112979R | $71.58Add to cart |
| 10+20 | Not Available | -Tubular handle anthracite For Miele S636 | 5269090 | Not Available |
| 10+20 |  | Reconditioned Miele Straight Suction Hose and Handle Assembly | 5269091R | $53.99Read more |
| 10+20 | Not Available | -Tubular handle anthracite For Miele S636 | 9442600 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 10+20 | Not Available | -Tubular handle anthracite For Miele S636 | 9442600 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Suction hose silver-coloured 1,8m | 5230830 | $61.00Read more |
| 30 |  | Available ReconditionedReconditioned Genuine Miele Suction hose silver-coloured 1,8m More Product Details | 5230830R | $45.25Add to cart |
| 40 | Not Available | -Elbow anthracite For Miele S636 | 5108110 | Not Available |
| 40 | Not Available | -Elbow anthracite For Miele S636 | 5108111 | Not Available |
| 45 | Not Available | Connecting tube Suction hose This special part can optionally be fitted as an alternative to the standard part. For Miele S636 | 5527410 | Not Available |
| 50-70 | Not Available | Telescopic pipe anthracite For Miele S636 | 4666282 | Not Available |
| 50-70 | Not Available | Telescopic pipe St-steel anthracite For Miele S636 | 4694992 | Not Available |
| 50-70 | Not Available | Telescopic pipe Stainless steel For Miele S636 | 5303700 | Not Available |
| 55 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 60+70 | Not Available | -Ay.kt.lock.device Telescopic pipe For Miele S636 | 3876671 | Not Available |
| 60+70 | Not Available | -Ay.kt.lock.device Telescopic pipe For Miele S636 | 3876672 | Not Available |
| 60+70 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80-86 | Not Available | Telescopic pipe Stainless steel For Miele S636 | 5658810 | Not Available |
| 80-86 | No Image | Telescopic Pipe 2-Part St.Steel | 5658811 | $77.99Read more |
| 80-86 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 80-86 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 80-86 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 82 | No Image | -Push Button Round | 5780930 | $15.53Read more |
| 82 | | Genuine Miele Push button Round | 5780931 | $0.00Read more |
| 82 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 84+86 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 84 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | Not Available | Crevice nozzle 149mm For Miele S636 | 3614170 | Not Available |
| 90 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 90 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Nozzle extension anthracite | 5120360 | $33.80Read more |
| 110+120 | No Image | Upholstery Nozzle Anthracite | 3571680 | $22.00Read more |
| 120 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 125+126 | Not Available | Upholstery nozzle anthracite For Miele S636 | 5512320 | Not Available |
| 125+126 |  | Genuine Miele Upholstery Tool All Canister and upright Miele vacuum cleaners | 7153050 | $0.00Read more |
| 125+126 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 125+126 | No Image | Upholstery Nozzle | 9442621 | $22.00Read more |
| 125+126 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 126 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 126 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 130 | Not Available | Dusting brush Natural This special part can optionally be fitted as an alternative to the standard part. For Miele S636 | 5387400 | Not Available |
| 131 | Not Available | Dusting brush PP This refers to a standard part. Optionally a special part may also be fitted. For Miele S636 | 7010300 | Not Available |
| 131 |  | Genuine Miele Dusting Brush | 7010301 | $0.00Read more |
| 131 | | Genuine Miele Dusting Brush | 7010301 | $0.00Read more |
| 131 | | Genuine Miele Dusting brush PP | 11322550 | $24.00Read more |
| 131 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 131 | | Genuine Miele ST Dusting brush Natural | 5387401 | $0.00Read more |
| 131 | | Genuine Miele Dusting brush | 6778590 | $0.00Read more |
| 131 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | Not Available | Mattress nozzle anthracite This spare part can be replaced without opening the appliance. For Miele S636 | 5050520 | Not Available |
| 140+150 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
Report errors on this page HERE
