Parts list and schematic diagram for Miele Models: S5411, Black Pearl Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

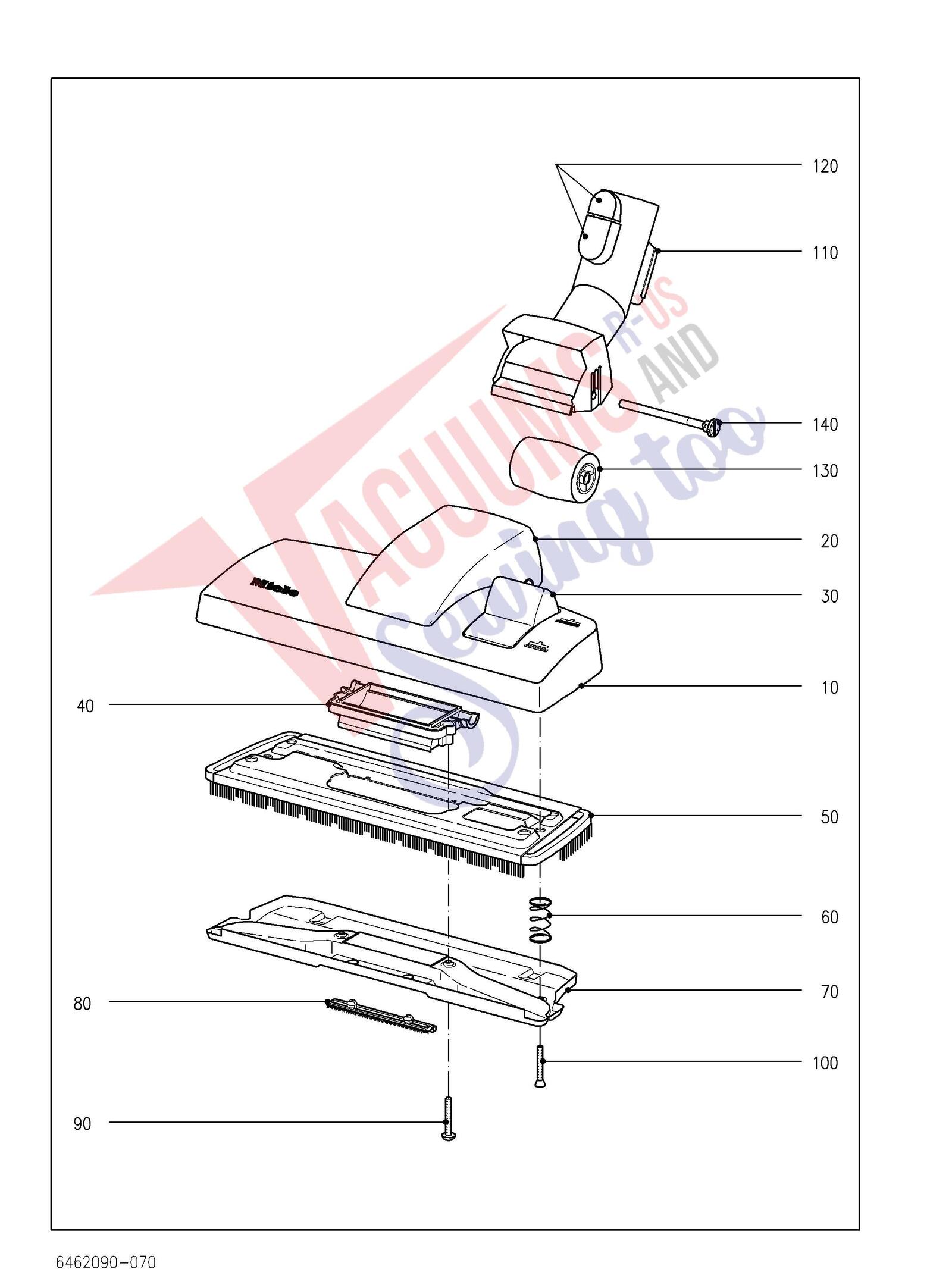

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele S5411 S5411 | noop | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 For Miele S5411 S5411 | 6223980 | Not Available |
| 10-140 |  | Miele AllTeQ Floor Head for Hard Floors and Carpets SBD 285-3 | 2853 | $98.70Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

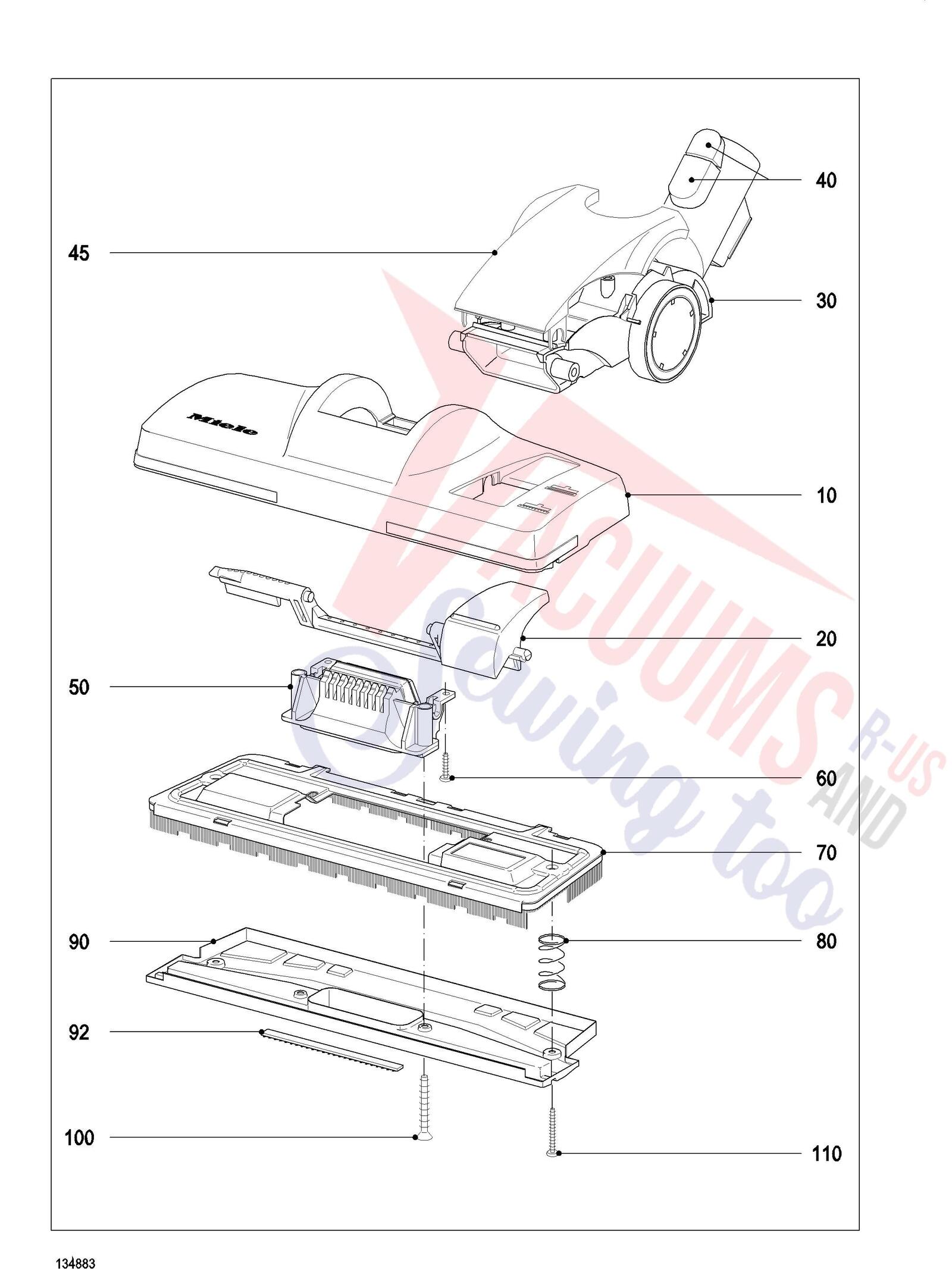

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele S5411 S5411 | noop | Not Available |
| 10 |  | Genuine Miele Top SBD295-3 | 7130340 | $39.50Read more |
| 10-120 | Not Available | Floor nozzle AirTeQ SBD650-3 For Miele S5411 S5411 | 7879500 | Not Available |
| 20 | No Image | -Foot Switch Sbd295-3 | 7130330 | $20.00Read more |
| 30+40 | | Genuine Miele Linkage SBD295-3 | 7130360 | $62.00Read more |
| 40 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Genuine Miele Cover SBD295-3 | 7130350 | $33.80Read more |
| 50 | No Image | -Fixing Sbd295-3 | 7130310 | $15.00Read more |
| 60 | Not Available | undefined For Miele S5411 S5411 | noop | Not Available |
| 70 | Not Available | undefined For Miele S5411 S5411 | 7130300 | Not Available |
| 80 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 90+92 | | Genuine Miele Lower section SBD295-3 | 7130290 | $43.60Read more |
| 92 | No Image | -Thread Lifter 2 Pcs. Sbd295-3 | 7551160 | $15.00Read more |
| 110 | Not Available | undefined For Miele S5411 S5411 | noop | Not Available |
| 120 | Not Available | undefined For Miele S5411 S5411 | noop | Not Available |

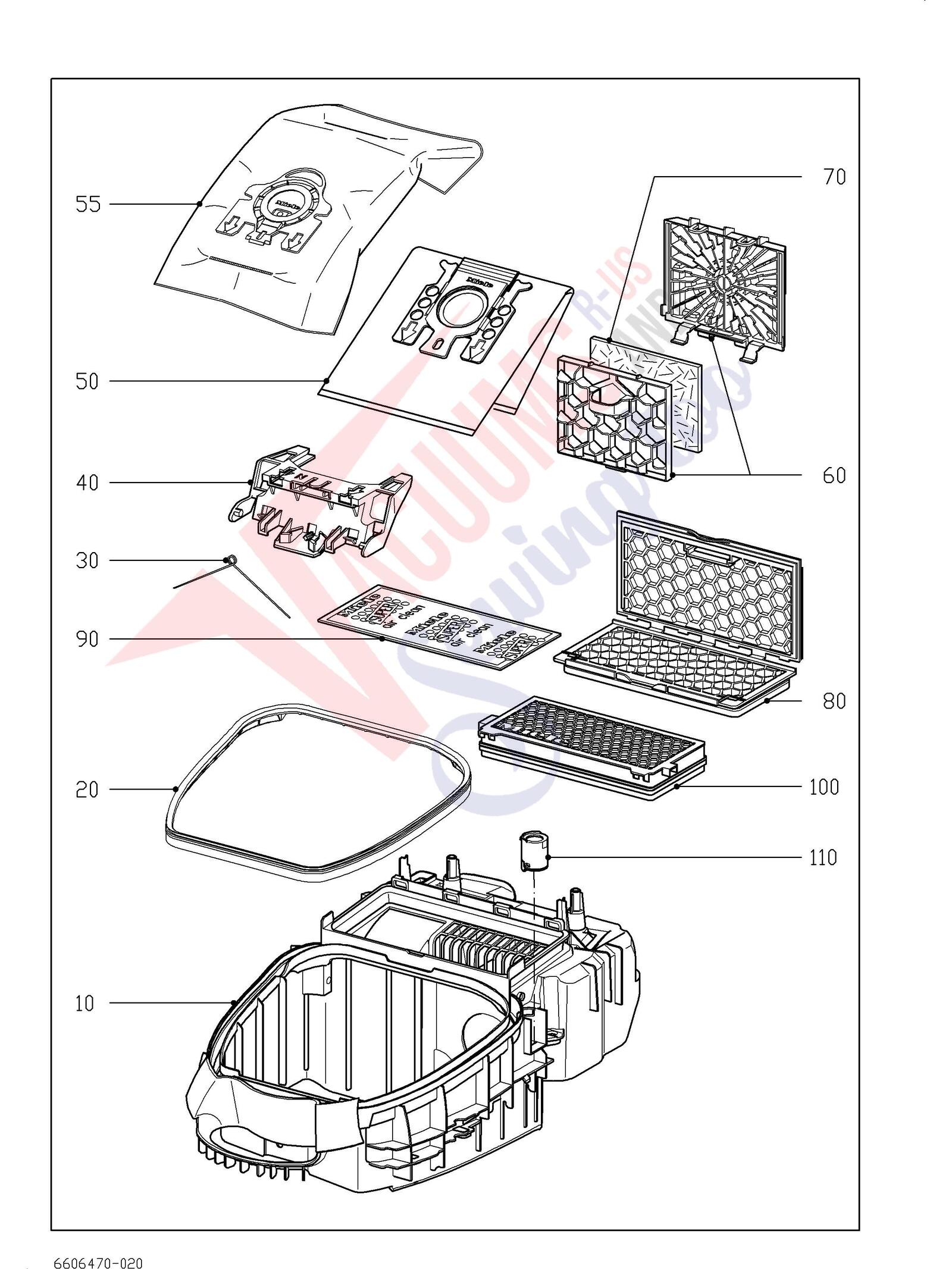

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele S5411 S5411 | noop | Not Available |
| 10 | | Genuine Miele Casing insert S5xxx | 12073090 | $71.70Read more |
| 20 | | Genuine Miele Sealing ring | 6141480 | $13.50Read more |
| 30 |  | Genuine Miele Torsion spring Bracket | 6434090 | $2.50Add to cart |
| 40 | | Genuine Miele Bracket vacuum cleaner bag | 6081322 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Aftermarket Miele GN Bags 5pk with Filters | WP10968 | $19.16Add to cart |
| 50 | No Image | Compatible alternateAftermarket Miele GN value package 8 bags aftermarket sf-ha50 filter and pre filter More Product Details | AMGNVP | $44.99Add to cart |
| 50 |  | Miele HEPA Vacuum Bags Type GN - 4pk | 4002515578971 | $25.49Read more |
| 60+70 | | Genuine Miele Filter frame Brilliant blue | 6241011 | $20.60Read more |
| 70 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 |  | Miele ActiveAir Clean Filter SF-AA50 | 9616110 | $49.00Add to cart |
| 100 |  | Miele HEPA AirClean with TimeStrip SF-HA 50 | 4002515317013 | $66.69Read more |
| 100 |  | Aftermarket Miele SF-HA 50 HEPA Filter | 54236401 | $28.59Add to cart |
| 110 | | Genuine Miele End plug Suction control | 6175470 | $2.30Read more |
| 120 | | Genuine Miele End plug | 6938810 | $6.60Read more |

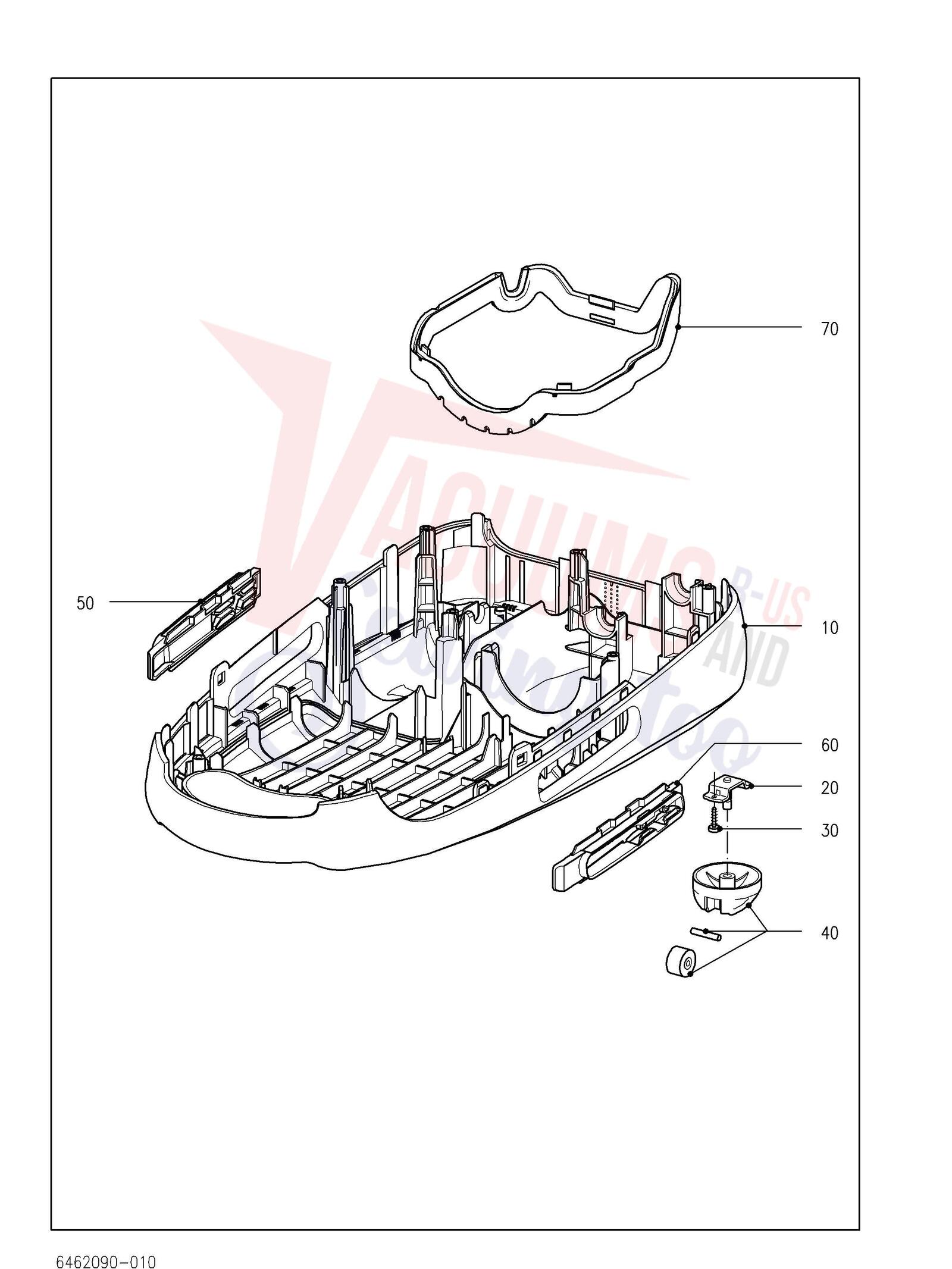

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Casing bottom anthracite | 9895502 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 30 | Not Available | undefined For Miele S5411 S5411 | noop | Not Available |
| 40 |  | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Suspension right | 6065240 | $4.90Read more |
| 60 | Not Available | undefined For Miele S5411 S5411 | 6065270 | Not Available |
| 70 | No Image | -Seal | 6049591 | $15.00Read more |

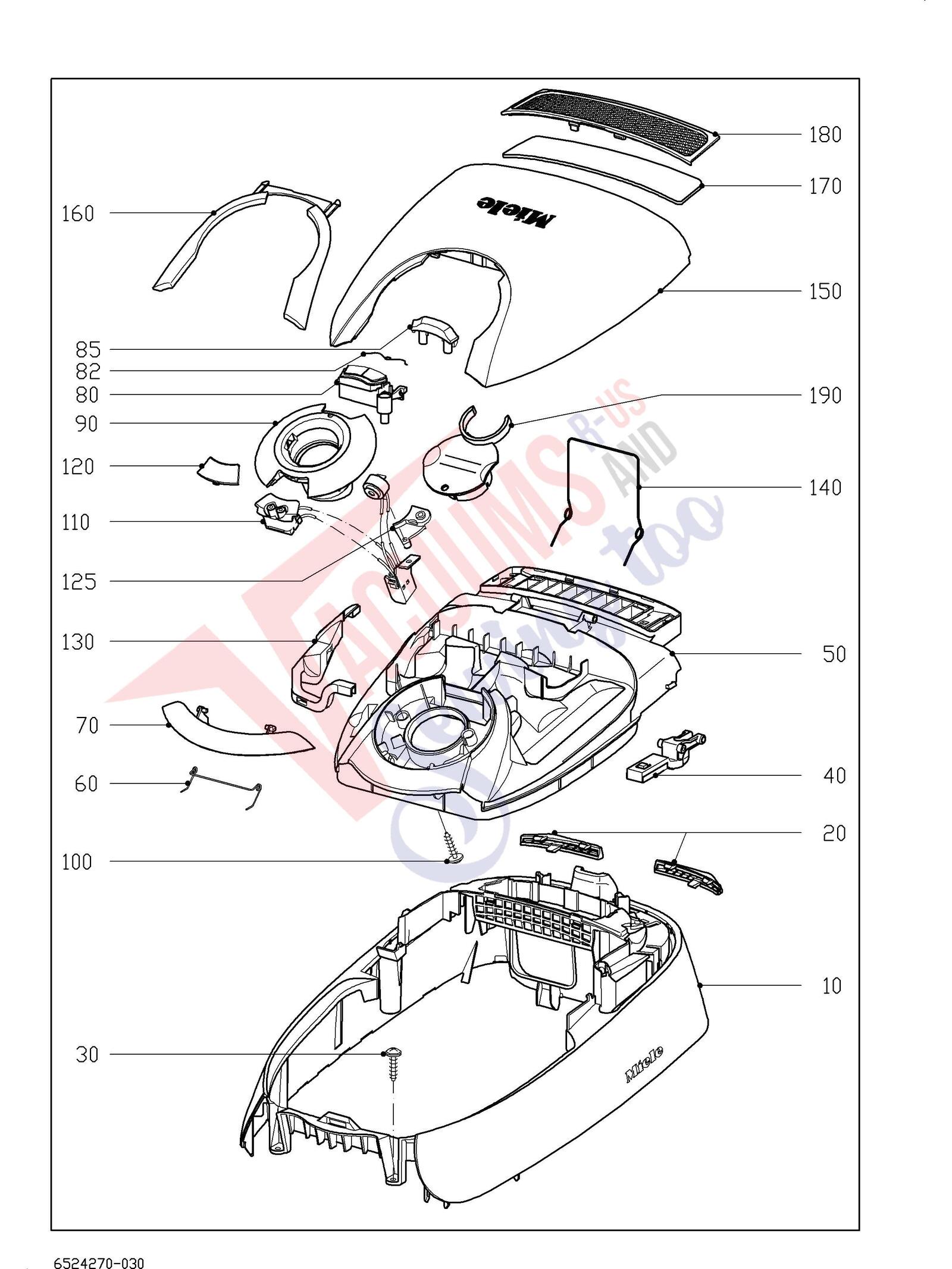

| # | Part image | Description | SKU | Price |
| xx | No Image | --Raised Head Screw 4,0X18 Torx T20 | 6238630 | $2.30Read more |
| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+20 | | Genuine Miele Cover frame Autumn red | 6515160 | $0.00Read more |
| 10+20 | | Genuine Miele Cover frame deep black | 6515170 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Royal blue | 6515180 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Saffron yellow | 7187290 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Tayberry red | 7147140 | $93.60Read more |
| 10+20 | No Image | Cover Frame Tealite Blue Met. | 6515230 | $129.00Read more |
| 10+20 | | Genuine Miele Cover frame Steel-blue metallic | 7904970 | $120.70Read more |
| 10+20 | | Genuine Miele Cover frame black magic | 6895590 | $120.70Read more |
| 10+20 | Not Available | Cover frame Midnight Purple For Miele S5411 S5411 | 7967220 | Not Available |
| 20 | | Genuine Miele Strip Left and right | 6515290 | $2.30Read more |
| 30 | Not Available | undefined For Miele S5411 S5411 | noop | Not Available |
| 40 | | Genuine Miele Hinge 2 Pcs. | 6515311 | $20.60Read more |
| 50 | | Genuine Miele Casing top S5xxx | 11997180 | $98.00Read more |
| 60 |  | Genuine Miele Torsion spring Lock | 6079920 | $3.60Add to cart |
| 70 |  | Genuine Miele Lock | 6079890 | $3.60Read more |
| 80-85 |  | Genuine Miele Change filter ind. SF TYPE 1 USA/J | 10292782 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 82 | | Genuine Miele Torsion spring Change filter ind. | 5463553 | $2.30Read more |
| 85 |  | Genuine Miele interlock | 6122782 | $2.50Read more |
| 90 | | Genuine Miele Ring alu-silver S5500 | 6426520 | $20.60Read more |
| 100 | Not Available | undefined For Miele S5411 S5411 | noop | Not Available |
| 110 | Not Available | Flush socket outlet S5400 For Miele S5411 S5411 | 6873422 | Not Available |
| 120 | | Genuine Miele Fascia panel alu-silver | 6217170 | $10.70Read more |
| 125 | No Image | Air Shield Ring | 6141491 | $2.50Read more |
| 130 | No Image | Cover Strip Casing Top | 6128230 | $4.14Read more |
| 140 |  | Genuine Miele Torsion spring Lid | 6409260 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 150+160 | | Genuine Miele Lid Autumn red | 6473651 | $52.20Read more |
| 150+160 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 150+160 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 150+160 | | Genuine Miele Lid Tayberry red | 7147151 | $52.20Read more |
| 150+160 | | Genuine Miele Lid Saffron yellow | 7187281 | $52.20Read more |
| 150+160 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 150+160 | | Genuine Miele Lid Midnight Purple | 7967230 | $62.00Read more |
| 150+160 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 150+160 | | Genuine Miele Lid black magic | 6896051 | $62.00Read more |
| 160 | | Genuine Miele Fascia panel Lid | 6126401 | $4.90Read more |
| 180+170 | | Genuine Miele Air shield alu-silver | 6835790 | $27.90Read more |
| 190 | Not Available | Hygiene cap For Miele S5411 S5411 | 6622030 | Not Available |

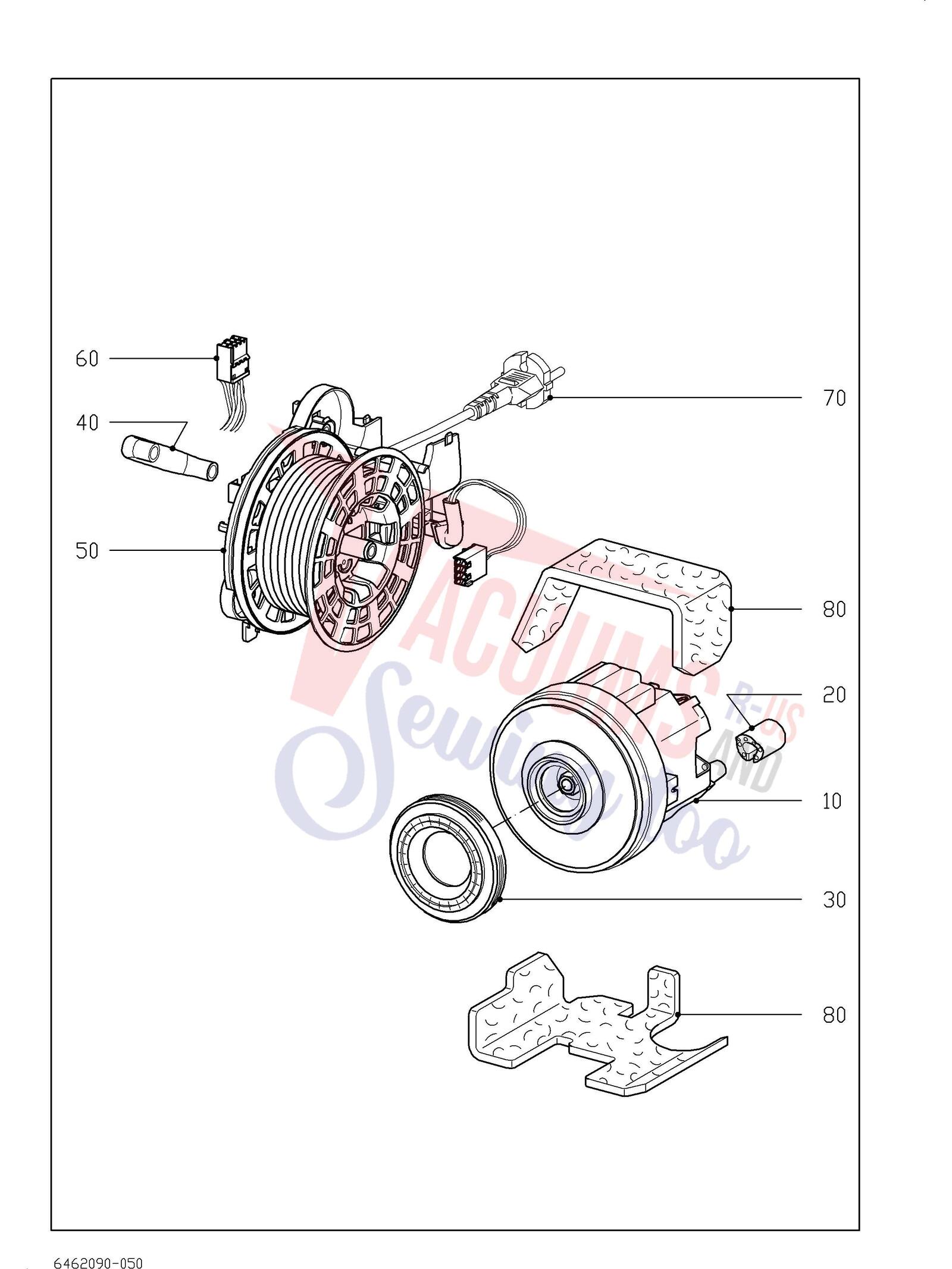

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Fan Mrg412-42/2 230V | 7890582 | $95.04Read more |
| 20 | | Genuine Miele Rubber cushion 2 Pcs. | 6207001 | $20.60Read more |
| 30 | | Genuine Miele Bearing ring | 7752870 | $15.00Read more |
| 30 | | Genuine Miele Bearing ring | 5964034 | $15.00Read more |
| 40 | | Genuine Miele Hose Nebenluft | 7196500 | $10.70Read more |
| 50-70 | | Genuine Miele Cable reel S5000 6,5m EU/PRC | 9931334 | $109.00Read more |
| 60 |  | Genuine Miele Connecting cable S5000 100-120V | 6437871 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | -Supply Cable 6,65M 1Qmm 230V | 5766340 | $61.00Read more |
| 80 | | Genuine Miele Damping plate | 6518591 | $20.60Read more |

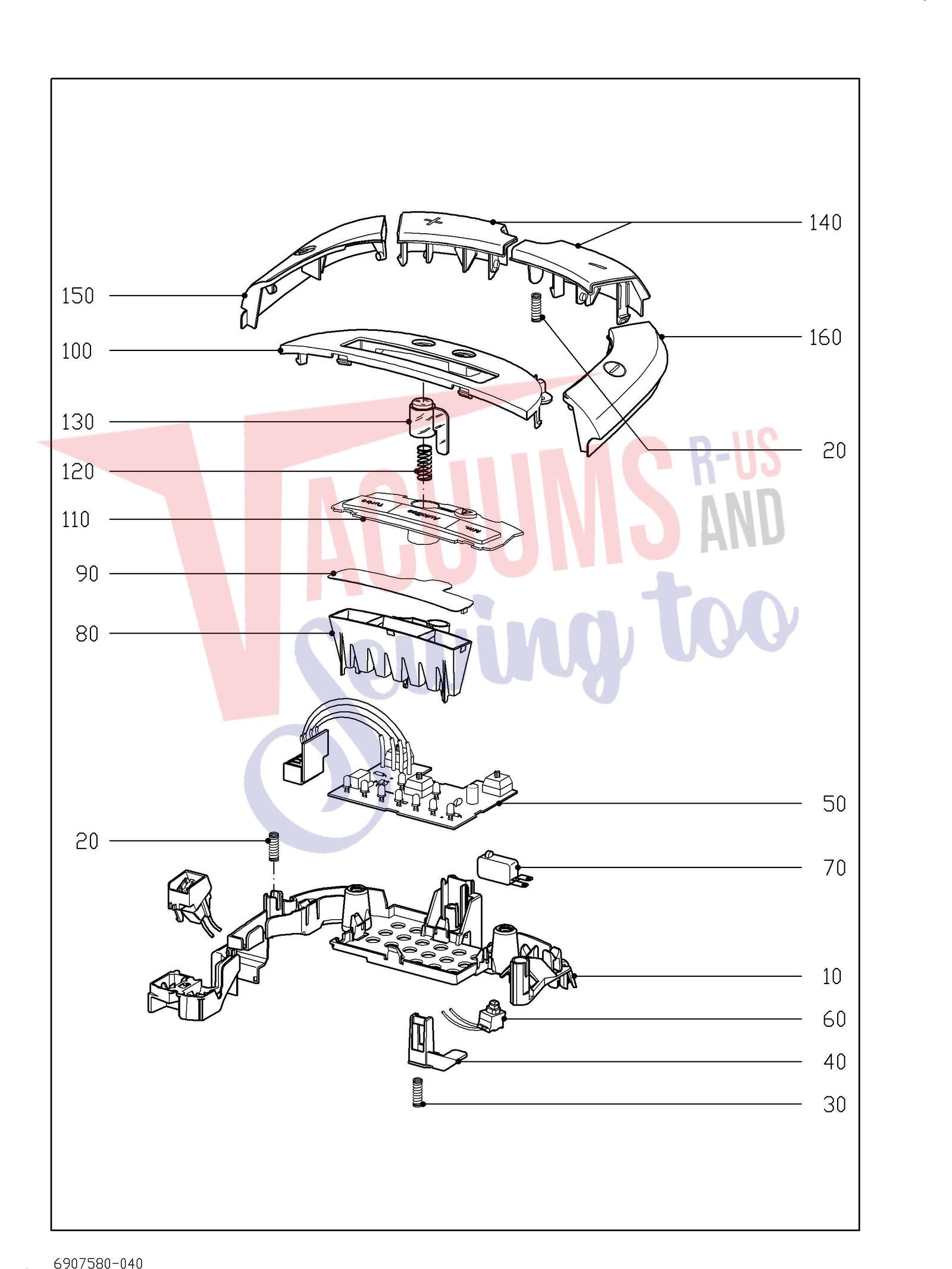

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Bracket Electronic unit | 6134771 | $18.80Read more |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30 | | Genuine Miele Spring | 3982390 | $3.60Read more |
| 40 | No Image | -Pushbutton S5000 | 6138870 | $2.50Read more |
| 50+60 | | Genuine Miele Electronic unit EDW5412 | 7493761 | $170.80Read more |
| 60 |  | Miele On/Off Switch for Canisters 1 Pole PN 09023231 4367102 | WP10439 | Original price was: $18.00.$12.99Current price is: $12.99.Read more |
| 70 | | Genuine Miele Switch 250V | 4487791 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Reflector S5400 | 6935120 | $17.25Read more |
| 90 | Not Available | Fascia panel Reflector For Miele S5411 S5411 | 6165240 | Not Available |
| 100-130 | No Image | Control Panel Autumn Red | 7204010 | $56.00Read more |
| 100-130 | No Image | Control Panel Royal Blue | 7191360 | $56.00Read more |
| 100-130 | No Image | Control Panel Saffron Yellow | 7472090 | $56.00Read more |
| 100-130 | No Image | Control Panel Tealite Blue Met. | 7266880 | $66.00Read more |
| 100-130 | | Genuine Miele Control panel Midnight Purple | 7967240 | $62.00Read more |
| 100-130 | | Genuine Miele Control panel Steel-blue metallic | 7904960 | $62.00Read more |
| 100-130 | No Image | Control Panel Tayberry Red | 9139610 | $56.00Read more |
| 100-130 | Not Available | Control panel deep black For Miele S5411 S5411 | 7191370 | Not Available |
| 110 | No Image | -Viewing Screen Autoeco | 6944160 | $21.62Read more |
| 120 | | Genuine Miele Spring | 5457311 | $9.70Read more |
| 130 | | Genuine Miele Push button | 6084420 | $9.70Read more |
| 140 | | Genuine Miele Pushbutton Left and right | 6518600 | $33.80Read more |
| 150 | | Genuine Miele Foot switch alu-silver SF printed | 11168540 | $22.00Add to cart |
| 160 | | Genuine Miele Foot switch alu-silver SF print | 11168551 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

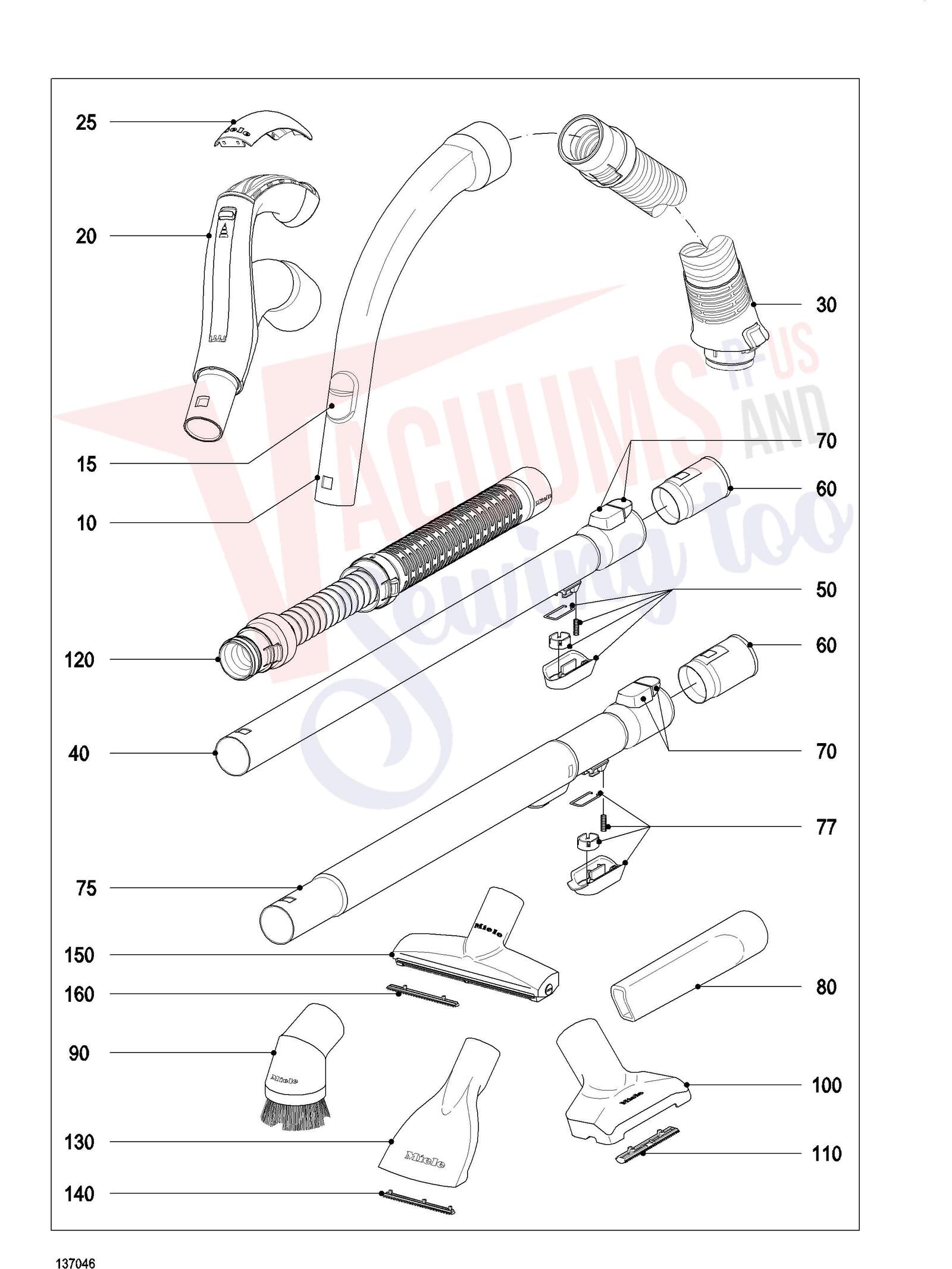

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele S5411 S5411 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele S5411 S5411 | noop | Not Available |
| xx | Not Available | No spare part For Miele S5411 S5411 | noop | Not Available |
| xx | Not Available | For Miele S5411 S5411 | noop | Not Available |
| 10+15 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 20+25 | | Genuine Miele Tubular handle S4, S5 | 6163661 | $0.00Read more |
| 25 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Suction Hose Silver-Coloured 1,8M | 6614660 | $53.00Read more |
| 40-70 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 40-70 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 40-70 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 40-70 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 40-70 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 50 | No Image | -Push Button Round | 6151391 | $15.53Read more |
| 60 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60+70 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60-77 | | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 77 | No Image | -Push Button Round | 6151391 | $15.53Read more |
| 80 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 80 | | Genuine Miele ST Crevice nozzle SFD10 300mm | 11607350 | $33.00Read more |
| 80 |  | Available ReconditionedReconditioned Genuine Miele ST Crevice nozzle SFD10 300mm More Product Details | 11607350R | $25.80Add to cart |
| 90 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| 150+160 | No Image | Genuine Miele Upholstery Nozzle SPD10 | 7252190 | $0.00Read more |
| 150+160 | No Image | Genuine Miele Upholstery Nozzle SPD10 | 7252190 | $0.00Read more |
| 160 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
Report errors on this page HERE
