Parts list and schematic diagram for Miele Models: S 218, S218 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.

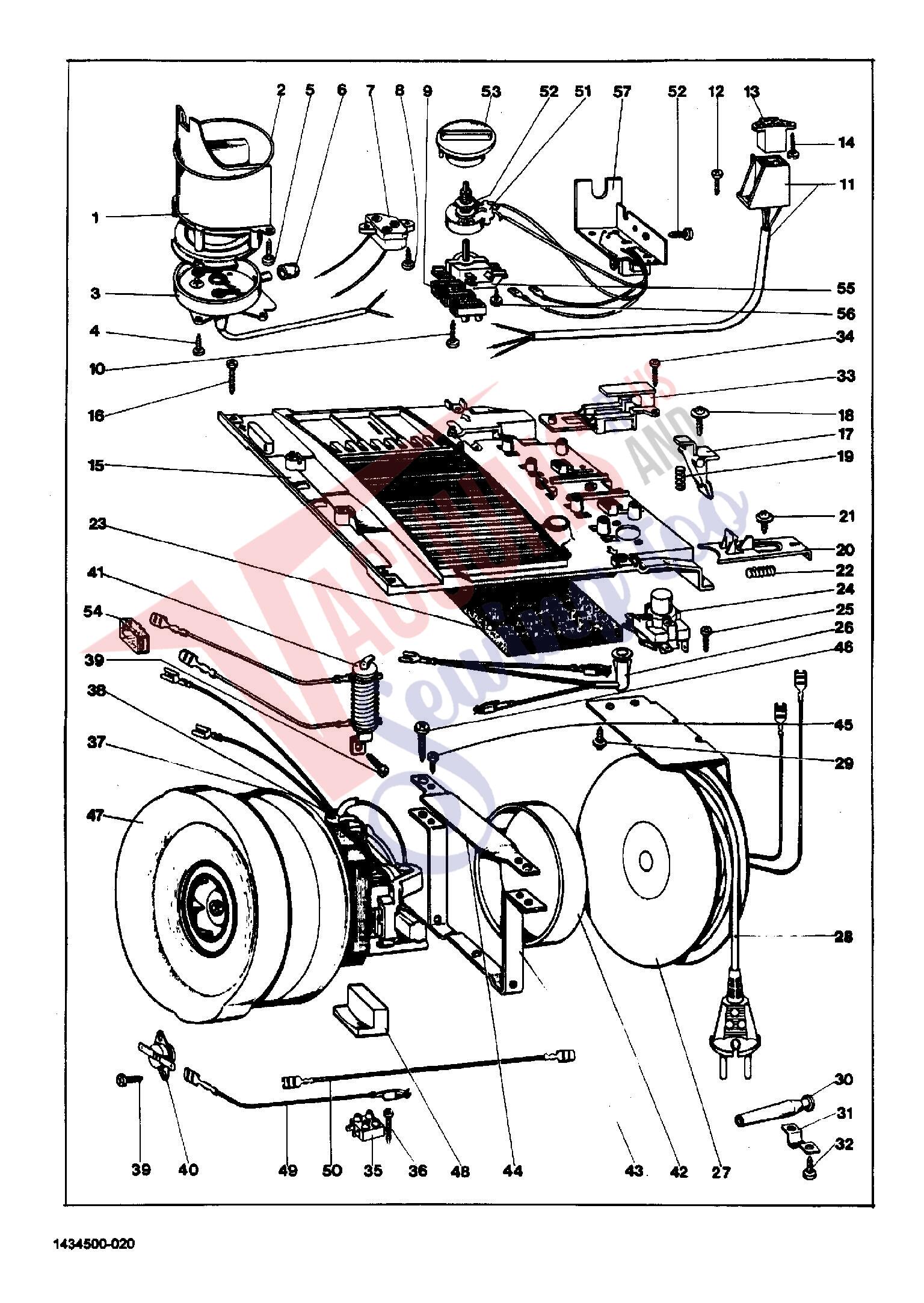

| # | Part image | Description | SKU | Price |
| -49 | Not Available | Flexible wire For Miele S 218 S218 | 1054210 | Not Available |
| -48 | Not Available | Cushion For Miele S 218 S218 | 1472620 | Not Available |
| -47 | Not Available | Sealing ring For Miele S 218 S218 | 1500930 | Not Available |
| -44 | Not Available | undefined For Miele S 218 S218 | 1472600 | Not Available |
| -38 | Not Available | Interf.sup.capacit. 0,1UF 250V For Miele S 218 S218 | 1488030 | Not Available |
| -37 | No Image | Fan 220V | 1473330 | $329.00Read more |
| -19 |  | Genuine Miele Spring | 29289 | $2.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| -17 | Not Available | Brake lever For Miele S 218 S218 | 1155630 | Not Available |
| -11 | Not Available | Connecting cable 2 pole For Miele S 218 S218 | 1348150 | Not Available |
| -9 | Not Available | Clamping strip 2 pole For Miele S 218 S218 | 1699010 | Not Available |
| -7 | Not Available | Flush socket outlet 2 pole For Miele S 218 S218 | 1583050 | Not Available |
| -3 | Not Available | undefined For Miele S 218 S218 | 1021071 | Not Available |
| -2 | Not Available | undefined For Miele S 218 S218 | 92606 | Not Available |
| -1 | Not Available | undefined For Miele S 218 S218 | 92603 | Not Available |
| xx | Not Available | undefined For Miele S 218 S218 | 75427 | Not Available |
| xx | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| xx | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| xx | | Genuine Miele  | 1071710 | $3.60Read more |
| xx | No Image | Dust Channel | 1472970 | $63.00Read more |
| xx | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| xx | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| xx | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| xx | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| xx | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| xx | Not Available | --Raised head screw 4,8X13 DIN 7981 For Miele S 218 S218 | 10607 | Not Available |
| xx | Not Available | Mounting plate For Miele S 218 S218 | 913971 | Not Available |
| xx | Not Available | --Raised head screw DIN7981 BZ4,2X13 Z For Miele S 218 S218 | 64394 | Not Available |
| 8 | Not Available | undefined For Miele S 218 S218 | noop | Not Available |
| 13 | Not Available | Casing 4 Pole For Miele S 218 S218 | 94918 | Not Available |
| 18 | Not Available | undefined For Miele S 218 S218 | noop | Not Available |
| 20 | Not Available | Slide For Miele S 218 S218 | 92634 | Not Available |
| 21 | Not Available | undefined For Miele S 218 S218 | noop | Not Available |
| 22 | No Image | Spring | 97459 | $2.30Read more |
| 22 | No Image | Spring | 2733370 | $2.30Read more |
| 23 | Not Available | Damping plate For Miele S 218 S218 | 92640 | Not Available |
| 24 | Not Available | Switch 250V/10A For Miele S 218 S218 | 1002130 | Not Available |
| 27+28 | Not Available | Cable reel For Miele S 218 S218 | 92630 | Not Available |
| 28 | Not Available | undefined For Miele S 218 S218 | 1026520 | Not Available |
| 29 | Not Available | undefined For Miele S 218 S218 | noop | Not Available |
| 45 | | Genuine Miele Raised head screw 3,5X9,5 | 20724 | $2.30Read more |
| 46 | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 1023090 | $2.30Read more |
| 49 | Not Available | Flexible wire For Miele S 218 S218 | 96799 | Not Available |

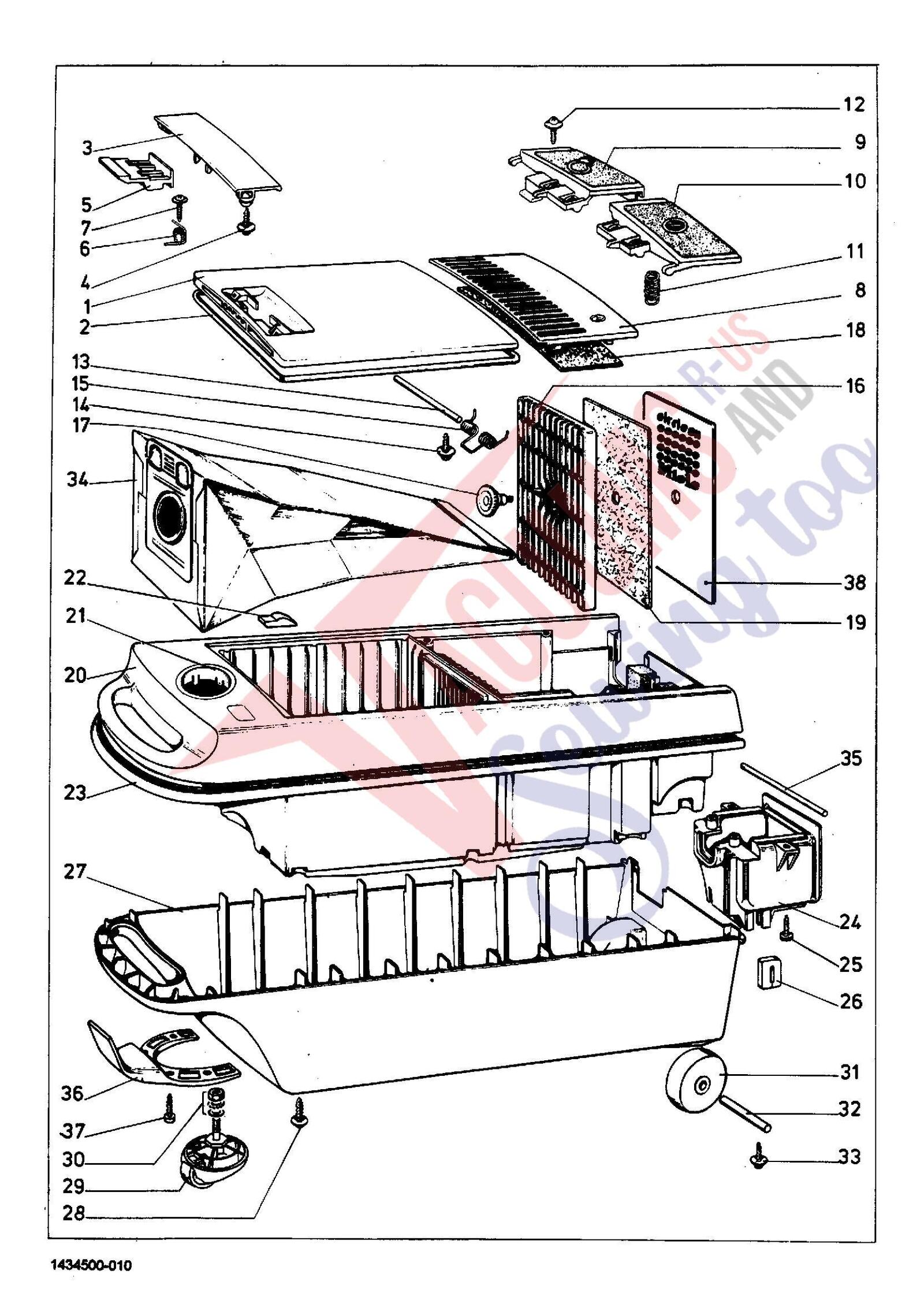

| # | Part image | Description | SKU | Price |
| -21 | Not Available | Slide sleeve black For Miele S 218 S218 | 1204330 | Not Available |
| xx | No Image | Cloth Filter Bag | 1058630 | $109.00Read more |
| xx | No Image | Lock | 1058640 | $22.00Read more |
| xx | Not Available | undefined For Miele S 218 S218 | 1155940 | Not Available |
| xx | No Image | Dust Compart.Lid Bamboo Green | 1472920 | $109.00Read more |
| xx | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| xx | | Genuine Miele Raised head screw 2,9X6,5 | 66224 | $2.30Read more |
| xx | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| xx | | Genuine Miele Raised head screw Zinc-plated 4,2X13 | 106042 | $2.10Read more |
| xx | | Genuine Miele Star washer A 6,4 | 10540 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | No Image | FRAME, FILTER COMPACT Part Number: 267731 for Bosch | 267731 | $6.21Read more |
| xx | Not Available | undefined For Miele S 218 S218 | 92298 | Not Available |
| xx | Not Available | --Spring washer 6,4X16X0,5 For Miele S 218 S218 | 1133100 | Not Available |
| 2 | Not Available | Seal For Miele S 218 S218 | 92618 | Not Available |
| 3 | Not Available | undefined For Miele S 218 S218 | 95198 | Not Available |
| 5 | Not Available | undefined For Miele S 218 S218 | 92620 | Not Available |
| 6 | Not Available | undefined For Miele S 218 S218 | 92646 | Not Available |
| 8 | Not Available | Filter cap lime green For Miele S 218 S218 | 92621 | Not Available |
| 9 | Not Available | Foot switch right For Miele S 218 S218 | 91398 | Not Available |
| 10 | Not Available | Foot switch left For Miele S 218 S218 | 91399 | Not Available |
| 11 | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 11 | Not Available | Spring For Miele S 218 S218 | 97061 | Not Available |
| 13 | Not Available | Hinge bolt For Miele S 218 S218 | 92628 | Not Available |
| 15 | Not Available | Torsion spring For Miele S 218 S218 | 92629 | Not Available |
| 16 | Not Available | Filter frame For Miele S 218 S218 | 87403 | Not Available |
| 18 | No Image | Air Outlet Filter 3 S220 | 3215540 | $30.00Read more |
| 18+19 | Not Available | Filter 2X3 S220 For Miele S 218 S218 | 1002350 | Not Available |
| 20-22 | No Image | Casing Top Bamboo Green | 1472932 | $299.00Read more |
| 23 | Not Available | Buffer For Miele S 218 S218 | 92615 | Not Available |
| 24 | Not Available | Plug housing Bamboo green For Miele S 218 S218 | 1472960 | Not Available |
| 25 | Not Available | undefined For Miele S 218 S218 | noop | Not Available |
| 26 | Not Available | cable guide For Miele S 218 S218 | 94231 | Not Available |
| 27+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 28 | Not Available | undefined For Miele S 218 S218 | noop | Not Available |
| 29-33 | No Image | Casing Bottom Bamboo Green | 1472940 | $249.00Read more |
| 31 | Not Available | undefined For Miele S 218 S218 | 92613 | Not Available |
| 32 | Not Available | undefined For Miele S 218 S218 | 92614 | Not Available |
| 34 | No Image | Dustbag 1/7 S217 - S226 | 1002342 | $0.00Read more |
| 38 | Not Available | Air-Clean filter 3 S220 For Miele S 218 S218 | 2517330 | Not Available |

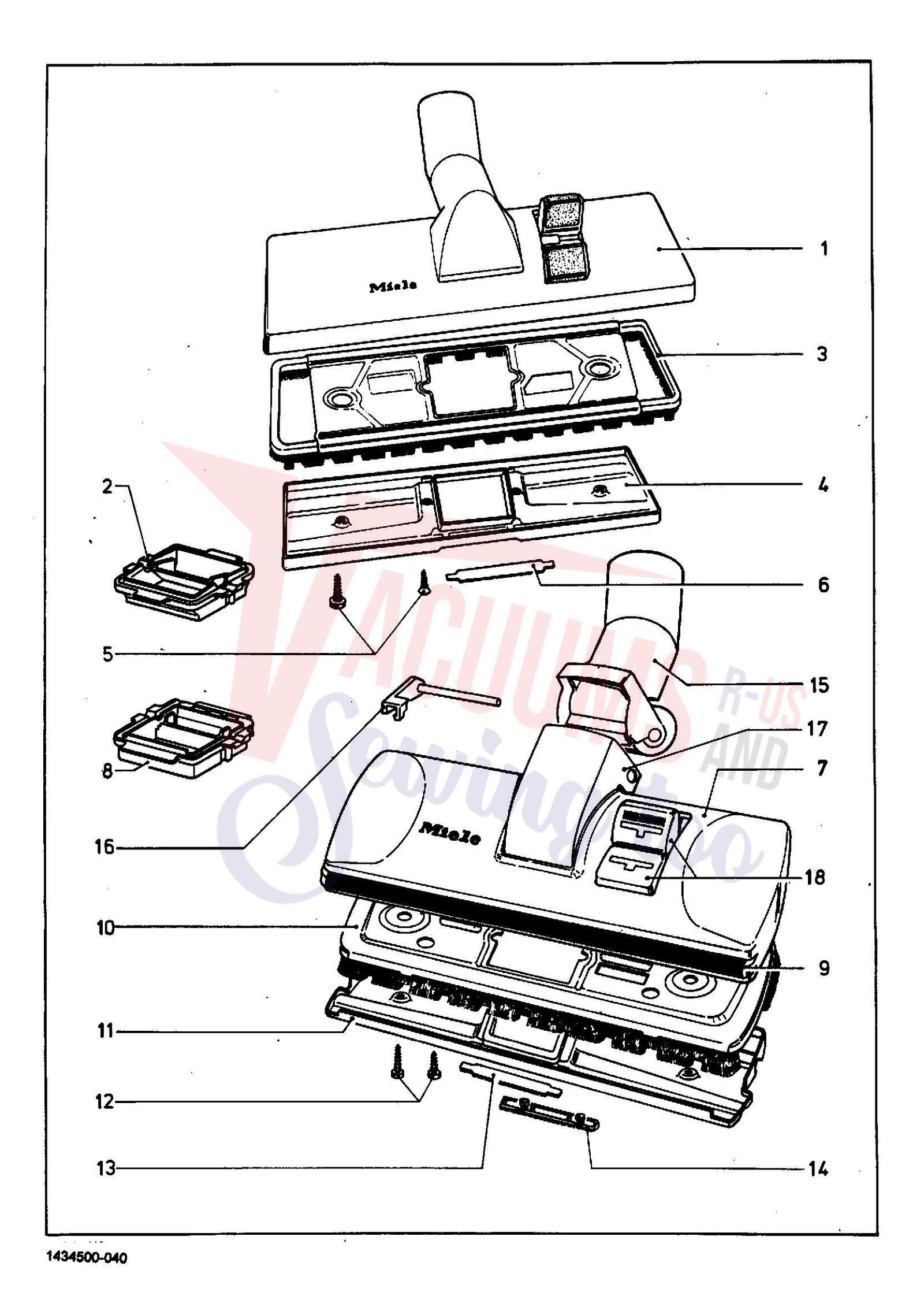

| # | Part image | Description | SKU | Price |
| -11 | Not Available | undefined For Miele S 218 S218 | 1498610 | Not Available |
| -10 | Not Available | undefined For Miele S 218 S218 | 1498620 | Not Available |
| -8 | Not Available | undefined For Miele S 218 S218 | 1498650 | Not Available |
| -7 | Not Available | undefined For Miele S 218 S218 | 1498640 | Not Available |
| xx | Not Available | For Miele S 218 S218 | noop | Not Available |
| xx | Not Available | FOR FLOOR ATTACHMENT: For Miele S 218 S218 | noop | Not Available |
| xx | Not Available | NO. 1340630 AND 1970730 ILLUST.NR. 7-18 For Miele S 218 S218 | noop | Not Available |
| xx | Not Available | NO. 1340631 AND 1970731 ILL.N0 7f8f10-13f15-18 For Miele S 218 S218 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 3,5X16 | 46546 | $2.10Read more |
| xx | Not Available | undefined For Miele S 218 S218 | noop | Not Available |
| 7+8+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 7+8+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 7+8+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 7+8+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 7+8+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 7-9+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 7-9+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 8 | No Image | -Spacer | 1598950 | $15.53Read more |
| 9 | Not Available | undefined For Miele S 218 S218 | 1571870 | Not Available |
| 10 | No Image | -Bristle Supp.Plate | 1229790 | $42.00Read more |
| 10-12+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 10-13+ | Not Available | For Miele S 218 S218 | noop | Not Available |
| 12 | Not Available | undefined For Miele S 218 S218 | noop | Not Available |
| 13 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 14 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 14-18 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 15 | Not Available | undefined For Miele S 218 S218 | 1498630 | Not Available |
| 15+16 | No Image | -Linkage Black/Brown | 1448961 | $66.00Read more |
| 15+16 | No Image | -Linkage Lava Grey | 2218010 | $66.00Read more |
| 16 | No Image | -Shaft Black/Brown | 1684721 | $12.00Read more |
| 16 | No Image | -Shaft Lava Grey | 1970770 | $12.00Read more |
| 17 | No Image | -Suction Channel Black | 2142660 | $47.00Read more |
| 17 | Not Available | undefined For Miele S 218 S218 | 2142670 | Not Available |
| 17+18 | No Image | -Top Lava Grey | 1970751 | $76.00Read more |
| 18 | No Image | -Foot Switch Black | 2276320 | $12.31Read more |
| 18 | No Image | -Foot Switch Lava Grey | 2229520 | $12.31Read more |

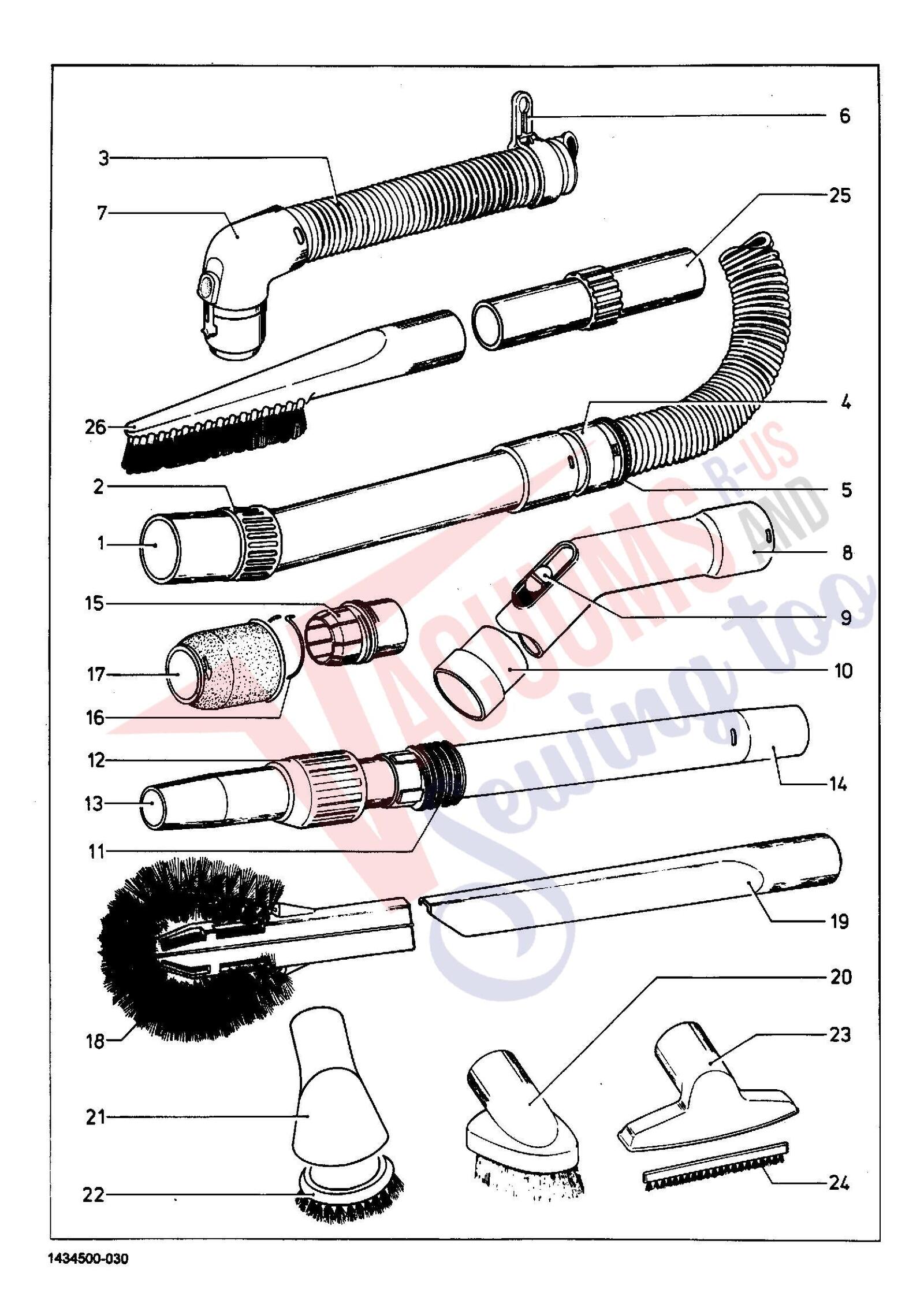

| # | Part image | Description | SKU | Price |
| -7 | Not Available | undefined For Miele S 218 S218 | 1328140 | Not Available |
| -5 | No Image | -Ring Black/Brown | 1327700 | $5.64Read more |
| xx | No Image | -Tubular Handle Lava Grey | 1963340 | $56.00Read more |
| xx | No Image | Suction Hose Lava Grey | 1963250 | $51.00Read more |
| xx | No Image | Suction Hose | 1328150 | $159.00Read more |
| xx | Not Available | FOR PT.NO.1347980 For Miele S 218 S218 | noop | Not Available |
| 4 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 6 | Not Available | undefined For Miele S 218 S218 | 1963220 | Not Available |
| 9 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 21+22 | No Image | Dusting Brush Lava Grey | 1963581 | $17.25Read more |
| 22 |  | Genuine Miele Dusting Brush | 7010301 | $0.00Read more |
| 22 | No Image | Compatible alternateDusting Brush L More Product Details | 12187780 | $24.00Add to cart Special order — allow 2-4 weeks. |
| 22 |  | Aftermarket Miele Round Dusting Brush - Compatible with Miele Part SSP10 and 7010301 | 32161762 | $7.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23+24 | No Image | Upholstery Nozzle Lava Grey | 1347981 | $22.00Read more |
| 24 | Not Available | undefined For Miele S 218 S218 | 1389730 | Not Available |
| 26 | No Image | Universal Brush Lava Grey | 2118010 | $35.70Read more |
