Parts list and schematic diagram for Miele Models: COMPLETE C2 SFAAO, SFAA0 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

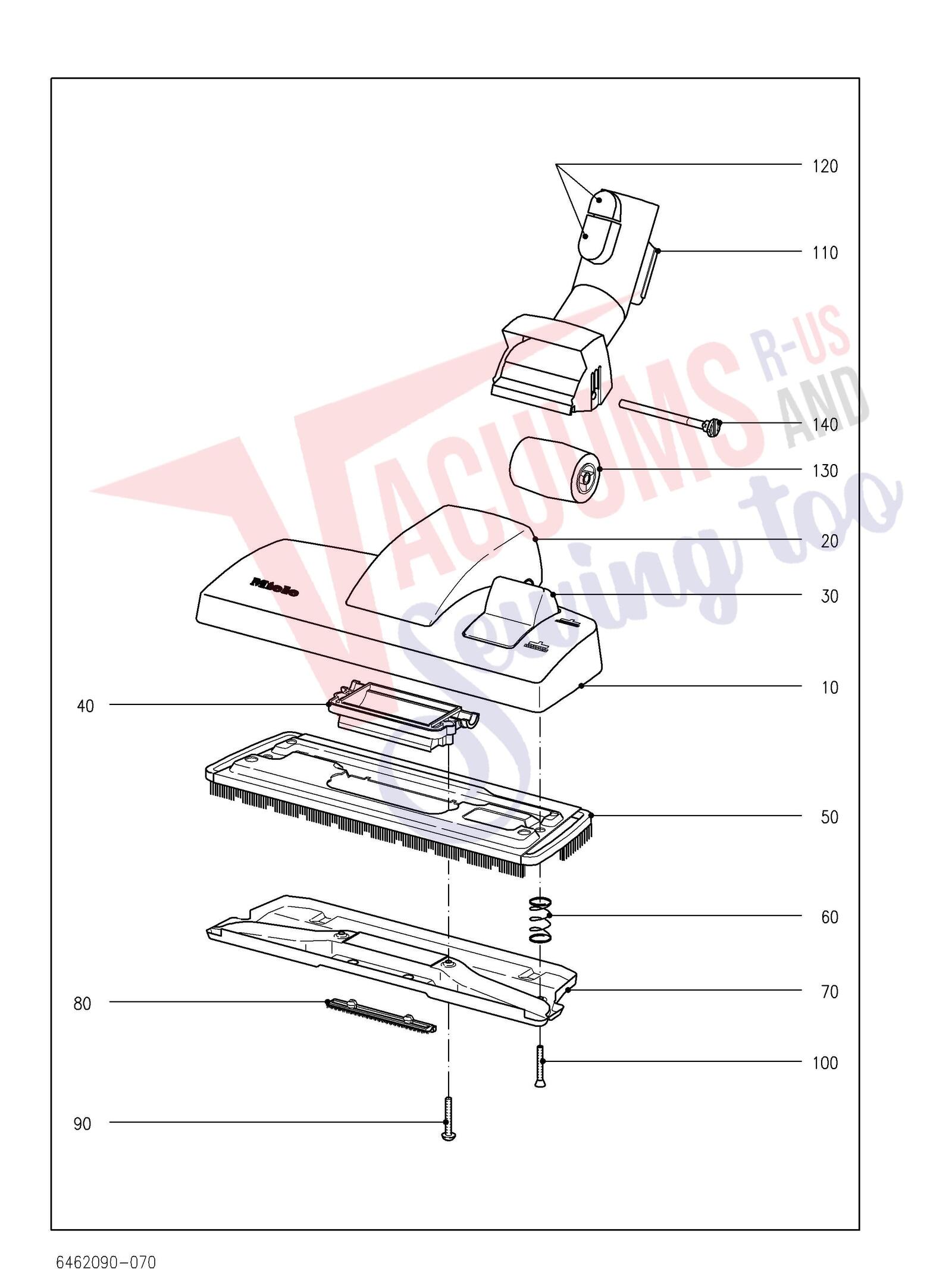

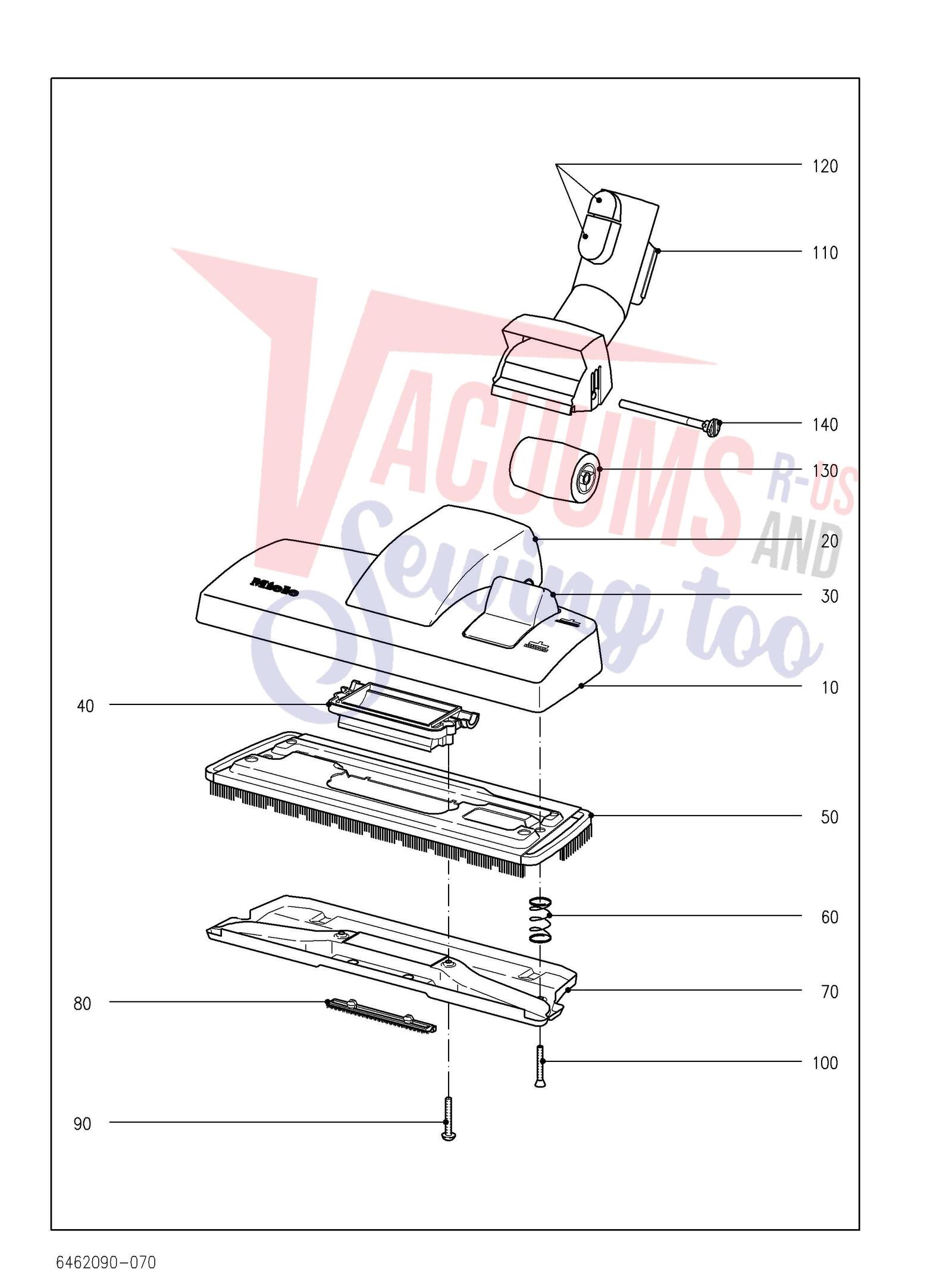

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 For Miele COMPLETE C2 SFAAO SFAA0 | 6223980 | Not Available |
| 10-140 |  | Miele AllTeQ Floor Head for Hard Floors and Carpets SBD 285-3 | 2853 | $98.70Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| 10 | | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 10-140 | Not Available | Floor nozzle Eco SBD 290-3 For Miele COMPLETE C2 SFAAO SFAA0 | 10228750 | Not Available |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 | No Image | -Fixing | 10104390 | $3.90Read more |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 | Not Available | undefined For Miele COMPLETE C2 SFAAO SFAA0 | 10007791 | Not Available |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 | | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

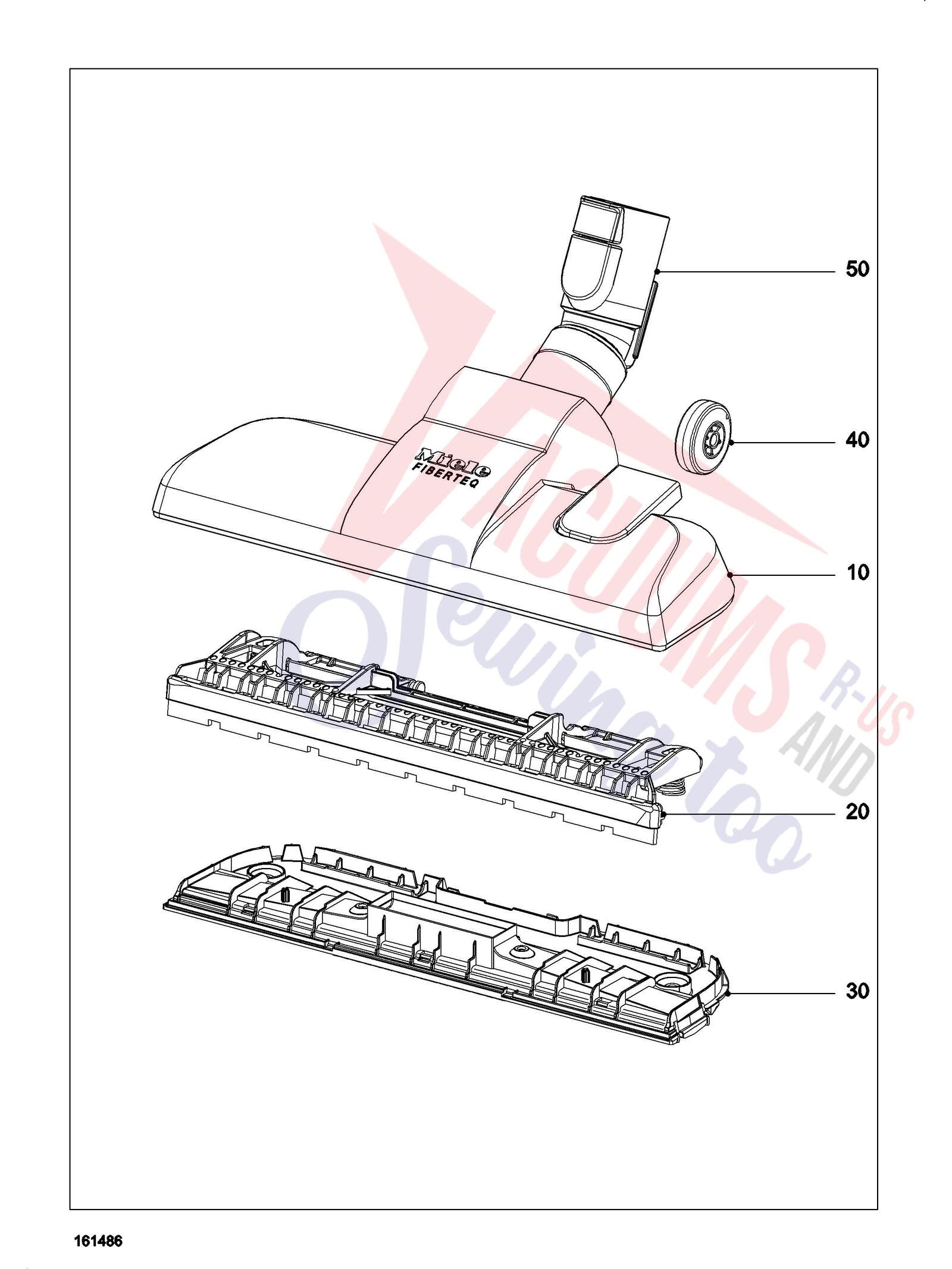

| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele FiberTeQ Floor nozzle SBD 355-3 | 10367830 | $73.53Read more |
| 20 | | Genuine Miele Bristle supp.plate | 7274680 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Lower section SBD350/55-3 | 7274701 | $43.60Read more |
| 40 | | Genuine Miele Support roller 2 Pcs. | 7516120 | $18.80Read more |
| 50 |  | Genuine Miele Swivel joint Component AZ | 12837660 | $33.80Read more |

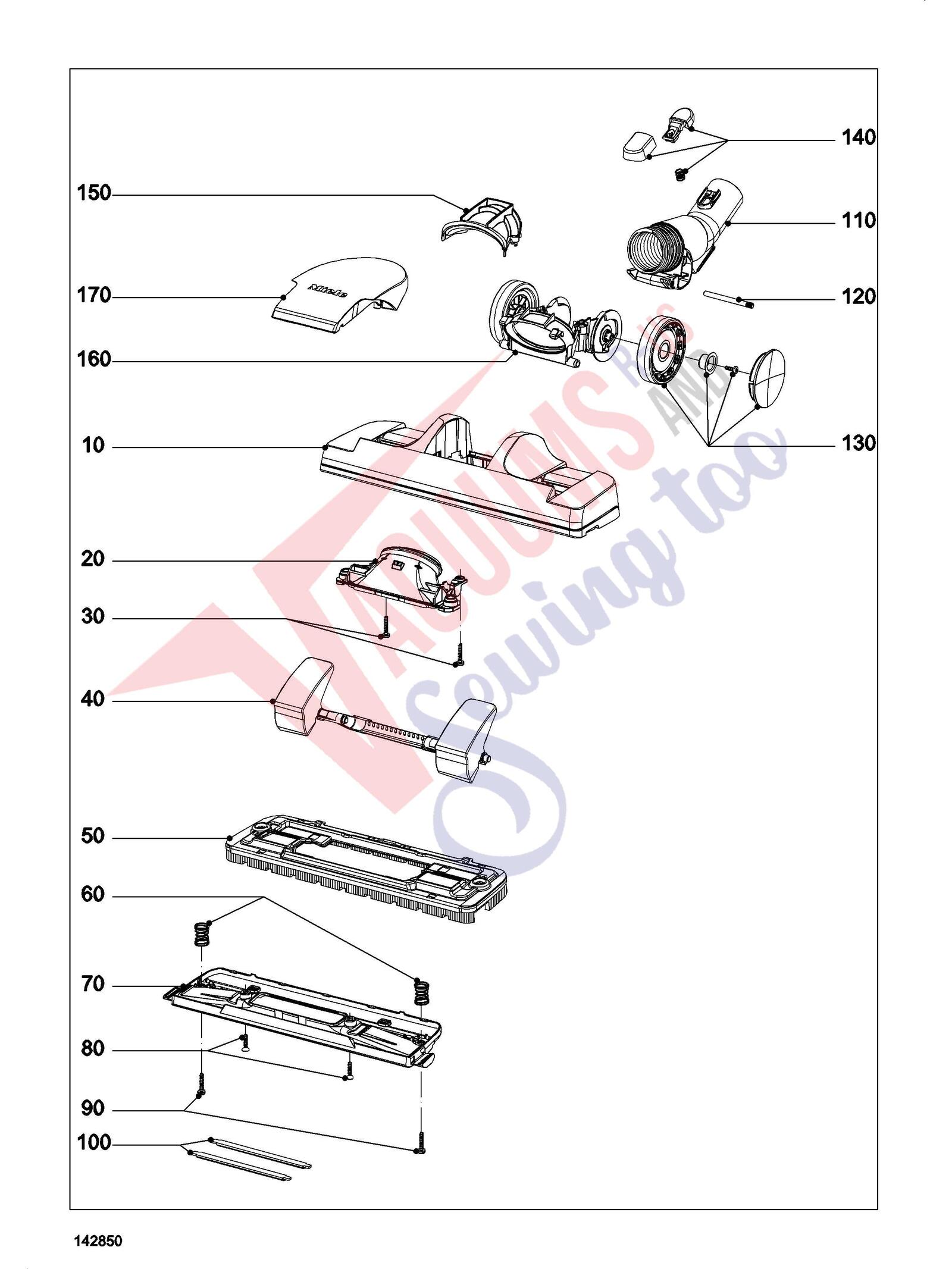

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| 10 | | Genuine Miele Top | 7874810 | $39.50Read more |
| 10-170 | Not Available | Floor nozzle AirTeQ SBD650-3 For Miele COMPLETE C2 SFAAO SFAA0 | 7879500 | Not Available |
| 20 | | Genuine Miele Fixing | 7874800 | $13.50Read more |
| 30 | | Genuine Miele Raised head screw 3,5x18 | 6269840 | $2.30Read more |
| 40 |  | Genuine Miele Foot switch Printed | 7874782 | $33.80Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 7874771 | $52.20Read more |
| 60 | Not Available | Double cone spring For Miele COMPLETE C2 SFAAO SFAA0 | 7874640 | Not Available |
| 70+100 | | Genuine Miele Lower section kpl. | 9010110 | $78.10Read more |
| 80 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 90 | | Genuine Miele Raised head screw 3,5x18 | 6269840 | $2.30Read more |
| 100 | | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+140 |  | Genuine Miele Linkage kpl. | 7874901 | $78.10Read more |
| 120 | | Genuine Miele Shaft | 7874910 | $6.60Read more |
| 130 | No Image | Support Roller | 7898700 | $42.00Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Suction channel top | 7874921 | $10.70Read more |
| 160 | | Genuine Miele Suction channel bottom | 7874823 | $13.50Read more |
| 170 | No Image | Cover Printed | 7874930 | $22.00Read more |

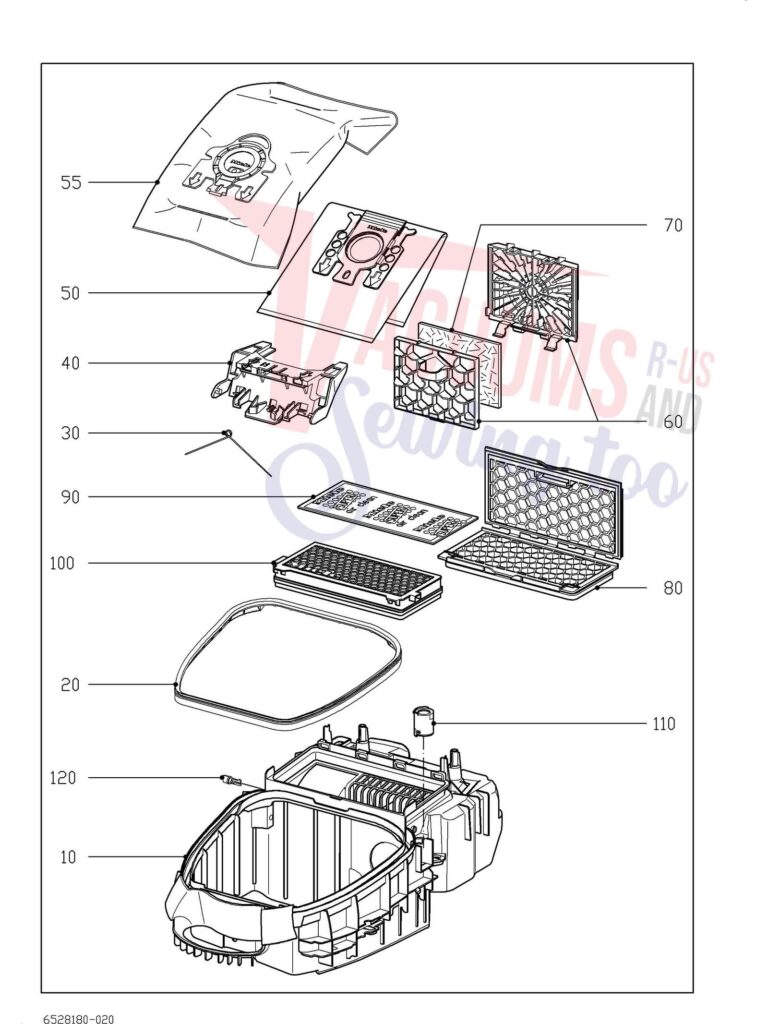

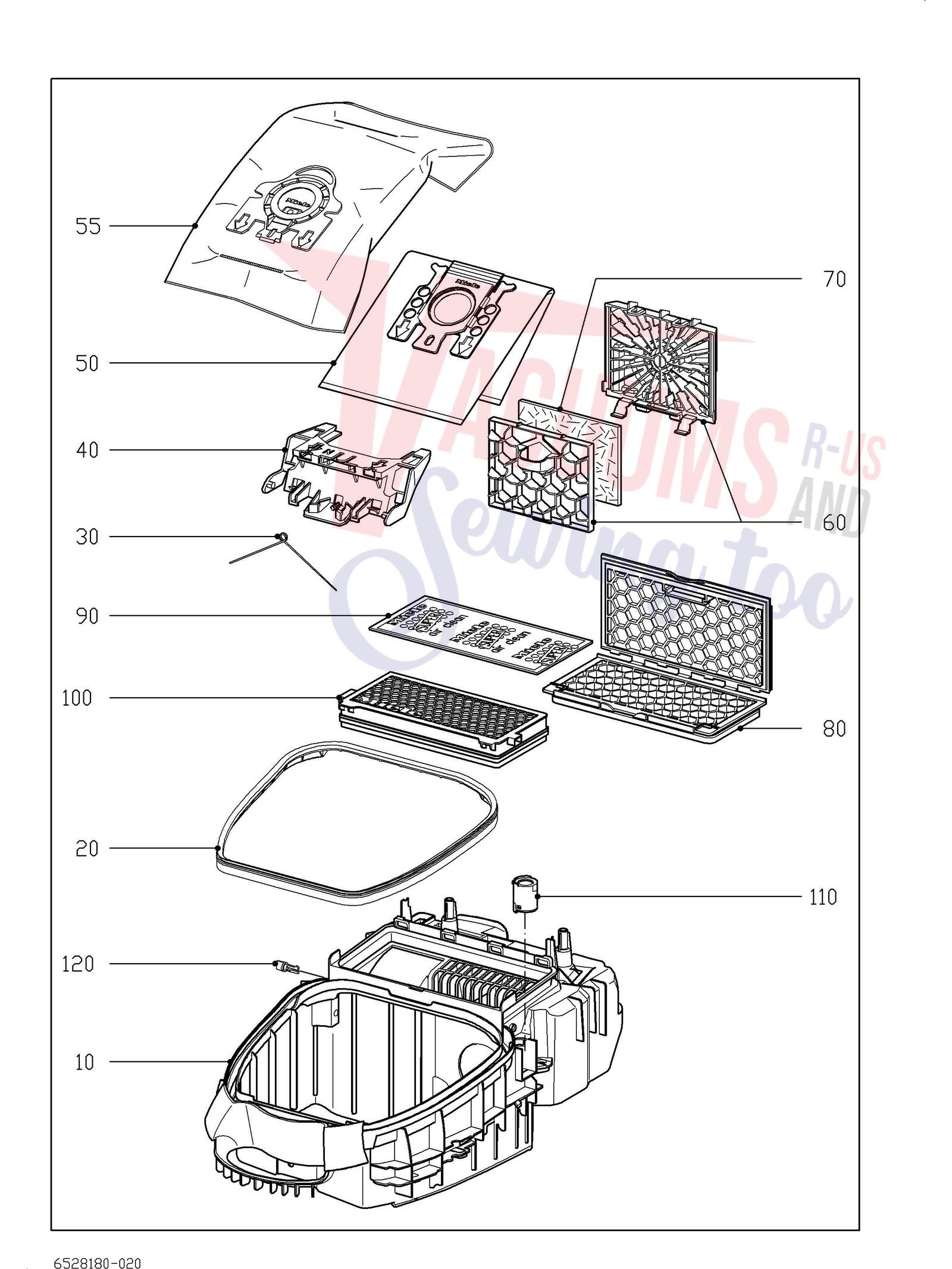

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| 10 | | Genuine Miele Casing insert S5xxx | 12073090 | $71.70Read more |
| 20 | | Genuine Miele Sealing ring | 6141480 | $13.50Read more |
| 30 |  | Genuine Miele Torsion spring Bracket | 6434090 | $2.50Add to cart |
| 40 | | Genuine Miele Bracket vacuum cleaner bag | 6081322 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 55 |  | Aftermarket Miele GN Bags 5pk with Filters | WP10968 | $19.16Add to cart |
| 55 | No Image | Compatible alternateAftermarket Miele GN value package 8 bags aftermarket sf-ha50 filter and pre filter More Product Details | AMGNVP | $44.99Add to cart |
| 55 |  | Miele HEPA Vacuum Bags Type GN - 4pk | 4002515578971 | $25.49Read more |
| 60+70 | | Genuine Miele Filter frame Brilliant blue | 6241011 | $20.60Read more |
| 70 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 |  | Miele ActiveAir Clean Filter SF-AA50 | 9616110 | $49.00Add to cart |
| 100 |  | Miele HEPA AirClean with TimeStrip SF-HA 50 | 4002515317013 | $66.69Read more |
| 100 |  | Aftermarket Miele SF-HA 50 HEPA Filter | 54236401 | $28.59Add to cart |
| 110 | | Genuine Miele End plug Suction control | 6175470 | $2.30Read more |
| 120 | | Genuine Miele End plug | 6938810 | $6.60Read more |

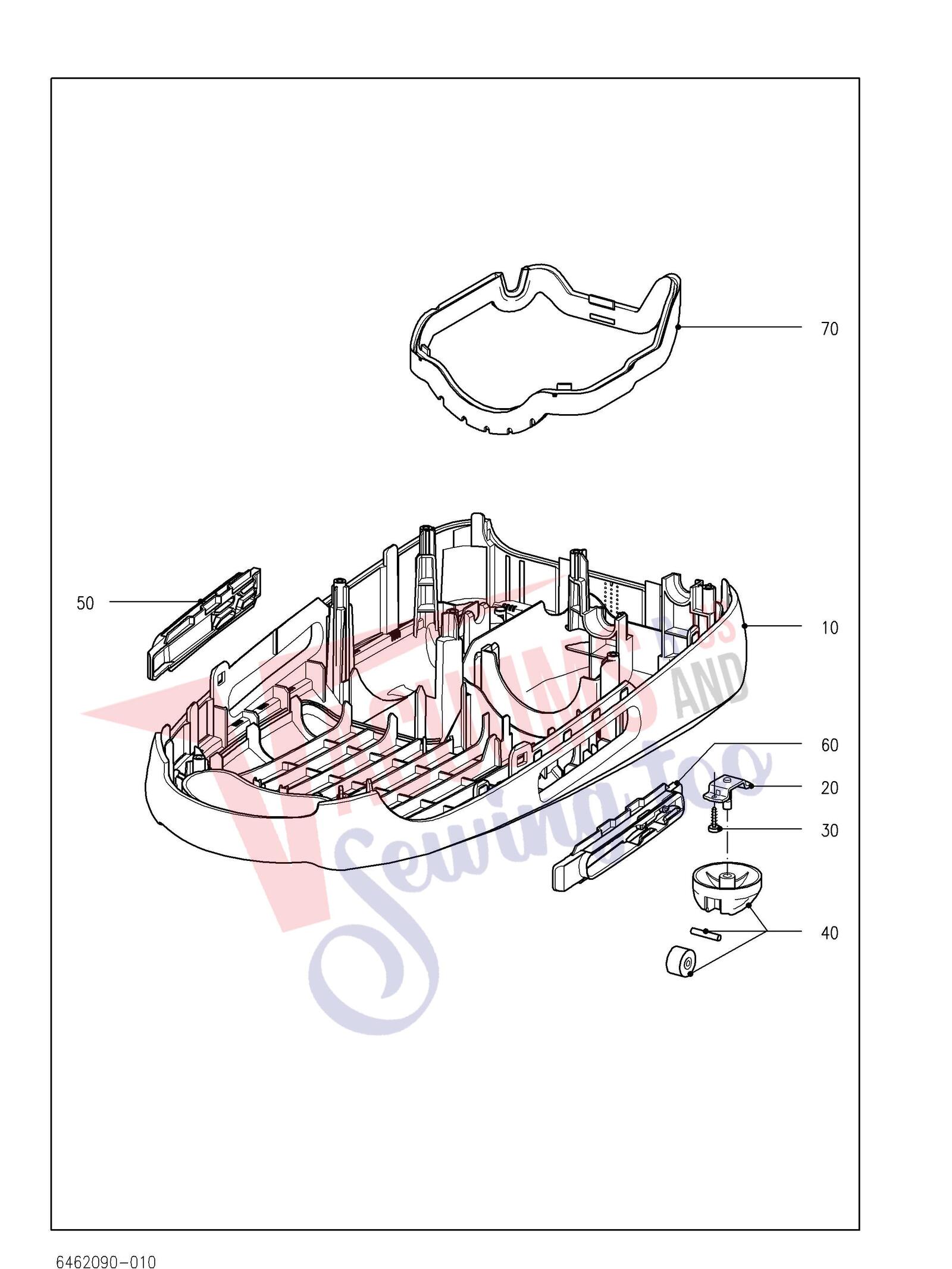

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Casing bottom anthracite | 9895502 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 30 | Not Available | undefined For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| 40 |  | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Suspension right | 6065240 | $4.90Read more |
| 60 | Not Available | undefined For Miele COMPLETE C2 SFAAO SFAA0 | 6065270 | Not Available |
| 70 | No Image | -Seal | 6049591 | $15.00Read more |

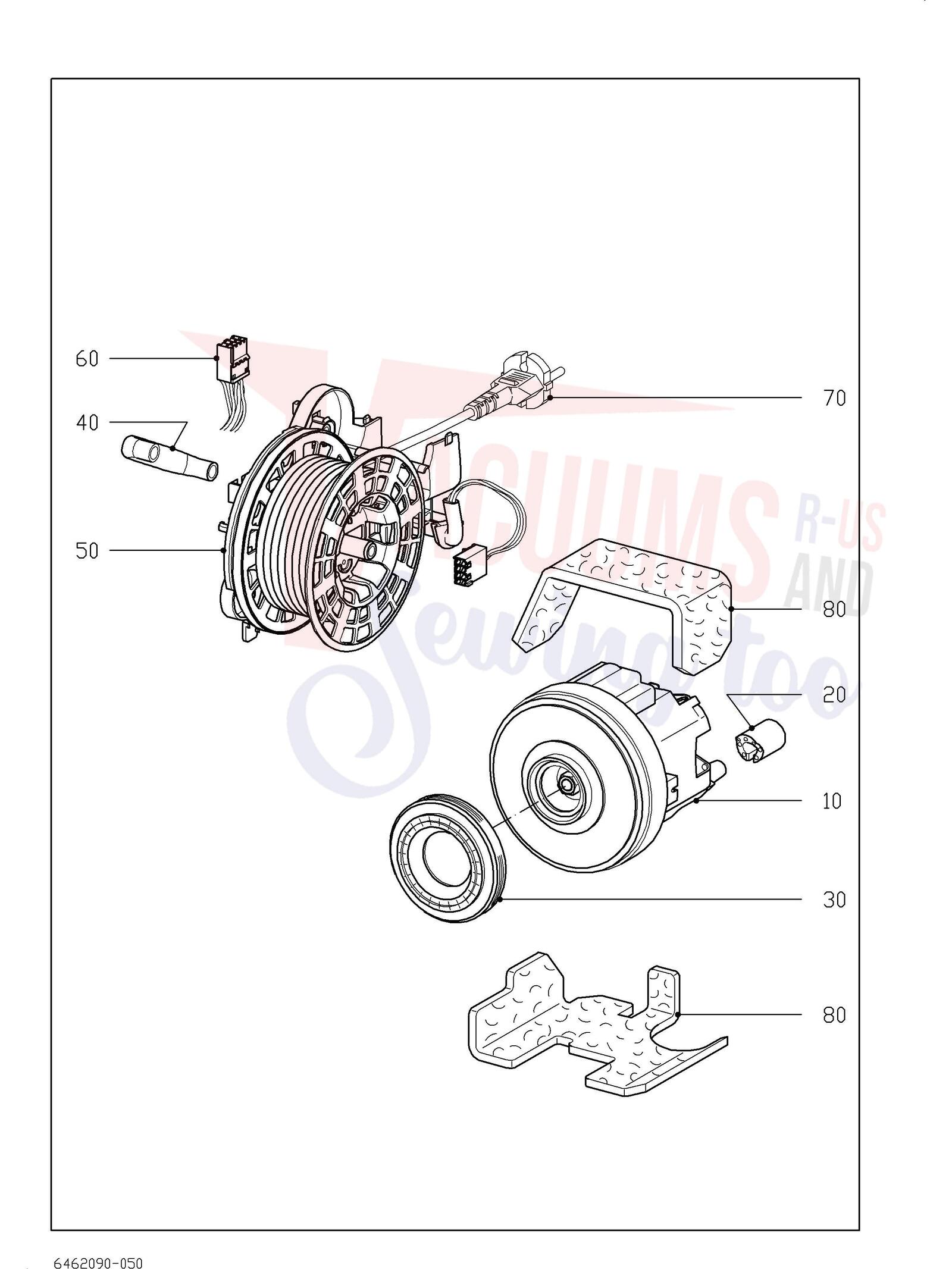

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| 10 | | Genuine Miele Fan Mrg742/81-42/2 120V | 6514630 | $0.00Read more |
| 20 | | Genuine Miele Rubber cushion 2 Pcs. | 6207001 | $20.60Read more |
| 30 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Hose Nebenluft | 7196500 | $10.70Read more |
| 50-70 | | Genuine Miele Cable reel S5000 6,5m 120V USA | 6454293 | $0.00Read more |
| 50-70 | | Genuine Miele Cable reel S5000 6,5m EU/PRC | 9931334 | $109.00Read more |
| 60 |  | Genuine Miele Connecting cable S5000 100-120V | 6437871 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | Not Available | -Supply cable 6,65m 17AWG 120V USA For Miele COMPLETE C2 SFAAO SFAA0 | 5241032 | Not Available |
| 80 | | Genuine Miele Damping plate | 6518591 | $20.60Read more |

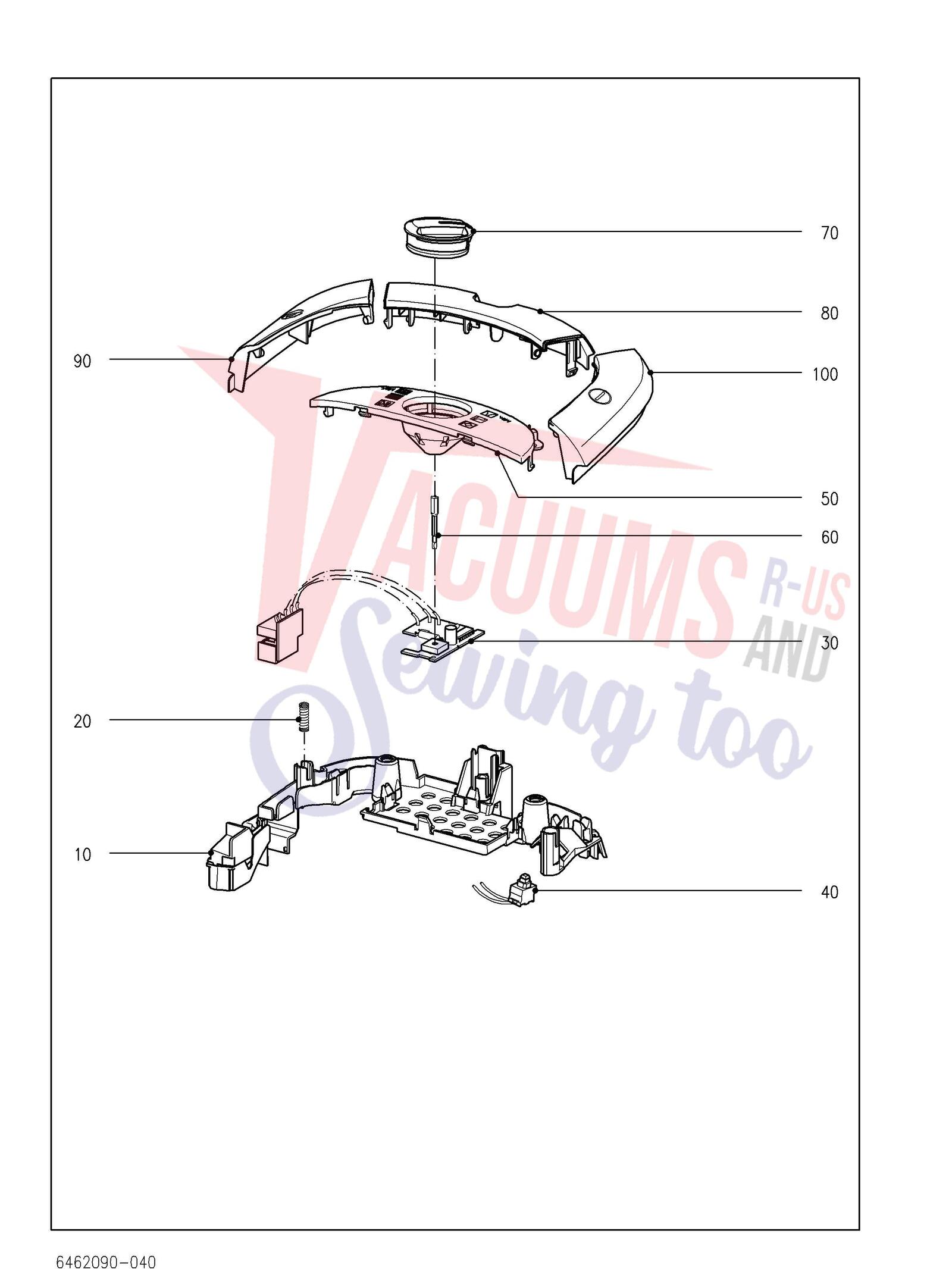

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Bracket Electronic unit | 6134771 | $18.80Read more |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30+40 |  | Genuine Miele Electronic unit EDW5201/81 120V 60Hz | 7322083 | $83.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Miele On/Off Switch for Canisters 1 Pole PN 09023231 4367102 | WP10439 | Original price was: $18.00.$12.99Current price is: $12.99.Read more |
| 50-70 | | Genuine Miele Control panel Melon yellow | 6676190 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Lava grey | 6653560 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Autumn red | 6675020 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Royal blue | 6560950 | $52.20Read more |
| 50-70 | No Image | Control Panel Java Green | 6613240 | $56.00Read more |
| 50-70 | | Genuine Miele Control panel Capri blue | 6653570 | $52.20Read more |
| 50-70 | No Image | Control Panel Koi Orange | 7129400 | $56.00Read more |
| 50-70 | | Genuine Miele Control panel Tayberry red | 7147160 | $52.20Read more |
| 50-70 | No Image | Control Panel Saffron Yellow | 7187310 | $56.00Read more |
| 50-70 | | Genuine Miele Control panel Lotos white | 7434070 | $52.20Read more |
| 50-70 | No Image | Control Panel Black Magic | 6895280 | $56.00Read more |
| 50-70 | | Genuine Miele Control panel Midnight Purple | 7967240 | $62.00Read more |
| 50-70 | | Genuine Miele Control panel Canary yellow | 9478070 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Sprint blue | 9626440 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Chili red | 9895540 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Technoblue | 10810840 | $52.20Read more |
| 50-70 | No Image | Control Panel Graphite Grey | 10810850 | $56.00Read more |
| 50-70 | Not Available | Control panel Obsidian black For Miele COMPLETE C2 SFAAO SFAA0 | 9375380 | Not Available |
| 50-70 | Not Available | Control panel Obsidian black For Miele COMPLETE C2 SFAAO SFAA0 | 9375380 | Not Available |
| 60 | | Genuine Miele Adapter Rotary knob | 5776181 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 70 | Not Available | undefined For Miele COMPLETE C2 SFAAO SFAA0 | 6084040 | Not Available |
| 80 | Not Available | Fascia panel alu-silver For Miele COMPLETE C2 SFAAO SFAA0 | 6084080 | Not Available |
| 90 | | Genuine Miele Foot switch alu-silver SF printed | 11168540 | $22.00Add to cart |
| 100 | | Genuine Miele Foot switch alu-silver SF print | 11168551 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele ST Comfort handle Spotlight | 9385930 | $125.00Add to cart Special order: ships in 2 to 4 weeks |
| xx |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| xx |  | Genuine Miele Battery Holder | 9121950 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| xx | | Genuine Miele Cover Battery | 9121730 | $24.70Read more |
| xx | | Genuine Miele Screw Plastic 3x10 | 9121940 | $2.30Read more |
| xx | Not Available | For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| xx | Not Available | No spare part For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| 10+15 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 20+25 | | Genuine Miele Tubular handle S4, S5 | 6163661 | $0.00Read more |
| 25 | | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 6614661 | $0.00Read more |
| 40-70 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 40-70 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 40-70 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 40-70 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 40-70 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 50 | | Genuine Miele Push button Round | 5780931 | $0.00Read more |
| 50+60 | | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 75+77+ | Not Available | For Miele COMPLETE C2 SFAAO SFAA0 | noop | Not Available |
| 77 |  | Genuine Miele Push button Round | 6151392 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 90 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| 150 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Suction hose MicroSet | 5261770 | $66.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |
| 170 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |
| 180+190 | No Image | Genuine Miele Upholstery Nozzle SPD10 | 7252190 | $0.00Read more |
| 180+190 | No Image | Genuine Miele Upholstery Nozzle SPD10 | 7252190 | $0.00Read more |
| 190 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
Report errors on this page HERE
