Parts list and schematic diagram for Miele Models: COMPLETE C1 SEAGO, SEAG0, Compact C6 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

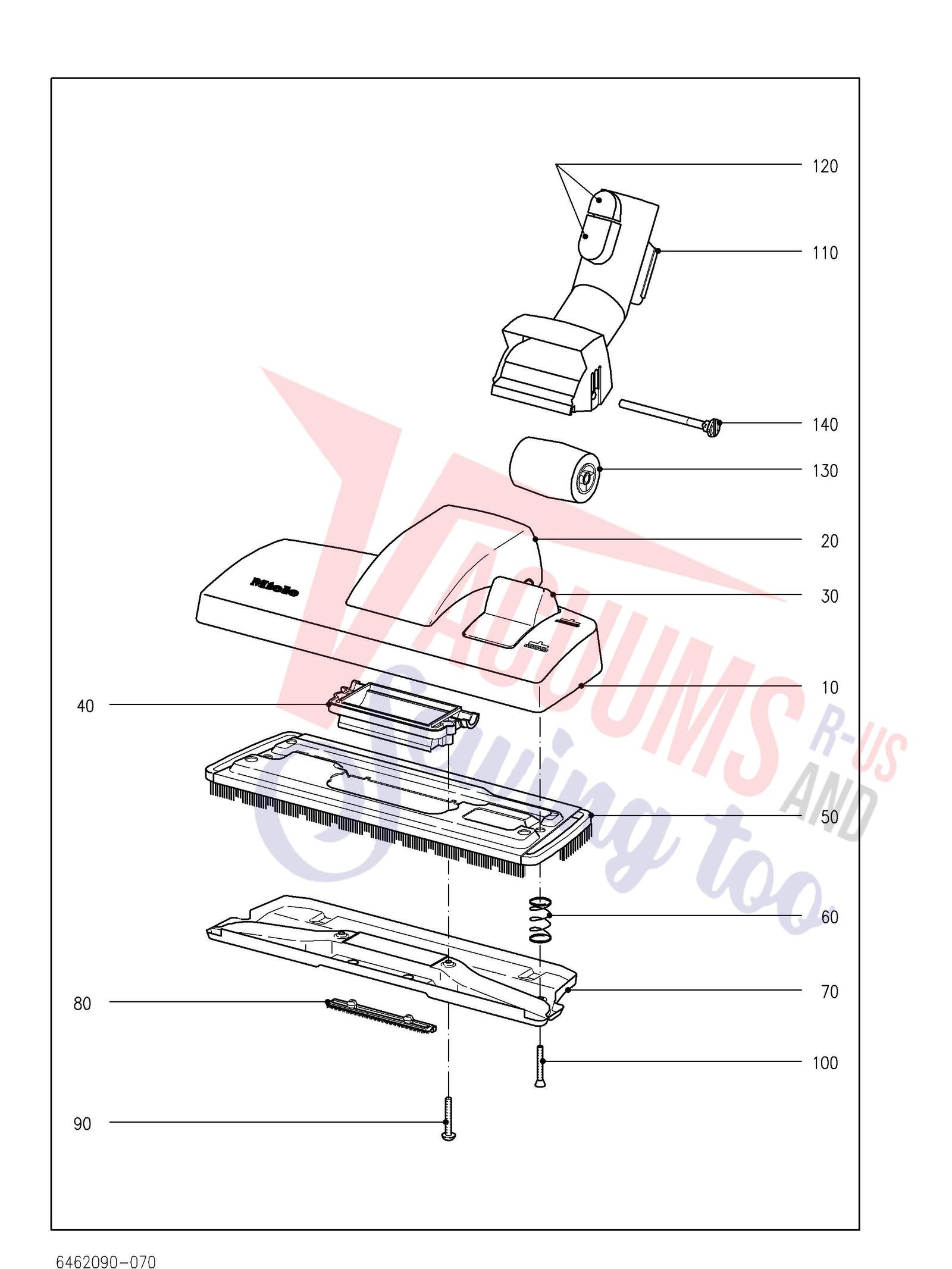

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 For Miele COMPLETE C1 SEAGO SEAG0 | 6223980 | Not Available |
| 10-140 |  | Miele AllTeQ Floor Head for Hard Floors and Carpets SBD 285-3 | 2853 | $98.70Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

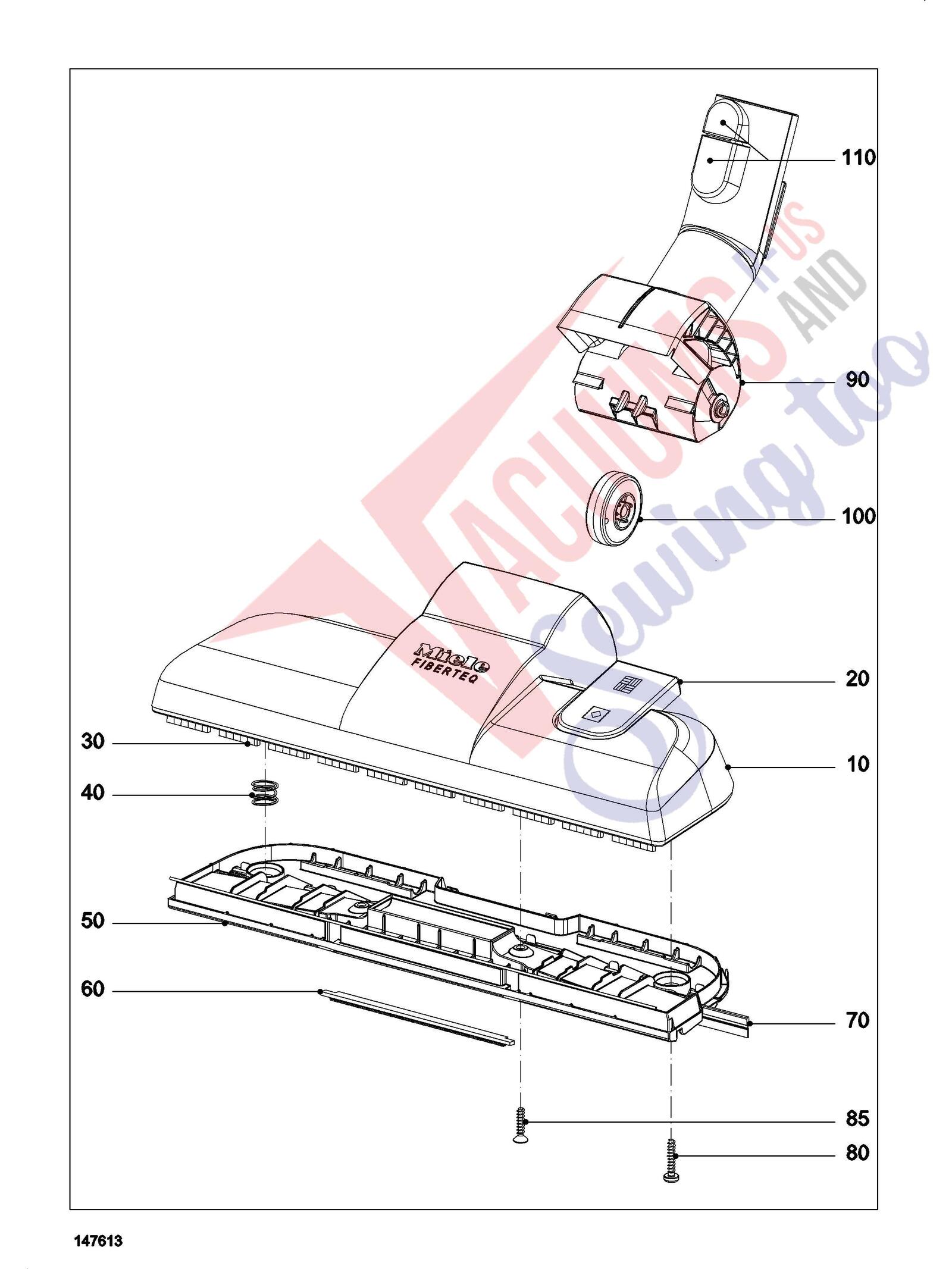

| # | Part image | Description | SKU | Price |
| xx | No Image | Top Sbd470-3 | 9316870 | $63.00Read more |
| 10-110 | Not Available | Floor nozzle SBD470-3 FiberTeQ For Miele COMPLETE C1 SEAGO SEAG0 | 9274750 | Not Available |
| 10-110 | Not Available | Floor nozzle SBD470-3 For Miele COMPLETE C1 SEAGO SEAG0 | 10484833 | Not Available |
| 20 |  | Genuine Miele Foot switch SBD470-3 | 9316890 | $33.80Read more |
| 30 | | Genuine Miele Bristle supp.plate SBD470-3 | 9316850 | $33.80Read more |
| 40 | No Image | Coil Spring Sbd470-3 | 9316860 | $15.00Read more |
| 50 | No Image | Lower Section Sbd470-3 | 9316820 | $91.00Read more |
| 60 | No Image | Thread Lifter 2 Pcs. | 9340531 | $15.00Read more |
| 70 | Not Available | Sealing strip SBD470-3 For Miele COMPLETE C1 SEAGO SEAG0 | 9316840 | Not Available |
| 80 | No Image | Raised Head Screw | 9316920 | $15.00Read more |
| 85 | No Image | Low Head Screw | 9316930 | $15.00Read more |
| 90-110 | | Genuine Miele Linkage SBD470-3 | 9316900 | $71.70Read more |
| 100 | | Genuine Miele Support roller SBD470-3 | 9316910 | $20.60Read more |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

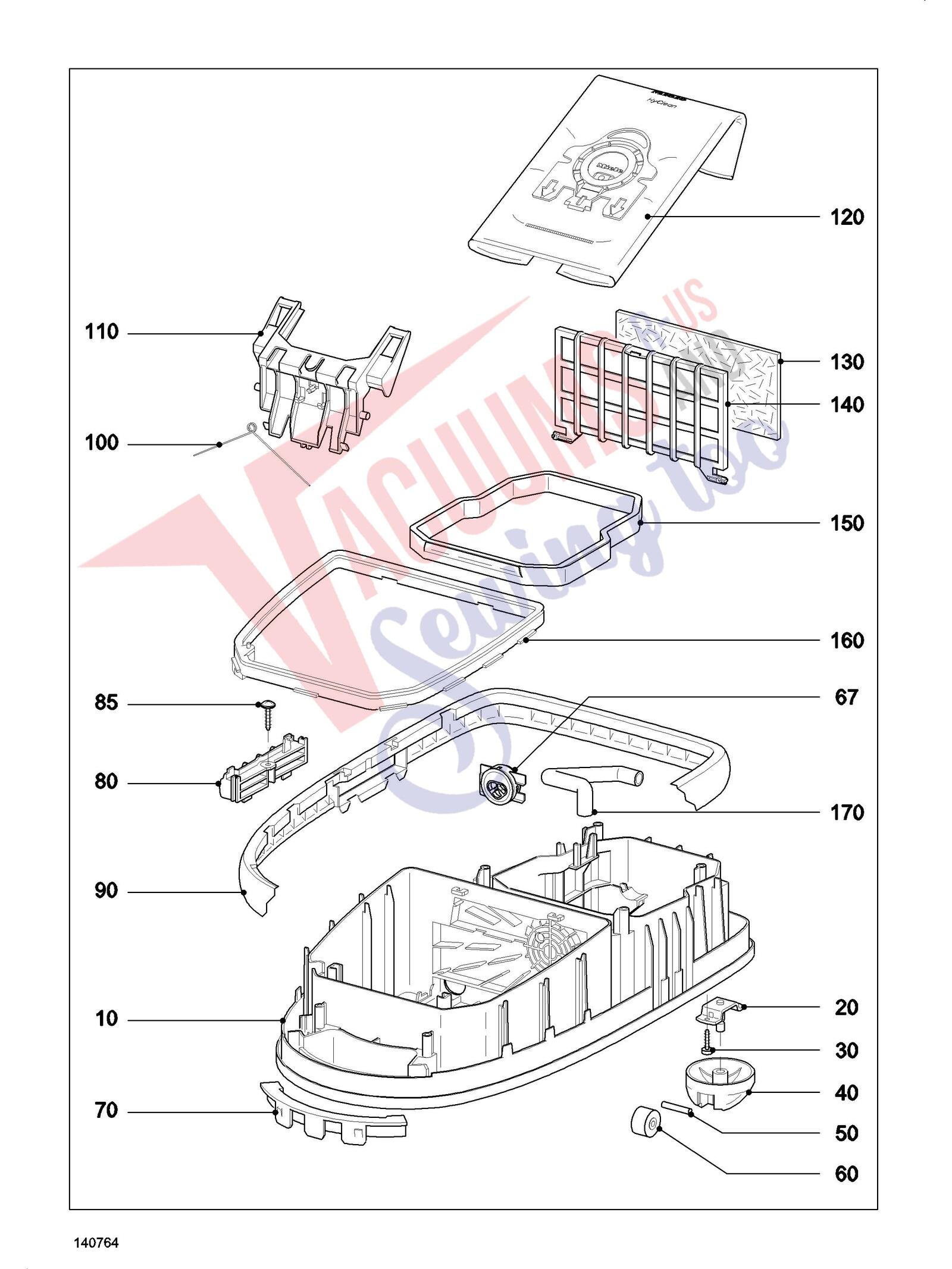

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Casing bottom anthracite | 5266835 | $105.10Read more |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| xx | Not Available | Casing bottom For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| xx | Not Available | Cable reel For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 30 | Not Available | undefined For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 40-60 |  | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Special order: ships in 2 to 4 weeks |
| 67 | | Genuine Miele Suction control | 5388511 | $6.60Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.60Read more |
| 80 | | Genuine Miele Suspension Telescopic pipe | 6855820 | $6.60Read more |
| 85 | Not Available | undefined For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 90 | | Genuine Miele Buffer | 5088850 | $43.60Read more |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Miele Bag Bracket to fit C2 and S6 | WP11830 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Aftermarket Miele FJM bags 4 pack bags | FJMAM4PK | $9.99Add to cart |
| 110 |  | Aftermarket Miele FJM Bags 5pk with Filters | WP10969 | $19.16Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Compatible alternatePaper Bags-Miele,Fjm,5Pk,Allergen,Poly Wrapper More Product Details | P205 | $18.90Add to cart Special order: ships in 2 to 4 weeks |
| 120 |  | Miele HEPA Vacuum Bags Type FJM - 4pk | 4002515578964 | $25.49Read more |
| 120 | | Aftermarket Miele FJM Bags 5pk with Filters | WP10969 | $19.16Add to cart Special order: ships in 2 to 4 weeks |
| 120 |  | Miele HEPA Vacuum Bags Type FJM - 8pk | 10455190 | $49.00Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Filter frame | 5117170 | $13.50Read more |
| 150 | | Genuine Miele Seal | 5088860 | $18.80Read more |
| 160 | | Genuine Miele Sealing ring | 5088870 | $18.80Read more |
| 170 | | Genuine Miele Hose | 5088980 | $15.00Read more |

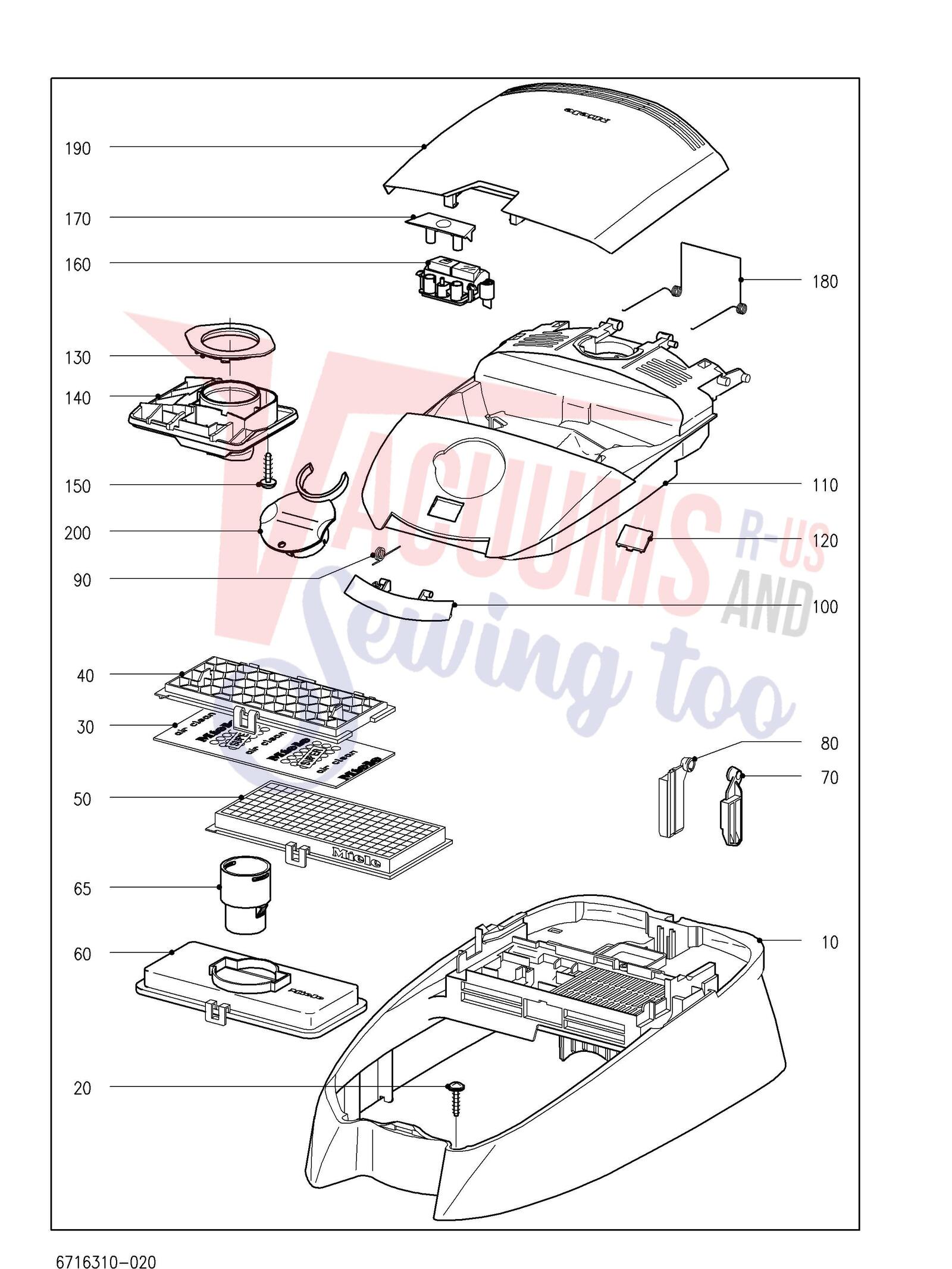

| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | | Genuine Miele Cover frame Autumn red of 3 Parking | 7330981 | $93.60Read more |
| 10 | No Image | Cover Frame Steel-Blue Metallic Of 3 Parking | 7864480 | $129.00Read more |
| 10 | No Image | Cover Frame Lotos White Of 3 Parking | 7508461 | $100.00Read more |
| 10 | | Genuine Miele Cover frame Sprint blue of 3 Parking | 9322191 | $0.00Read more |
| 10 | | Genuine Miele Cover frame Canary yellow of 3 Parking | 9322201 | $93.60Read more |
| 10 | No Image | Cover Frame Obsidian Black Of 3 Parking | 9322211 | $100.00Read more |
| 20 | Not Available | undefined For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 30 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $18.80Read more |
| 50 |  | HEPA AirClean filter withTimeStrip SF-HA30 SF-AH30 | 4002515315606 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | HEPA AirClean filter withTimeStrip SF-HA30 SF-AH30 | 4002515315606 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $49.00Read more |
| 50 | | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $49.00Read more |
| 50 |  | Aftermarket Miele AH-30 HEPA Filter SF-AH30 SF-HA30 | 54236207 | $26.99Add to cart |
| 50 | | Aftermarket Miele AH-30 HEPA Filter SF-AH30 SF-HA30 | 54236207 | $26.99Add to cart |
| 60 | | Genuine Miele Blower plate | 5109310 | $20.60Read more |
| 65 | | Genuine Miele Adapter Blower plate | 5751130 | $9.70Read more |
| 70 |  | Genuine Miele Hinge left anthracite | 5089000 | $4.90Add to cart |
| 80 | Not Available | Flush socket outlet 2 pole For Miele COMPLETE C1 SEAGO SEAG0 | 5398100 | Not Available |
| 90 | | Genuine Miele Torsion spring | 5108160 | $10.70Read more |
| 100 |  | Genuine Miele Lock anthracite | 5089024 | $4.90Read more |
| 110 | | Genuine Miele Casing top Autumn red | 5982462 | $98.00Read more |
| 110 | No Image | Casing Top Steel-Blue Metallic | 7864822 | $129.00Read more |
| 110 | | Genuine Miele Casing top Lotos white | 7508472 | $98.00Read more |
| 110 | No Image | Casing Top Sprint Blue | 9322222 | $109.00Read more |
| 110 | No Image | Casing Top Canary Yellow | 9322242 | $109.00Read more |
| 110 | | Genuine Miele Casing top Obsidian black | 9322252 | $0.00Read more |
| 120 | | Genuine Miele Cap anthracite | 5089032 | $3.60Read more |
| 130 | | Genuine Miele Ring Dust channel | 5739640 | $4.90Read more |
| 140 | | Genuine Miele Dust channel Casing top | 5754751 | $0.00Read more |
| 150 | Not Available | undefined For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 160+170 | | Genuine Miele Change filter ind. | 5535191 | $33.80Read more |
| 170 | | Genuine Miele interlock | 5089091 | $9.70Read more |
| 180 |  | Genuine Miele Torsion spring | 5124520 | $4.90Read more |
| 190 | | Genuine Miele Lid Autumn red | 5991122 | $52.20Read more |
| 190 | No Image | Lid Lotos White | 7675790 | $56.00Read more |
| 190 | No Image | Lid Sprint Blue S77X "Miele" | 9499500 | $56.00Read more |
| 190 | No Image | Lid Canary Yellow S77X "Miele" | 9499520 | $56.00Read more |
| 190 | No Image | Lid Obsidian Black S77X "Miele" | 9499510 | $56.00Read more |
| 190 | Not Available | Lid Steel-blue metallic For Miele COMPLETE C1 SEAGO SEAG0 | 7915082 | Not Available |

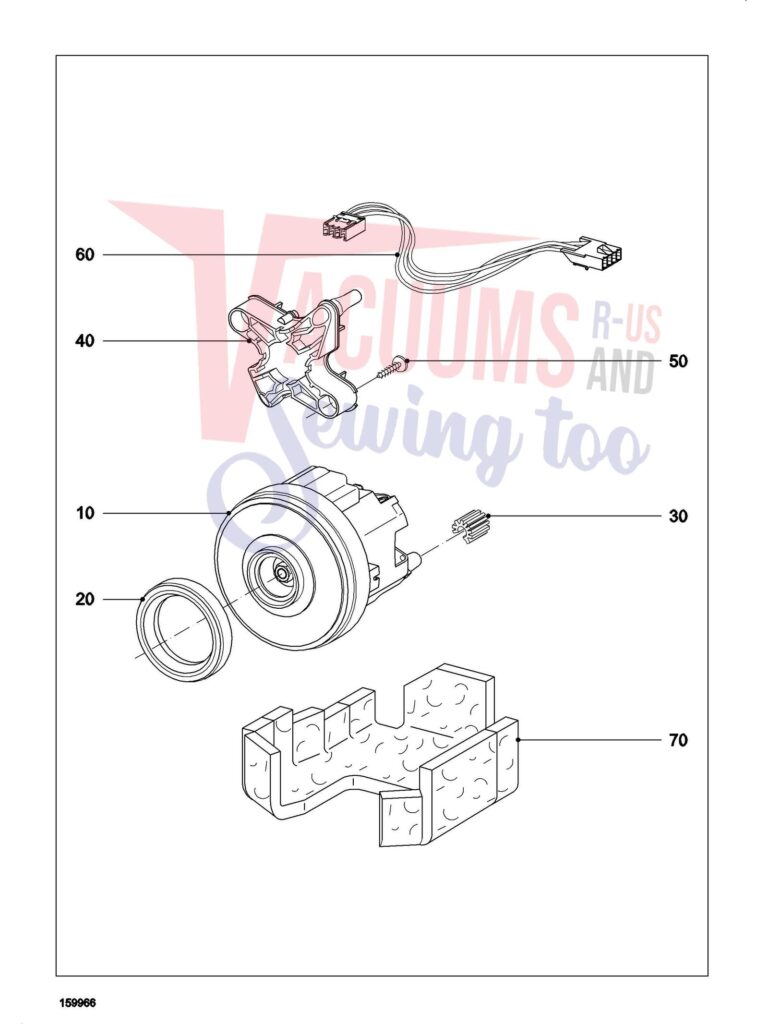

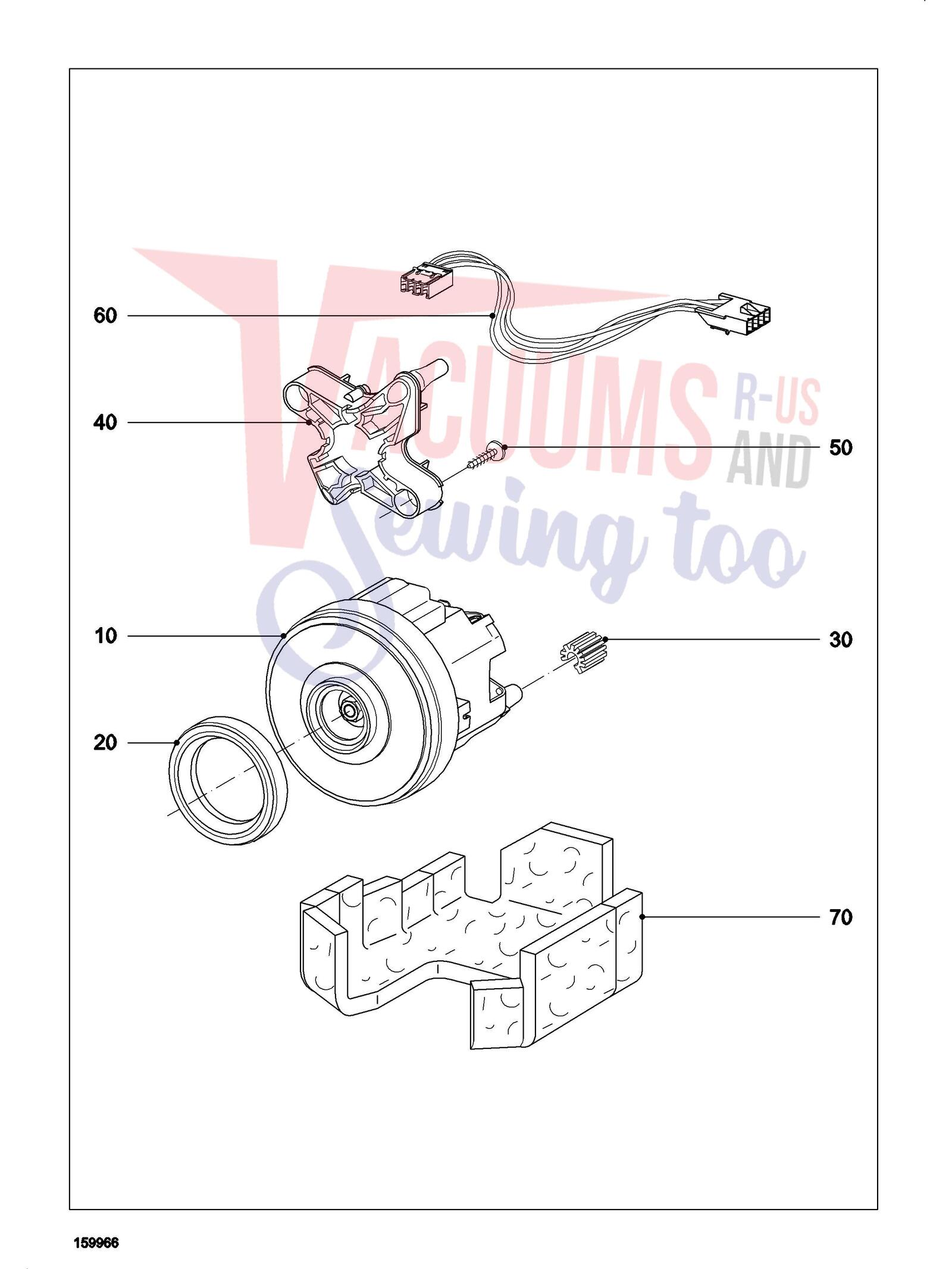

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | Fan For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 20 | | Genuine Miele Bearing ring "V18" S700 | 9194220 | $20.60Read more |
| 30 | | Genuine Miele Rubber cushion | 5089190 | $6.60Read more |
| 40 | | Genuine Miele Adapter Fan | 5708930 | $43.60Read more |
| 50 | Not Available | undefined For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 60 | Not Available | Connecting cable S700 For Miele COMPLETE C1 SEAGO SEAG0 | 7641180 | Not Available |
| 70 | | Genuine Miele Damping plate | 5088890 | $10.70Read more |

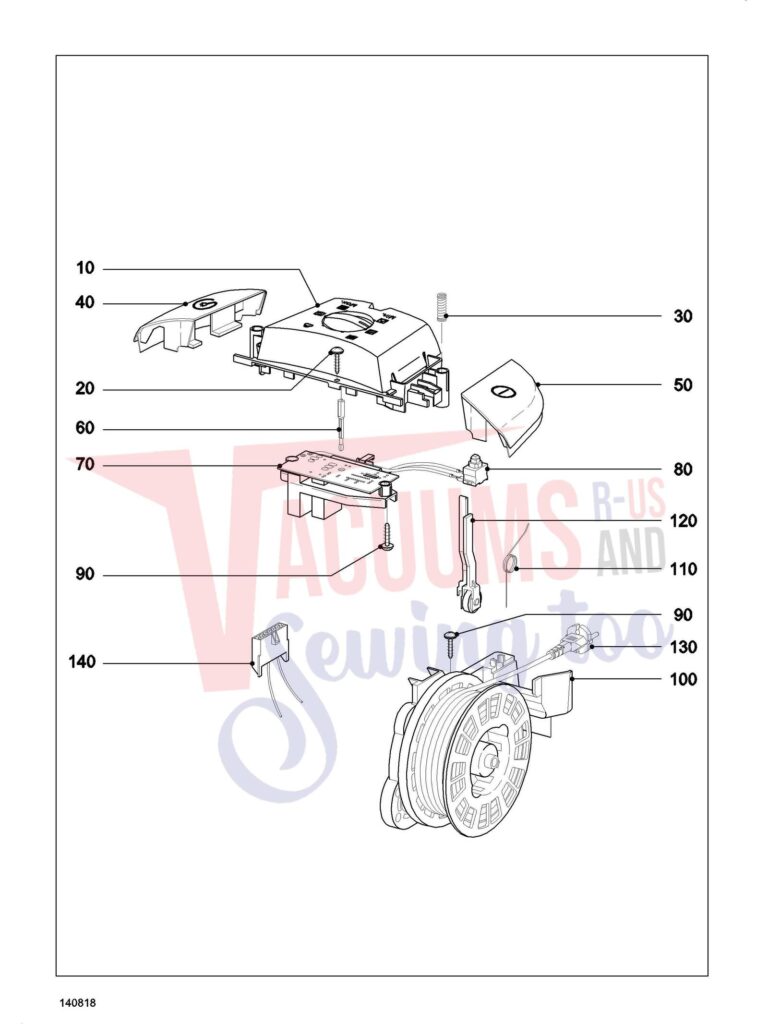

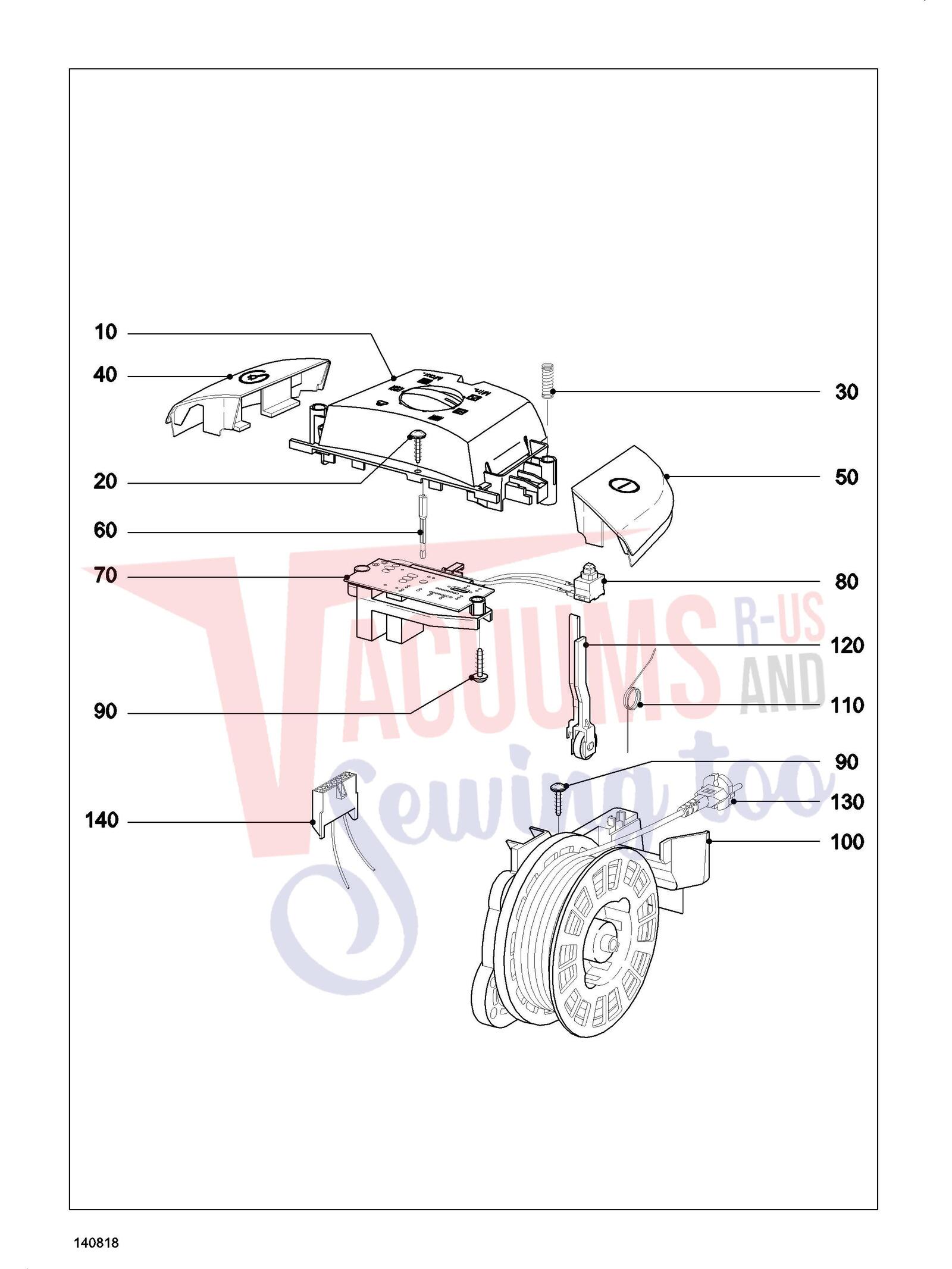

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| xx | Not Available | Plug housing For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| xx | Not Available | Cable reel For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 10 | Not Available | Cap Min-Max For Miele COMPLETE C1 SEAGO SEAG0 | 7344931 | Not Available |
| 20 | Not Available | undefined For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 30 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 40 | | Genuine Miele Foot switch right (Relaunch) | 7737071 | $9.70Add to cart |
| 50 | | Genuine Miele Foot switch left (Relaunch) | 7737081 | $9.70Read more |
| 60 | | Genuine Miele Adapter Rotary knob | 5776181 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 70+80 | Not Available | Electronic unit For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 80 |  | Miele On/Off Switch for Canisters 1 Pole PN 09023231 4367102 | WP10439 | Original price was: $18.00.$12.99Current price is: $12.99.Read more |
| 90 | Not Available | undefined For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 100-130 | Not Available | Cable reel For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 110 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 120 | | Genuine Miele Brake lever cpl. S300/500/700 | 4312186 | $6.60Read more |
| 130 | Not Available | Supply cable For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 140 | Not Available | Connecting cable For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |

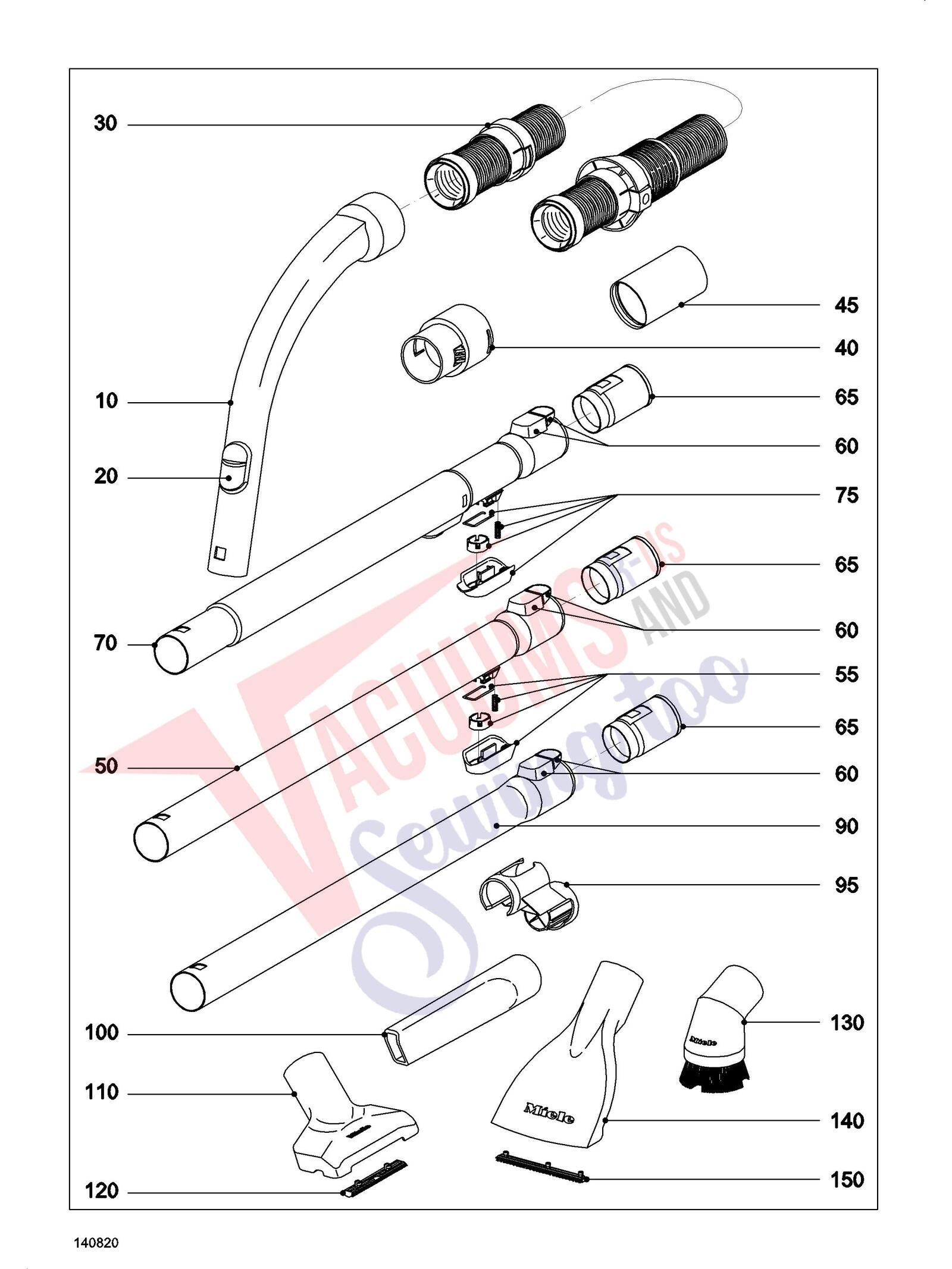

| # | Part image | Description | SKU | Price |
| xx | Not Available | Thread lifter For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| xx | Not Available | No spare part For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 7316571 | $53.00Read more |
| 40 | | Genuine Miele Adapter Blower plate | 5751130 | $9.70Read more |
| 45 | Not Available | Connecting tube Suction hose For Miele COMPLETE C1 SEAGO SEAG0 | 5527410 | Not Available |
| 50-65 | | Genuine Miele Telescopic pipe 2-part st.steel | 10275580 | $0.00Read more |
| 55 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60+65 | | Genuine Miele Suction pipe top stainless steel | 9266001 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 60+65+ | Not Available | For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 65 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 70+75 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 70+75 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 90+ | Not Available | For Miele COMPLETE C1 SEAGO SEAG0 | noop | Not Available |
| 95 | | Genuine Miele Holder Suction pipe | 7096871 | $11.00Read more |
| 100 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 110+120 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 130 |  | Genuine Miele Dusting Brush | 7010301 | $0.00Read more |
| 130 | No Image | Compatible alternateDusting Brush L More Product Details | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Aftermarket Miele Round Dusting Brush - Compatible with Miele Part SSP10 and 7010301 | 32161762 | $7.01Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
