Parts list and schematic diagram for Miele Models: BLIZZARD CX1 SKRF5, SKRF5, Miele Blizzard CX1 Flex Power Line Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.

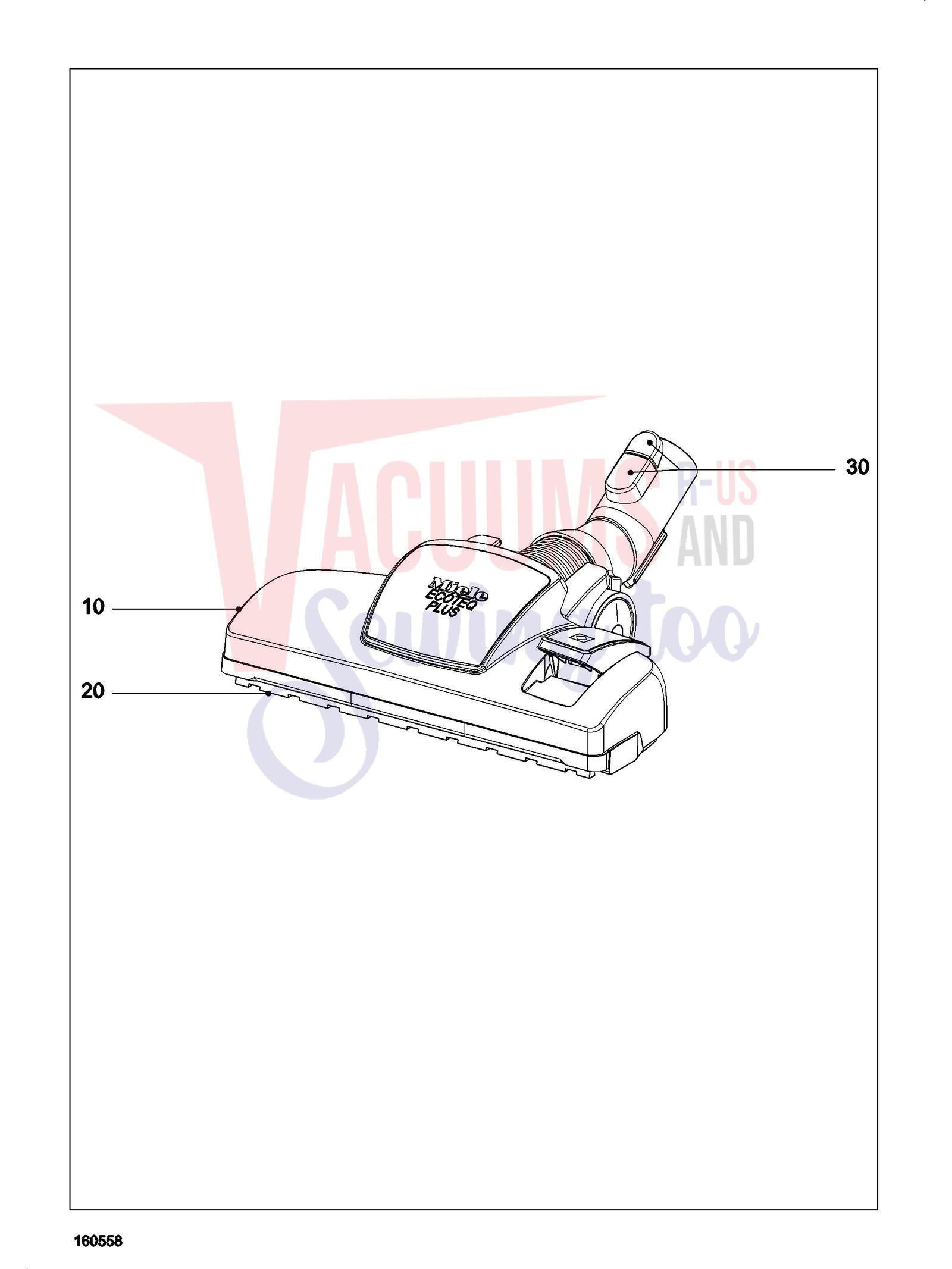

| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele EcoTeQPlus Floor nozzle SBD 660-3 | 10367800 | $145.13Read more |
| 20 | | Genuine Miele Bristle supp.plate SBD 660-3 assy | 10331720 | $39.50Read more |
| 30 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

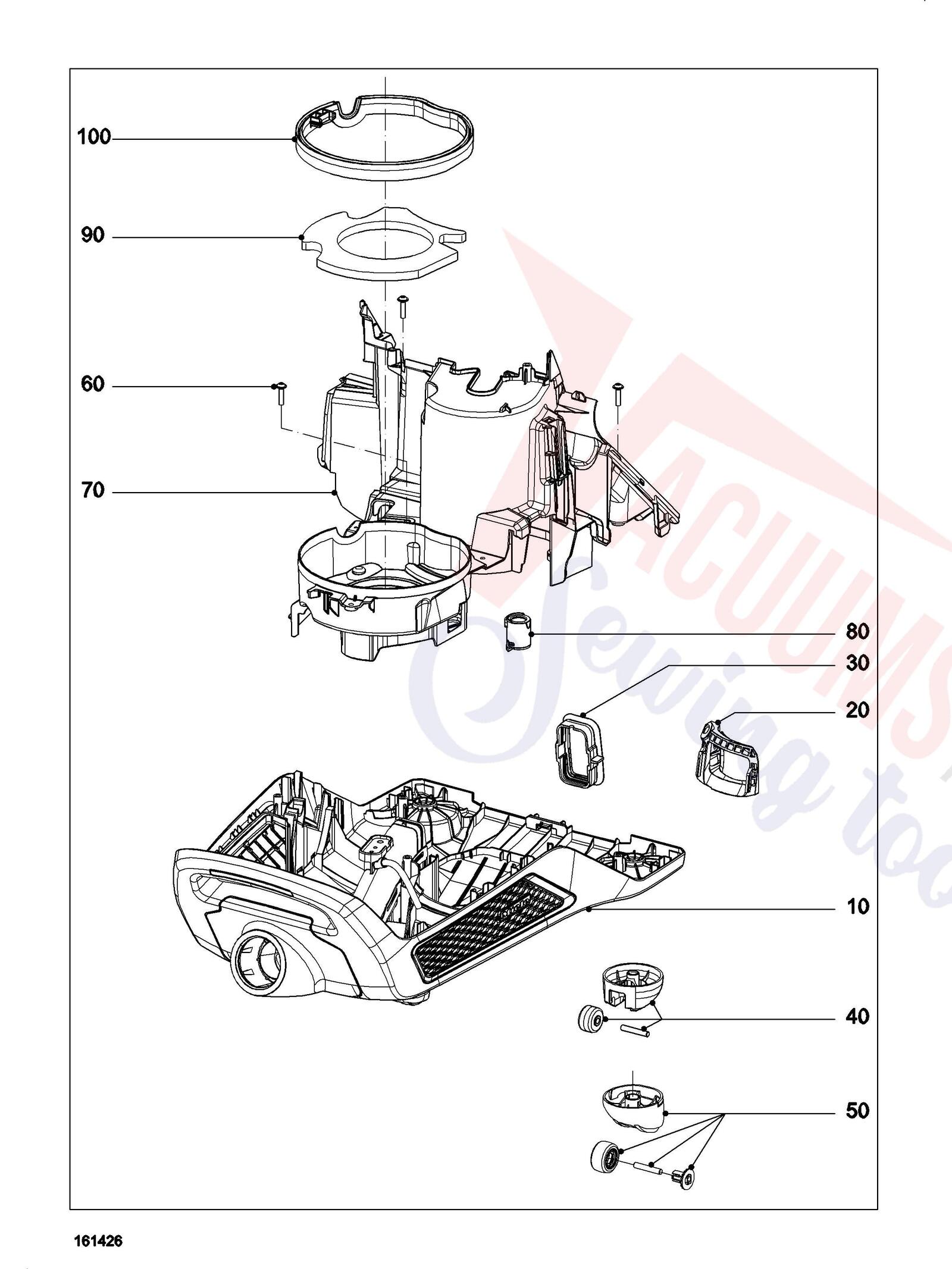

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Casing bottom Dynamic Drive assy | 9890836 | $170.80Read more |
| xx | | Genuine Miele Casing bottom Standard assy | 9607644 | $150.60Read more |
| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 20 | | Genuine Miele Seal Casing bottom SK | 9631961 | $20.60Read more |
| 30 |  | Genuine Miele Lip seal | 9608902 | $13.50Read more |
| 40 |  | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Slide skid Dynamic Drive kpl. | 7781437 | $22.00Read more |
| 60 | Not Available | undefined For Miele BLIZZARD CX1 SKRF5 SKRF5 | noop | Not Available |
| 70+80 | | Genuine Miele Casing insert kpl. | 9607903 | $105.10Read more |
| 80 | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |
| 90 | | Genuine Miele Damping plate Casing insert | 9608961 | $13.50Read more |
| 100 | | Genuine Miele Seal Motor housing | 9799030 | $20.60Read more |

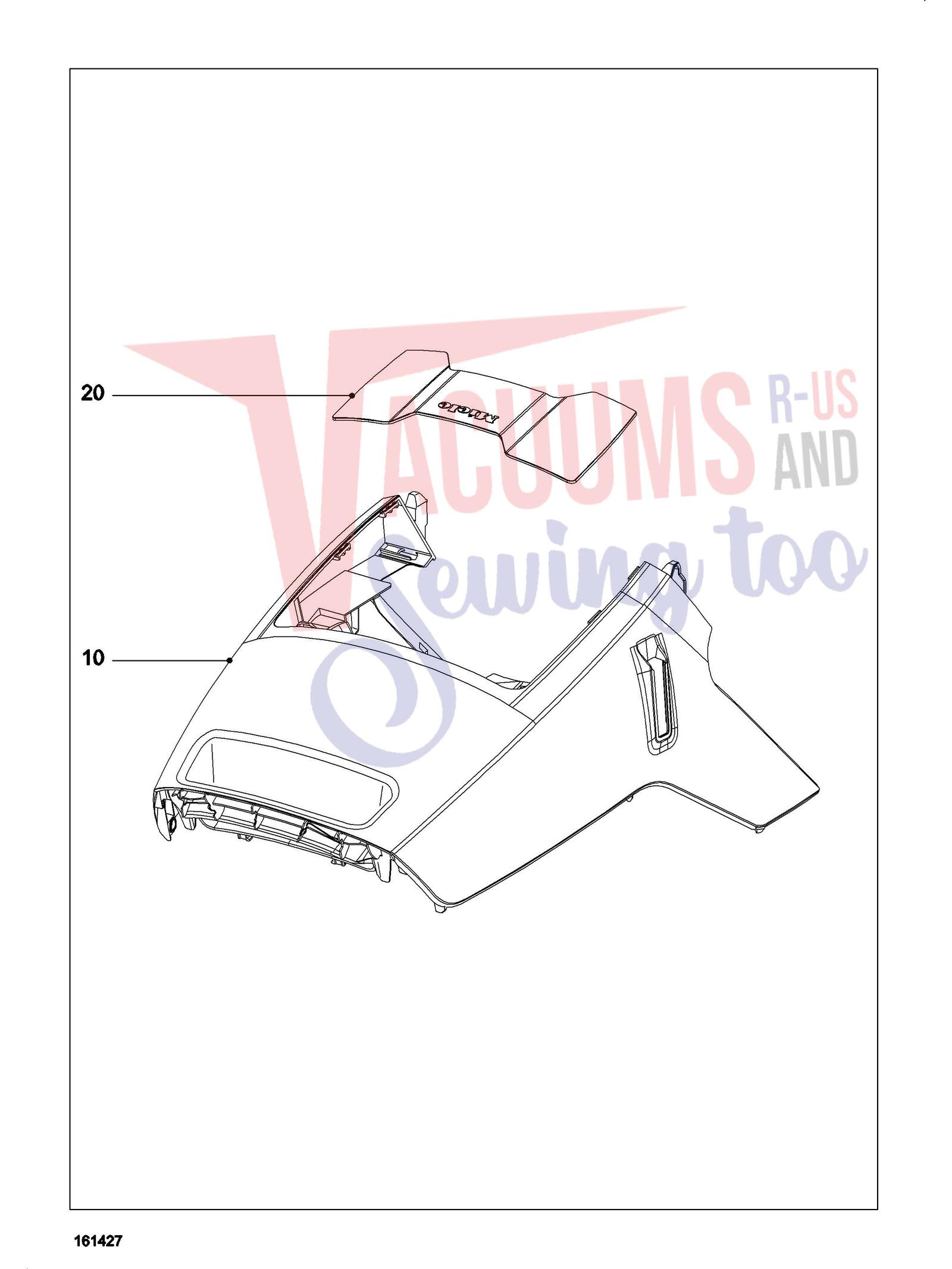

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Cover frame TEBL SK | 10327063 | $98.00Read more |
| 10 | | Genuine Miele Cover frame GRGR SK | 10327053 | $98.00Read more |
| 10 | | Genuine Miele Cover frame OBSW SK | 10327163 | $93.60Read more |
| 10 | | Genuine Miele Cover frame MART SK | 10327153 | $93.60Read more |
| 10 | | Genuine Miele Cover frame LOWE SK | 10327143 | $93.60Read more |
| 20 | | Genuine Miele Viewing screen Blizzard CX1 (KD) | 10547820 | $71.70Read more |
| 20 | No Image | Viewing Screen Rot Blizzard Cx1 Kd | 10980460 | $76.00Read more |

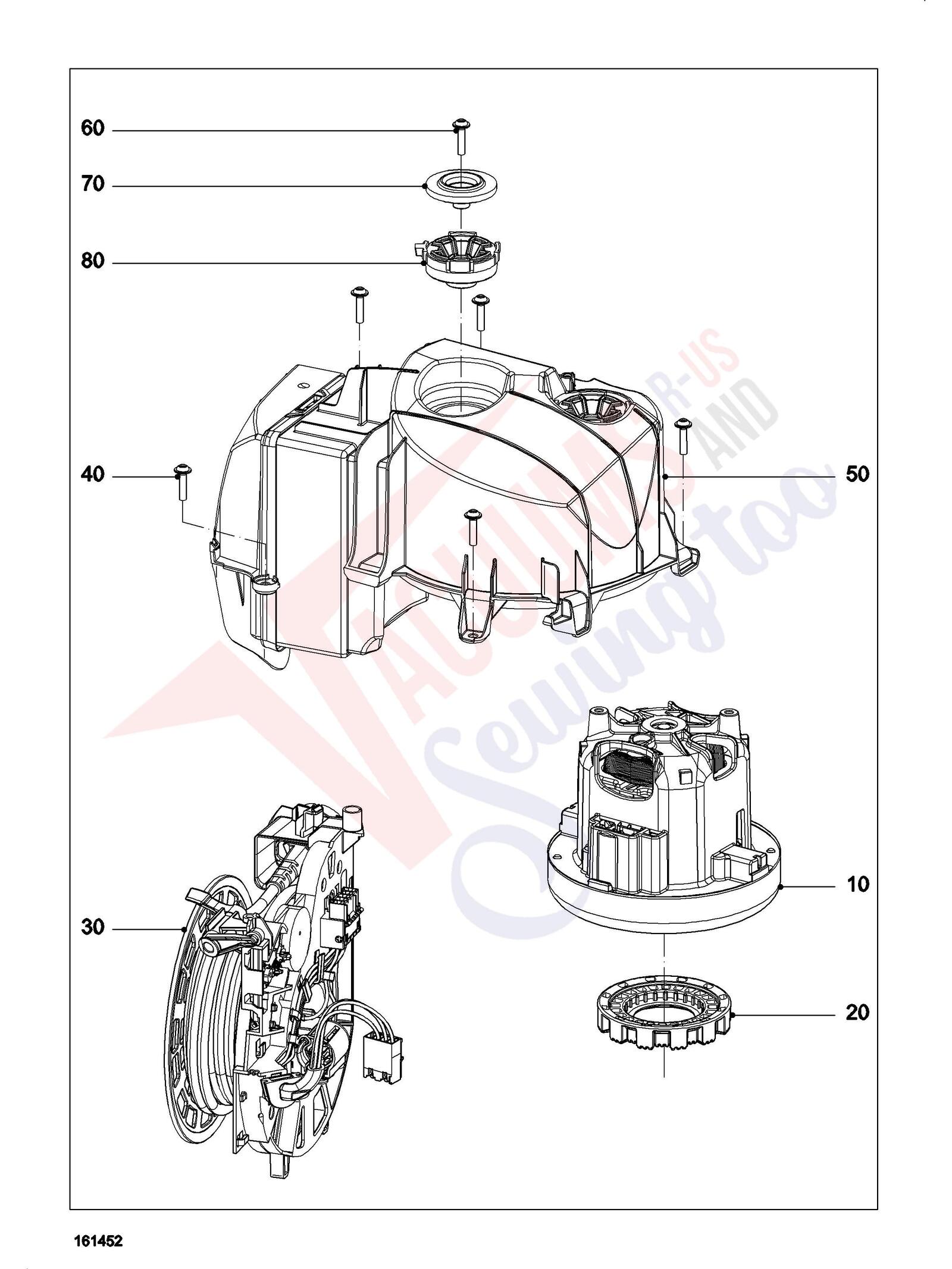

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 20 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Cable reel CX1 7,5m EU | 10170177 | $100.60Read more |
| 40 | Not Available | undefined For Miele BLIZZARD CX1 SKRF5 SKRF5 | noop | Not Available |
| 50+80 | | Genuine Miele Air shield Hygiene-Lifetime E10 | 9734825 | $150.60Read more |
| 60 | Not Available | undefined For Miele BLIZZARD CX1 SKRF5 SKRF5 | noop | Not Available |
| 70 | No Image | Disc | 9734800 | $2.50Read more |
| 80 | No Image | Rubber Cushion Baureihe Sk | 9632041 | $16.00Read more |

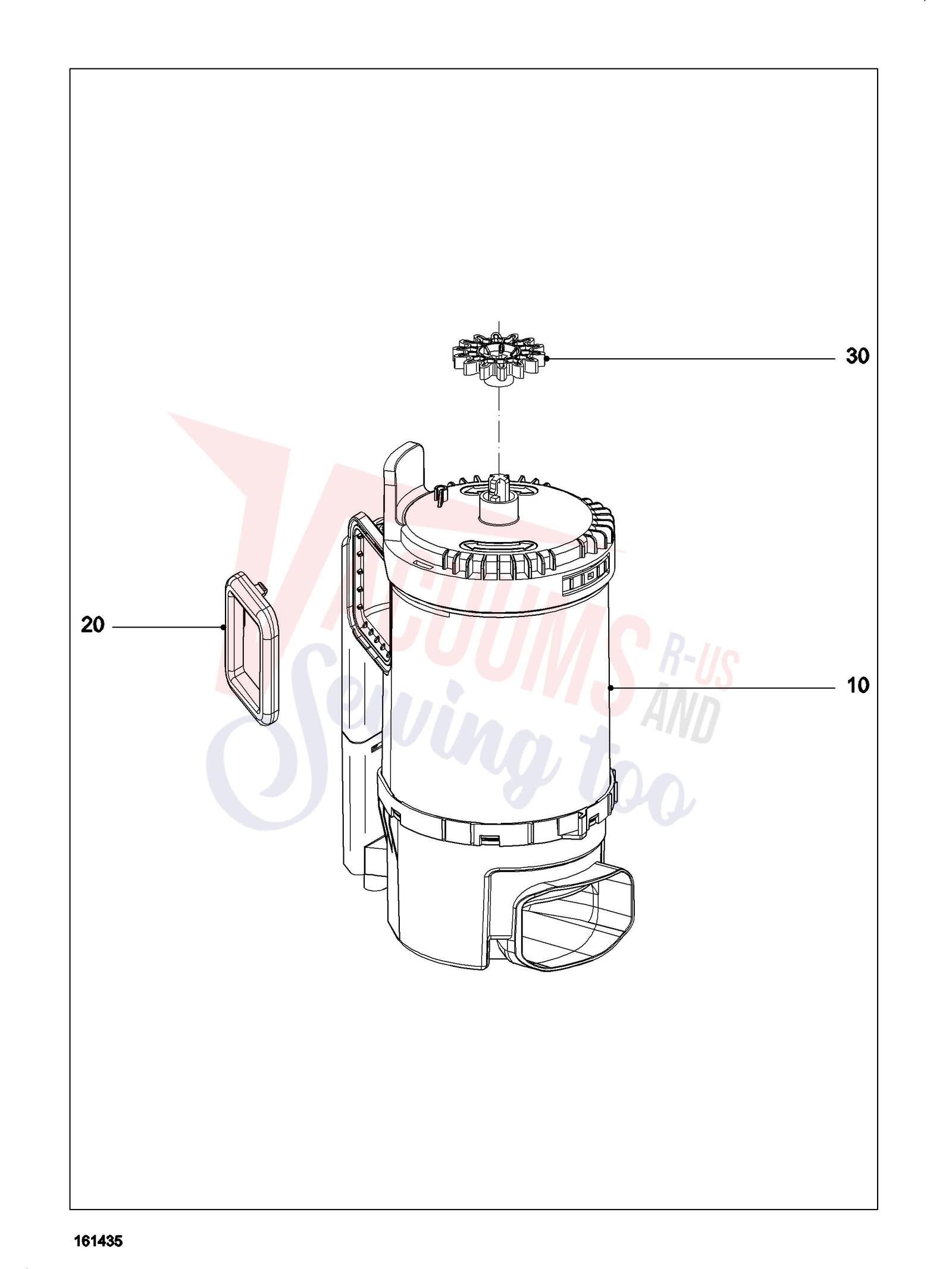

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Fine dust cartridge assy | 9607999 | $87.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Genuine Miele Seal Fine dust cartridge | 9878151 | $15.00Read more |
| 30 | | Genuine Miele Cogwheel Filter cleaning | 9631410 | $13.50Read more |

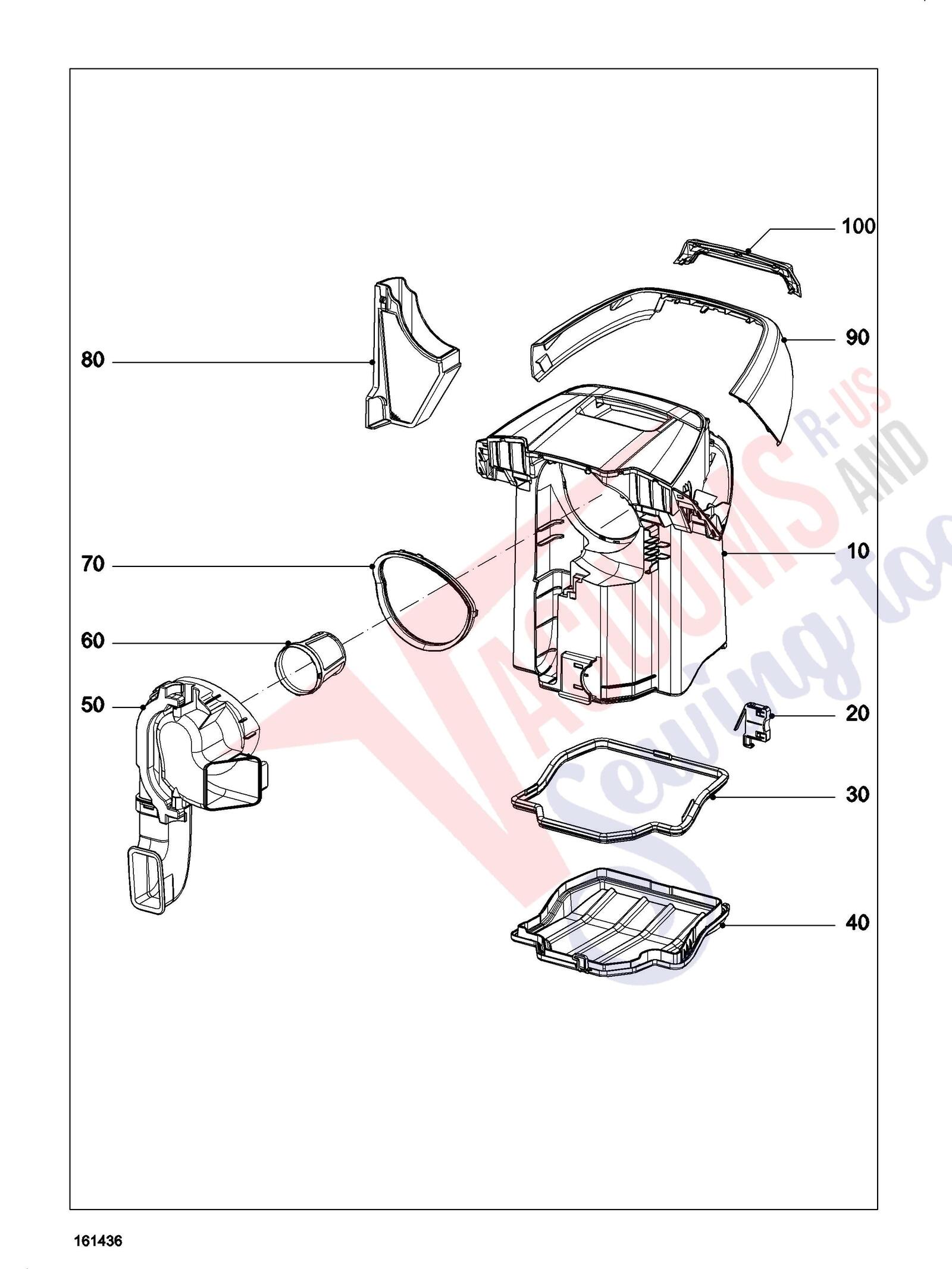

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Separator TP assy | 9607978 | $169.00Add to cart Special order: ships in 2 to 4 weeks |
| xx | | Genuine Miele Separator KRRT assy | 10973668 | $189.00Add to cart Special order: ships in 2 to 4 weeks |
| xx | Not Available | For Miele BLIZZARD CX1 SKRF5 SKRF5 | noop | Not Available |
| 20 | | Genuine Miele Lock Flap | 9631542 | $13.50Read more |
| 30 |  | Genuine Miele Seal Flap | 9631553 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Genuine Miele Flap Interceptor | 9631563 | $27.90Read more |
| 50 |  | Genuine Miele Vent duct Interceptor | 11343630 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Pre-filter kpl. SK | 9631491 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Seal Vent duct | 10132501 | $18.80Read more |
| 80 |  | Genuine Miele Filter frame Separator | 10132491 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Cover Interceptor TEBL SK | 10327081 | $52.20Read more |
| 90 | | Genuine Miele Cover Interceptor GRGR SK | 10327071 | $52.20Read more |
| 90 | | Genuine Miele Cover Interceptor OBSW SK | 10327131 | $52.20Read more |
| 90 | | Genuine Miele Cover Interceptor MART SK | 10327111 | $52.20Read more |
| 90 | | Genuine Miele Cover Interceptor LOWE SK | 10327091 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 |  | Genuine Miele Strip | 9608131 | $5.20Add to cart Special order: ships in 2 to 4 weeks |

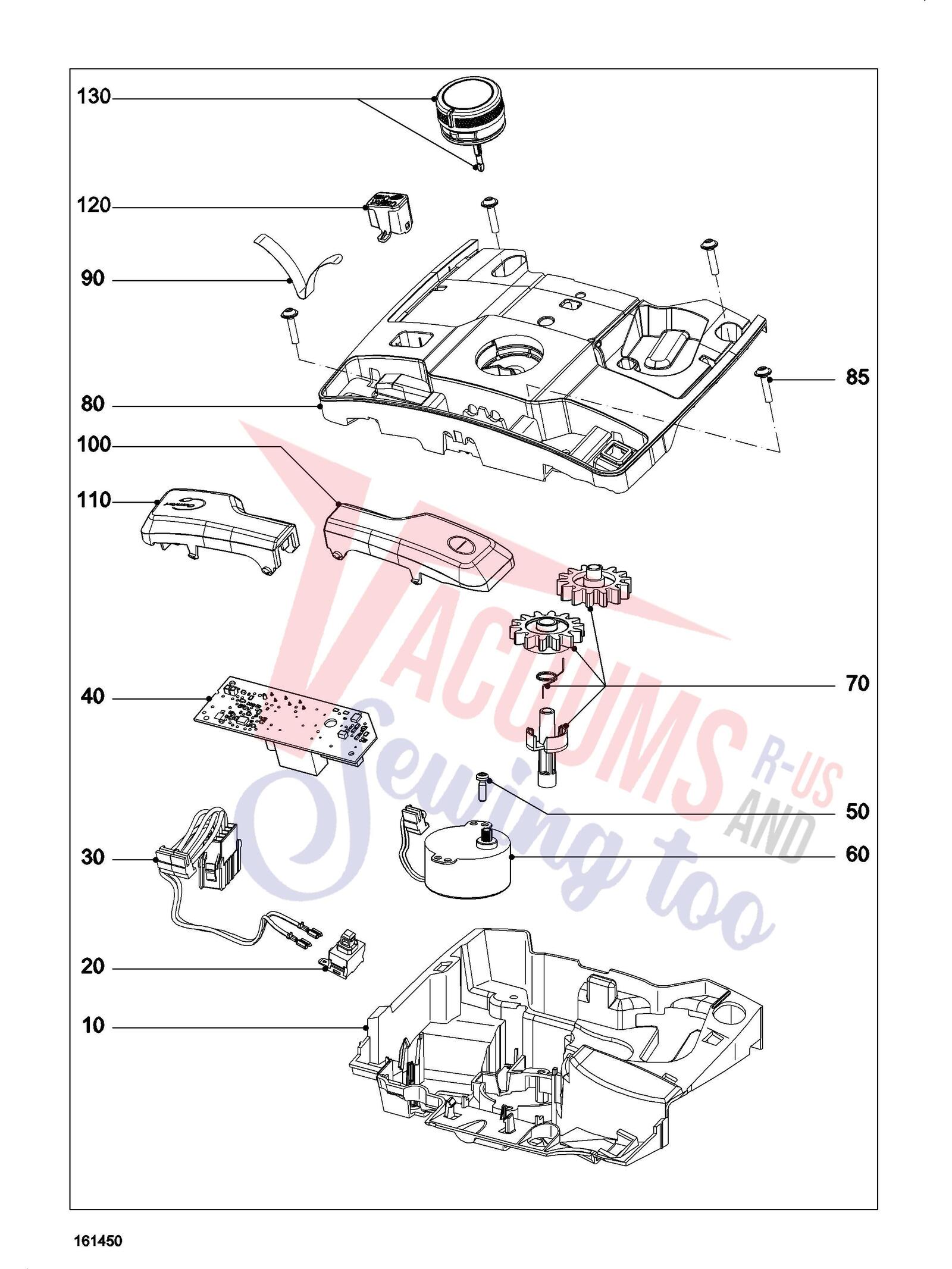

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | No Image | Bracket Electronic Unit | 9631603 | $66.00Read more |
| 20 |  | Miele On/Off Switch for Canisters 1 Pole PN 09023231 4367102 | WP10439 | Original price was: $18.00.$12.99Current price is: $12.99.Read more |
| 30 | | Genuine Miele Harness EDW CX1203/81 | 9739391 | $27.90Read more |
| 40 |  | Genuine Miele Electronic unit EDW S16203/81 | 11256380 | $71.70Read more |
| 50 | Not Available | undefined For Miele BLIZZARD CX1 SKRF5 SKRF5 | noop | Not Available |
| 60 | | Genuine Miele Motor Filter cleaning | 9889852 | $78.10Read more |
| 70 | | Genuine Miele Conv.kit cogwheel | 10523400 | $43.60Read more |
| 80 | | Genuine Miele Cap Rotary knob bedruckt | 9608892 | $78.10Read more |
| 85 | Not Available | undefined For Miele BLIZZARD CX1 SKRF5 SKRF5 | noop | Not Available |
| 90 | | Genuine Miele Leaf spring S8 | 7781641 | $2.30Read more |
| 100 | | Genuine Miele Foot switch On-off bedruckt | 9609071 | $24.70Read more |
| 110 | | Genuine Miele Foot switch Cable reel bedruckt | 9609032 | $24.70Read more |
| 120 | No Image | Pushbutton Filter Cleaning Bedruckt | 9608941 | $20.00Read more |
| 130 |  | Genuine Miele Rotary knob | 10523380 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

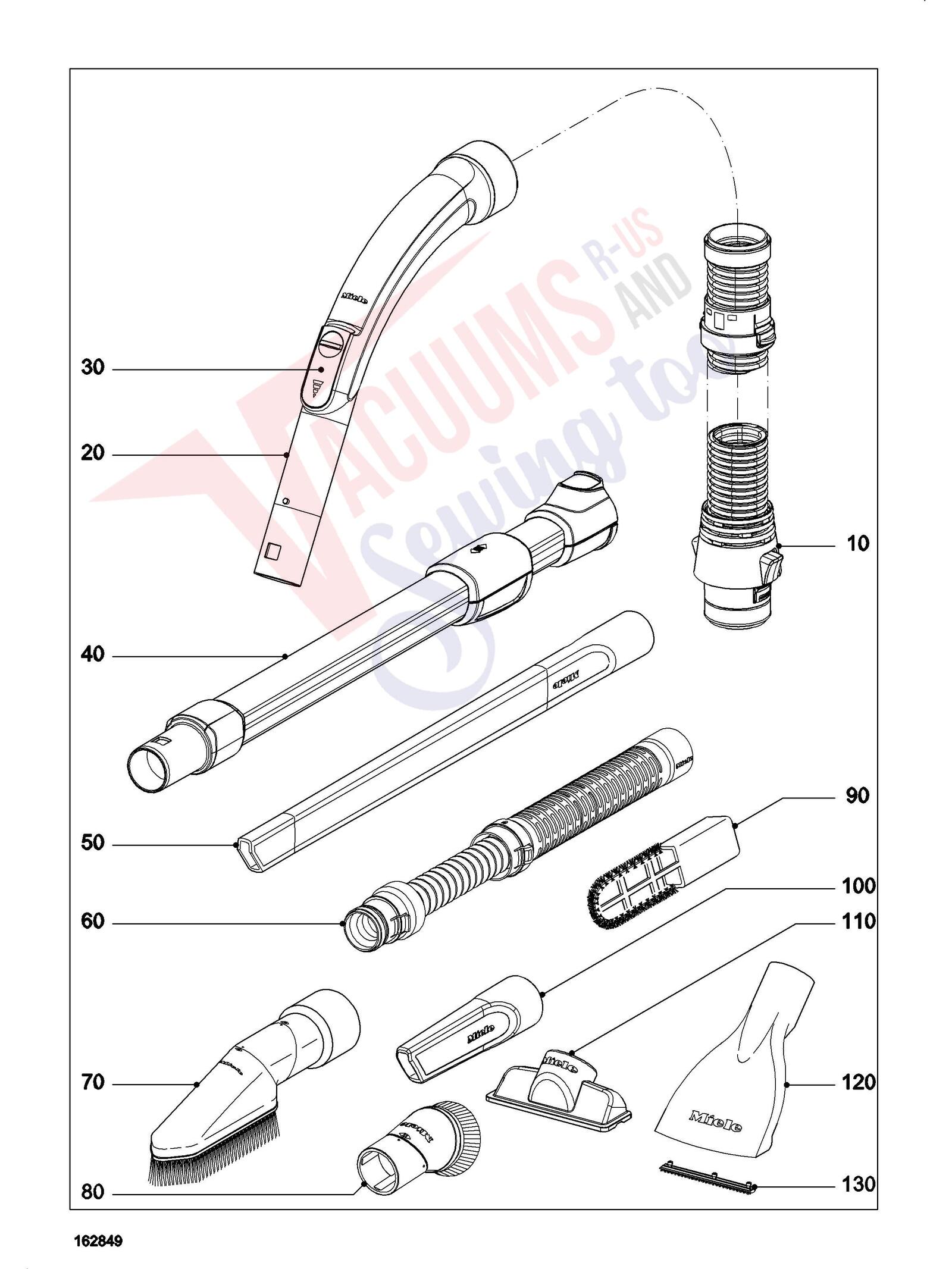

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Tubular handle Comfort Standard | 6163669 | $91.00Add to cart Special order: ships in 2 to 4 weeks |
| xx |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele Suction hose kpl. SK | 9683033 | $40.54Read more |
| 20+30 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.30Read more |
| 40 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 50 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |
| 80 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 110 |  | Genuine Miele Upholstery nozzle 2K kompakt | 11322570 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
