Parts list and schematic diagram for Miele Models: BLIZZARD CX1 SKMP3, SKMP3, Comfort Ecoline Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
| # | Part image | Description | SKU | Price |

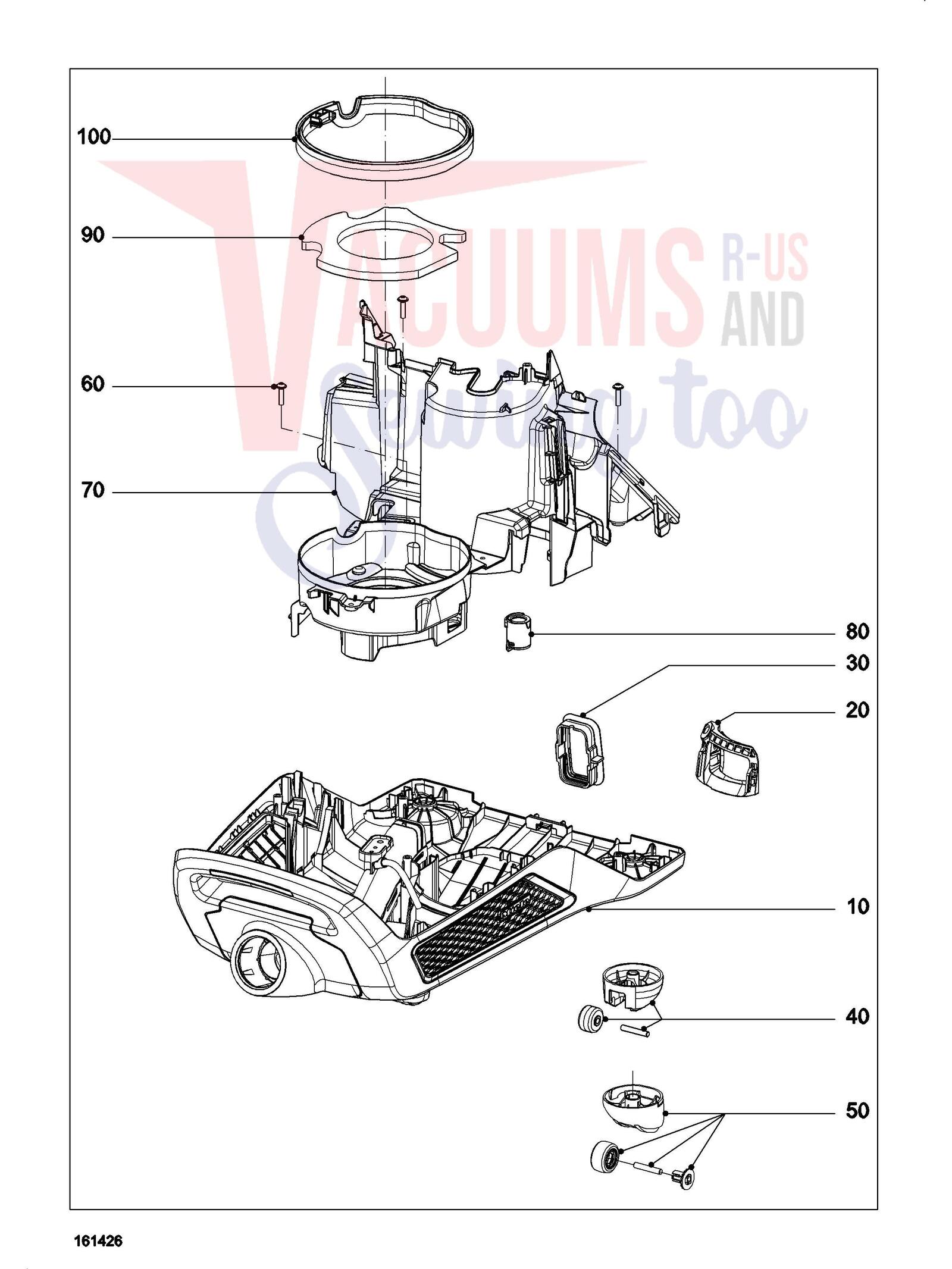

| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| xx |  | Genuine Miele Casing bottom Dynamic Drive assy | 9890836 | $170.80Read more |
| xx | | Genuine Miele Casing bottom Standard assy | 9607644 | $150.60Read more |
| 20 | | Genuine Miele Seal Casing bottom SK | 9631961 | $20.60Read more |
| 30 |  | Genuine Miele Lip seal | 9608902 | $13.50Read more |
| 40 |  | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Slide skid Dynamic Drive kpl. | 7781437 | $22.00Read more |
| 60 | Not Available | undefined For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |
| 70+80 | | Genuine Miele Casing insert kpl. | 9607903 | $105.10Read more |
| 80 | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |
| 90 | | Genuine Miele Damping plate Casing insert | 9608961 | $13.50Read more |
| 100 | | Genuine Miele Seal Motor housing | 9799030 | $20.60Read more |
| # | Part image | Description | SKU | Price |

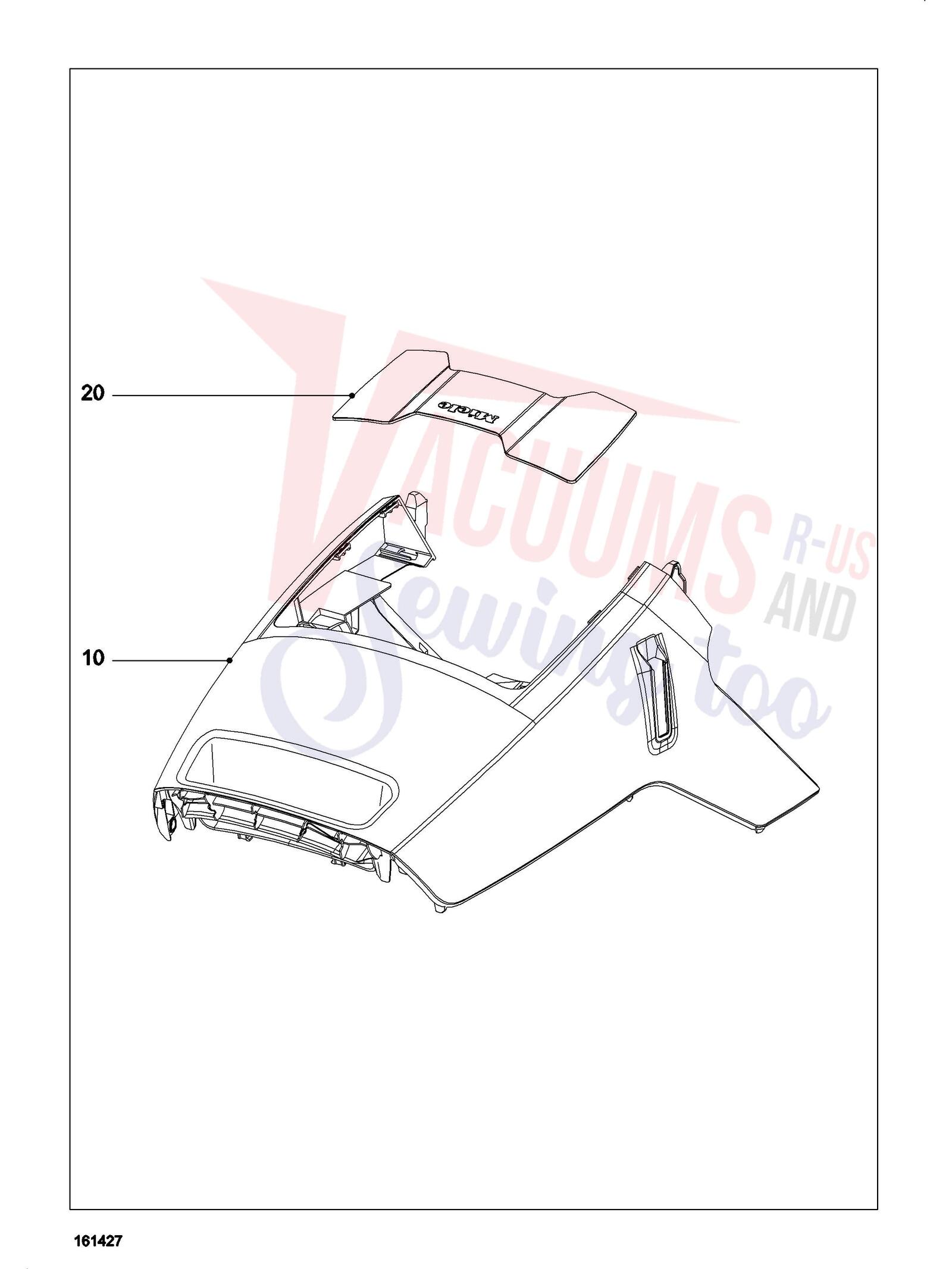

| 10 | | Genuine Miele Cover frame LOWE SK | 10327143 | $93.60Read more |
| 10 | | Genuine Miele Cover frame MART SK | 10327153 | $93.60Read more |
| 10 | | Genuine Miele Cover frame OBSW SK | 10327163 | $93.60Read more |
| 10 | | Genuine Miele Cover frame GRGR SK | 10327053 | $98.00Read more |
| 10 | | Genuine Miele Cover frame TEBL SK | 10327063 | $98.00Read more |
| 20 | | Genuine Miele Viewing screen Blizzard CX1 (KD) | 10547820 | $71.70Read more |
| # | Part image | Description | SKU | Price |

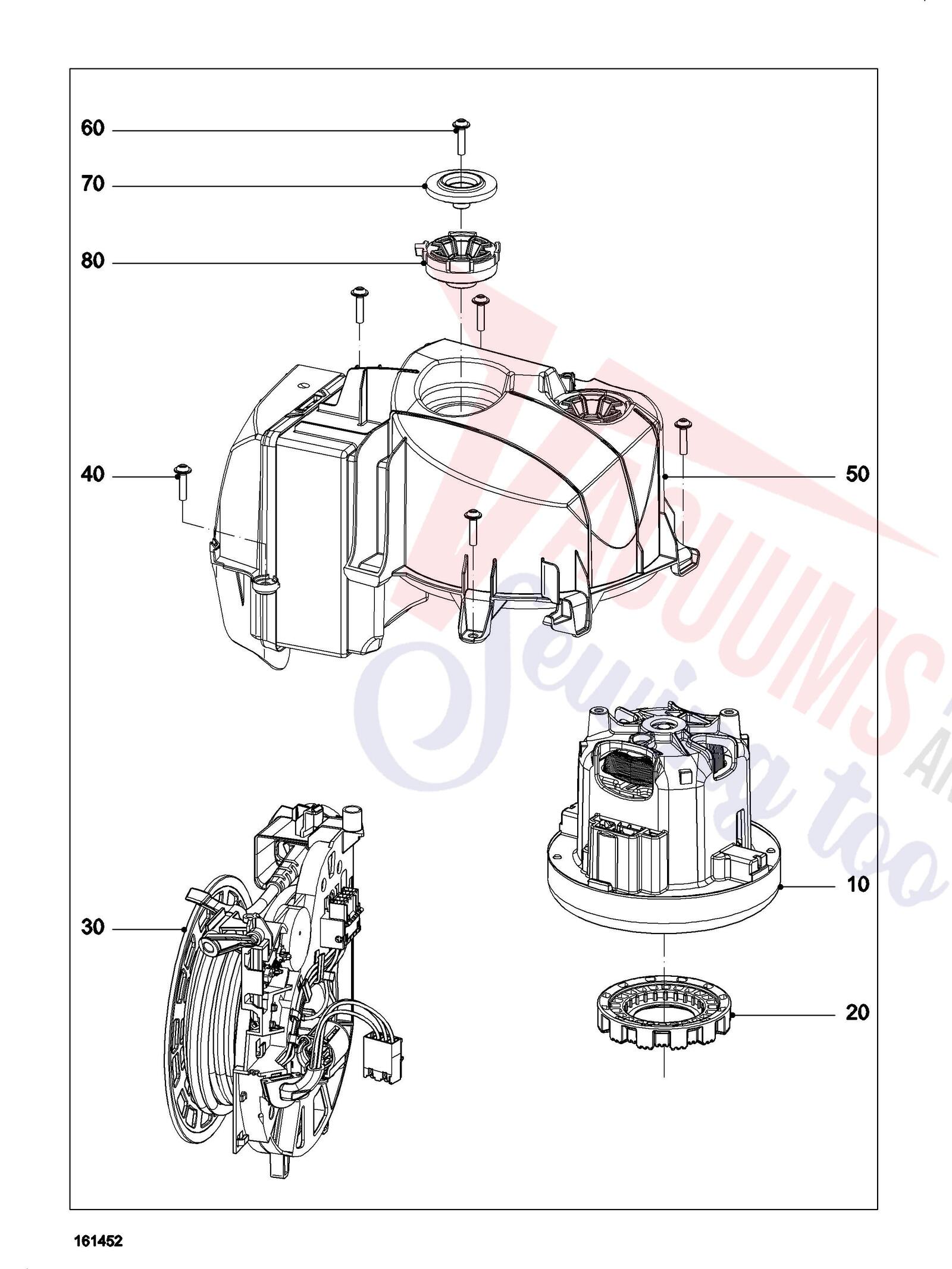

| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 20 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Cable reel CX1 7,5m EU | 10170177 | $100.60Read more |
| 40 | Not Available | undefined For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |
| 50+80 | | Genuine Miele Air shield Hepa-Lifetime H13 | 9739495 | $150.60Read more |
| 60 | Not Available | undefined For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |
| 70 | No Image | Disc | 9734800 | $2.50Read more |
| 80 | No Image | Rubber Cushion Baureihe Sk | 9632041 | $16.00Read more |
| # | Part image | Description | SKU | Price |

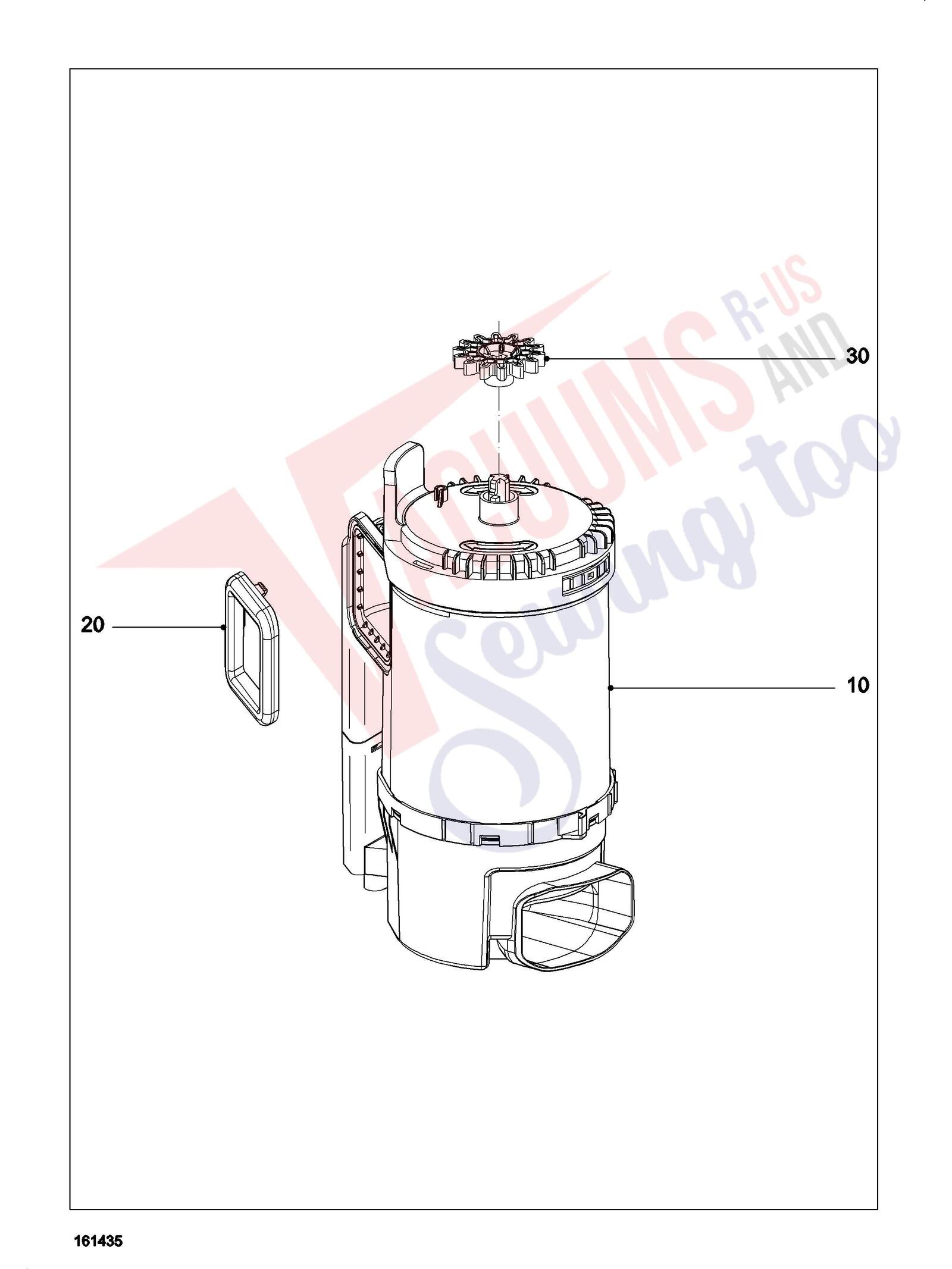

| xx | | Genuine Miele Fine dust cartridge assy | 9607999 | $87.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Genuine Miele Seal Fine dust cartridge | 9878151 | $15.00Read more |
| 30 | | Genuine Miele Cogwheel Filter cleaning | 9631410 | $13.50Read more |

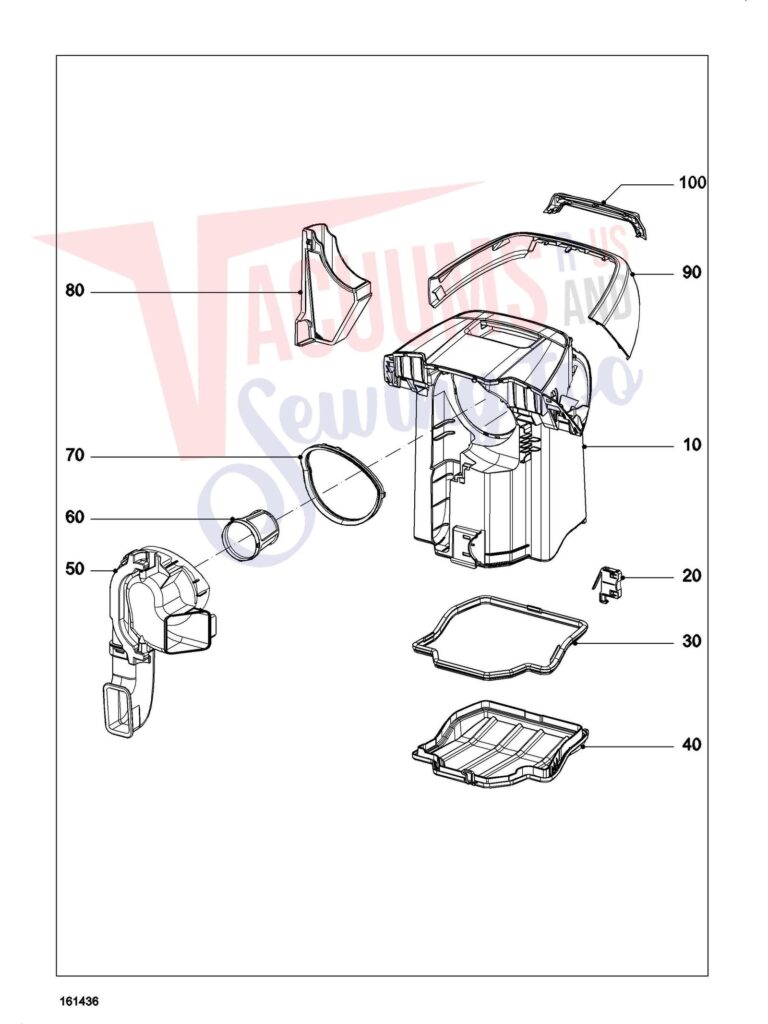

| # | Part image | Description | SKU | Price |

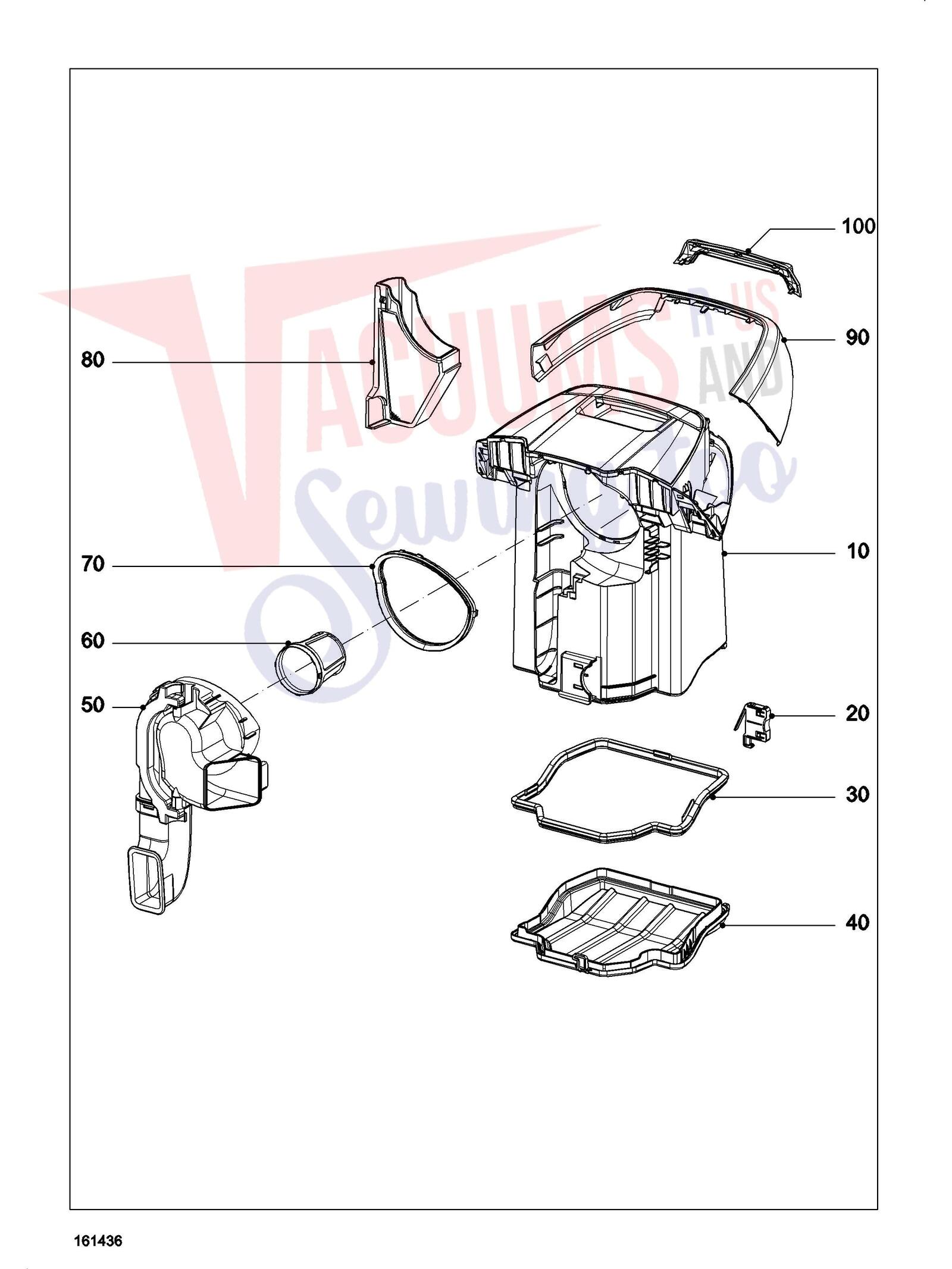

| xx | | Genuine Miele Separator KRRT assy | 10973668 | $189.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Separator TP assy | 9607978 | $169.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |
| 20 | | Genuine Miele Lock Flap | 9631542 | $13.50Read more |
| 30 |  | Genuine Miele Seal Flap | 9631553 | $42.00Add to cart |
| 40 |  | Genuine Miele Flap Interceptor | 9631563 | $27.90Read more |
| 50 |  | Genuine Miele Vent duct Interceptor | 11343630 | $42.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 |  | Genuine Miele Pre-filter kpl. SK | 9631491 | $36.00Read more |
| 70 | | Genuine Miele Seal Vent duct | 10132501 | $18.80Read more |
| 80 |  | Genuine Miele Filter frame Separator | 10132491 | $42.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Cover Interceptor OBSW SK | 10327131 | $52.20Read more |
| 90 | | Genuine Miele Cover Interceptor MART SK | 10327111 | $52.20Read more |
| 90 | | Genuine Miele Cover Interceptor GRGR SK | 10327071 | $52.20Read more |
| 90 | | Genuine Miele Cover Interceptor TEBL SK | 10327081 | $52.20Read more |
| 90 | | Genuine Miele Cover Interceptor LOWE SK | 10327091 | $56.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Genuine Miele Strip | 9608131 | $5.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

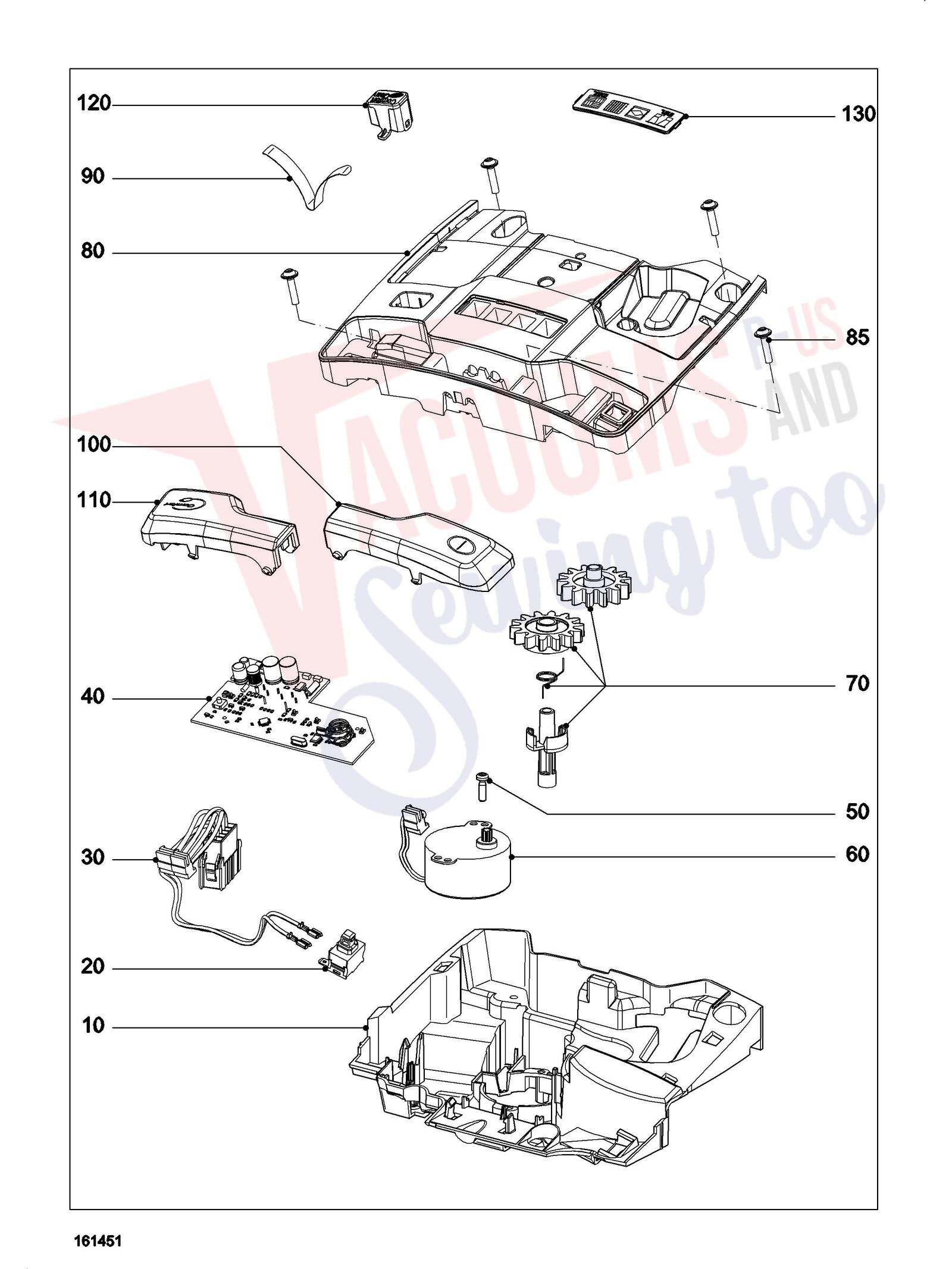

| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | No Image | Bracket Electronic Unit | 9631603 | $66.00Read more |
| 20 |  | Miele On/Off Switch for Canisters 1 Pole PN 09023231 4367102 | WP10439 | Original price was: $18.00.$12.99Current price is: $12.99.Read more |
| 50 | Not Available | undefined For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |
| 70 | | Genuine Miele Conv.kit cogwheel | 10523400 | $43.60Read more |
| 80 | No Image | Cap Radio Controlled | 9734932 | $47.00Read more |
| 85 | Not Available | undefined For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |
| 90 | | Genuine Miele Leaf spring S8 | 7781641 | $2.30Read more |
| 100 | | Genuine Miele Foot switch On-off bedruckt | 9609071 | $24.70Read more |
| 110 | | Genuine Miele Foot switch Cable reel bedruckt | 9609032 | $24.70Read more |
| 120 | No Image | Pushbutton Filter Cleaning Bedruckt | 9608941 | $20.00Read more |
| 130 | No Image | Viewing Screen Cap Funk Bedruckt | 9734952 | $27.00Read more |
| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |
| xx | Not Available | No spare part For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |

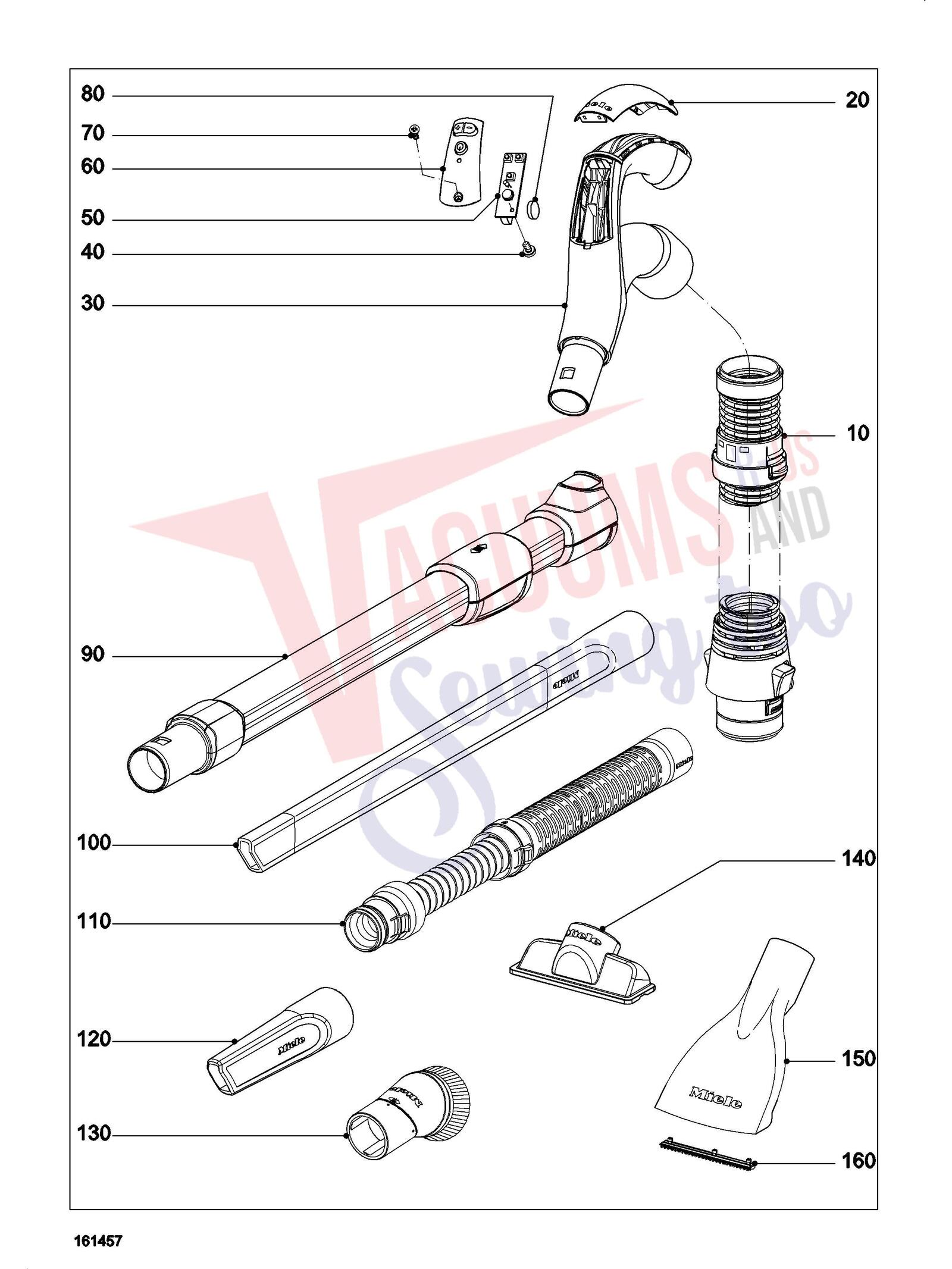

| 10 | | Genuine Miele Suction hose kpl. SK | 9683033 | $40.54Read more |
| 20 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20+30 | Not Available | Tubular handle assy For Miele BLIZZARD CX1 SKMP3 SKMP3 | 9764413 | Not Available |
| 20-80 | | Genuine Miele Tubular handle Radio transmitter | 9764405 | $120.70Read more |
| 20+30+ | | Genuine Miele Tubular handle Radio controlled | 11560550 | $139.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Raised head screw 3,5X6,5 | 6830300 | $2.10Read more |
| 50+80 | | Genuine Miele Electronic unit EDW4752 | 7532546 | $105.10Read more |
| 60 | | Genuine Miele support printed circ. board assy | 9764420 | $39.50Read more |
| 60+70 | Not Available | For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |
| 70 | | Genuine Miele Screw Plastic 3x10 | 9121940 | $2.30Read more |
| 80 | Not Available | Battery For Miele BLIZZARD CX1 SKMP3 SKMP3 | noop | Not Available |
| 90 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 90 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 90 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order — allow 2-4 weeks. |
| 100 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order — allow 2-4 weeks. |
| 110 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 130 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 |  | Available ReconditionedReconditioned Genuine Miele ST Dusting brush SSP 10 More Product Details | 11607230R | $20.00Add to cart |
| 140 |  | Genuine Miele Upholstery nozzle 2K kompakt | 11322570 | $16.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
