Miele Jasper S6290 parts list and schematics
Popular Supplies
| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 | 6223980 | Not Available |
| 10-140 |  | Miele AllTeQ Floor Head for Hard Floors and Carpets SBD 285-3 | 2853 | $98.70Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 120 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |

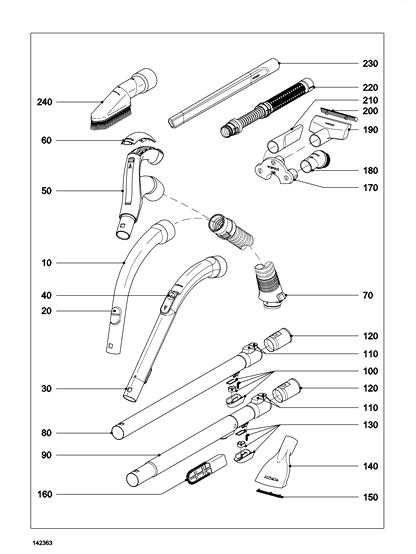

| 10+20 |  | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30+40 | | Genuine Miele Tubular handle XXL Parking assy | 7586107 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 50+60 | No Image | Tubular Handle Comfort S4/S5/S6/S8 | 6163665 | $83.00Read more |
| 60 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | Not Available | Suction hose kpl. zweifarbig SD | 10721260 | Not Available |
| 100 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 100-120 | | Genuine Miele Telescopic pipe 2-part st.steel | 10275580 | $0.00Read more |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 110-130 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 110-130 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 130 |  | Genuine Miele Push button Round | 6151392 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| 160 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 |  | Genuine Miele Holder Accessory | 6991370 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 |  | Genuine Miele Dusting Brush | 7010301 | $0.00Read more |
| 180 | No Image | Compatible alternateDusting Brush L More Product Details | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 190+200 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 210 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 210 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 220 | No Image | Flexible Extention Hose | 07252210 | $20.93Read more |
| 230 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 230 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |
| # | Part image | Description | SKU | Price |

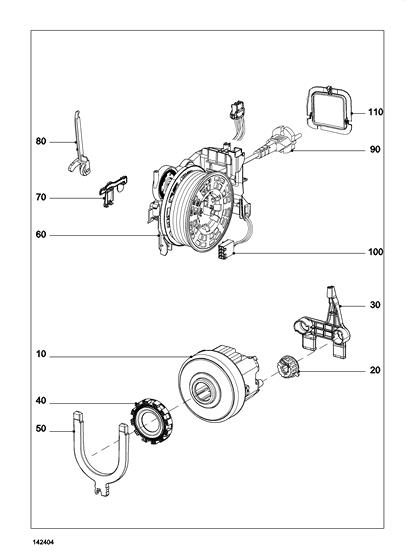

| 10 |  | USA voltage/amp Genuine Miele Motor Complete Mrg402/81 S6/S8 C3 Fan | 7638027 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Available ReconditionedReconditioned Miele C3 Motor - Mrg402/81 S6/S8 - 07638026 More Product Details | 7638026R | $149.99Add to cart |
| 20 | | Genuine Miele Rubber cushion Baureihe SD/SG | 7497732 | $3.60Add to cart |
| 30 | No Image | Motor Bracket S6 | 7497761 | $5.64Read more |
| 40 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Bearing Flange S6 | 7497772 | $3.90Read more |
| 70 | No Image | -Cover Strip S6000 | 7498881 | $2.30Read more |
| 80 | Not Available | -Brake lever compl. S6000 | 7498953Discontinued | Not Available |
| 90 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032Discontinued | Not Available |
| 100 | No Image | Connecting Cable S6 Usa | 7487786 | $47.00Read more |
| 110 | No Image | Fascia Panel S6000 | 7498823 | $15.00Read more |
| # | Part image | Description | SKU | Price |

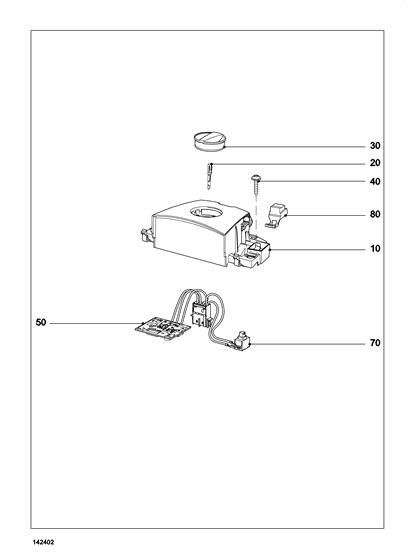

| 10 to 30 |  | Miele S6 Cap with Dial knob | 7838582 | $39.99Read more |
| 20 | No Image | Adapter Rotary Knob | 7510653 | $3.90Read more |
| 30 | No Image | Rotary Knob Sd | 7510663 | $12.31Read more |
| 40 | Not Available | --Fixing | Not Available | Not Available |
| 50-70 | No Image | Electronic Unit Edw S14203/81 Assy | 11256361 | $66.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Miele On/Off Switch for Canisters 1 Pole PN 09023231 4367102 | WP10439 | Original price was: $18.00.$12.99Current price is: $12.99.Read more |
| 80 | No Image | Lever Switch | 7510632 | $3.90Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

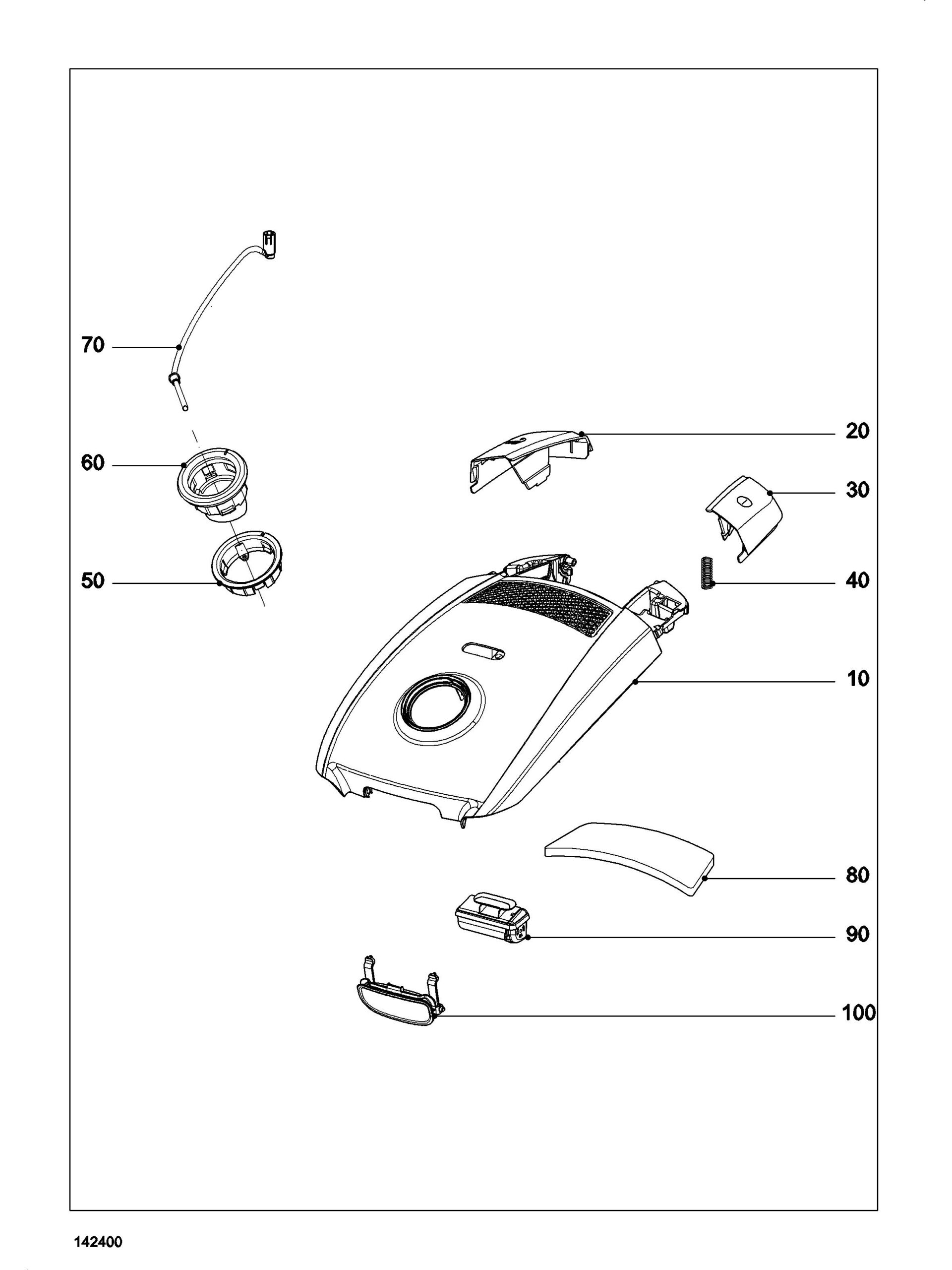

| 10 to 40 | No Image | Casing Top Pistachio Green | 7839112 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Obsidian Black | 9484551 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Tayberry Red | 7839062 | $109.00Read more |
| 10 to 40 | Not Available | Casing top Royal blue | 7839041Discontinued | Not Available |
| 10 to 40 | No Image | Casing Top Obsidian Black | 9484551 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Midnight Purple | 7697791 | $129.00Read more |
| 10 to 40 | No Image | Casing Top Lily Green | 7697801 | $129.00Read more |
| 10 to 40 | No Image | Casing Top Lava Grey | 7839012 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Canary Yellow | 9597330 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Autumn Red | 9471831 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Obsidian Black | 9484551 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Canary Yellow | 9597330 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Obsidian Black | 9484551 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Marine Blue | 11096510 | $109.00Read more |
| 10 to 40 | No Image | Casing Top Petrol | 10808920 | $119.00Read more |
| 20 | No Image | Foot Switch Right | 7516662 | $21.62Read more |
| 30 | No Image | Foot Switch Left Printed Sd | 11591900 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 50 | No Image | Circlip | 7498032 | $2.50Read more |
| 60 | No Image | Ring Casing Top | 7519253 | $16.00Read more |
| 80 | No Image | Insulation Matting Air Shield | 9549800 | $7.59Read more |
| 90 | No Image | Change Filter Ind. Kpl. S6 | 7498065 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Lock | 7498041 | $2.50Read more |
| # | Part image | Description | SKU | Price |
| 10 to 40 | No Image | Cover Frame Royal Blue Kpl. | 7698003 | $91.00Read more |
| 10 to 40 | No Image | Cover Frame Lotos White Compl. Sd Prc | 10889810 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 to 40 | Not Available | Cover frame Melon yellow kpl. | 7698503Discontinued | Not Available |
| 10 to 40 | No Image | Cover Frame Lava Grey Kpl. | 7698514 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Obsidian Black Compl. Sd Prc | 10889840 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Chili Red Kpl. | 7698534 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Chili Red Kpl. | 7698535 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Sprint Blue Kpl. | 7698575 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Almond Brown Kpl. | 7698595 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Midnight Purple Kpl. | 7698615 | $129.00Read more |
| 10 to 40 | No Image | Cover Frame Lily Green Kpl. | 7698625 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Pistachio Green Kpl. | 7698635 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Ruby Red Velvet | 7698663 | $129.00Read more |
| 10 to 40 | No Image | Cover Frame Autumn Red Compl. Sd Prc | 10889820 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Obsidian Black Compl. Sd Prc | 10889840 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Canary Yellow Kpl. | 9459635 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Marine Blue Compl. Sd Prc | 10889830 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 to 40 | No Image | Cover Frame Racing Green Kpl. | 9789345 | $100.00Read more |
| 10 to 40 | No Image | Cover Frame Petrol Kpl. Sd | 10646965 | $159.00Read more |
| 20 | No Image | Damping Plate | 10821600 | $20.00Read more |
| 30 | No Image | Seal F. Motorraum | 7510582 | $15.00Read more |
| 40 | No Image | Grille Cover Frame | 7510591 | $12.00Read more |
| 45 | No Image | Fitment | 7737983 | $4.14Read more |
| 50 | Not Available | --Fixing | Not Available | Not Available |
| 60 | No Image | Seal | 7510571 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Miele ActiveAir Clean Filter SF-AA50 | 9616110 | $49.00Add to cart |
| 90 |  | Miele HEPA AirClean with TimeStrip SF-HA 50 | 4002515317013 | $66.69Read more |
| 100 |  | Miele Bag Bracket to fit C2 and S6 | WP11830 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Aftermarket Miele FJM bags 4 pack bags | FJMAM4PK | $9.99Add to cart |
| 100 |  | Aftermarket Miele FJM Bags 5pk with Filters | WP10969 | $19.16Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Compatible alternatePaper Bags-Miele,Fjm,5Pk,Allergen,Poly Wrapper More Product Details | P205 | $18.90Add to cart Special order: ships in 2 to 4 weeks |
| 110 | Not Available | vacuum cleaner bag F/J/M USA | 7805100Discontinued | Not Available |
| # | Part image | Description | SKU | Price |

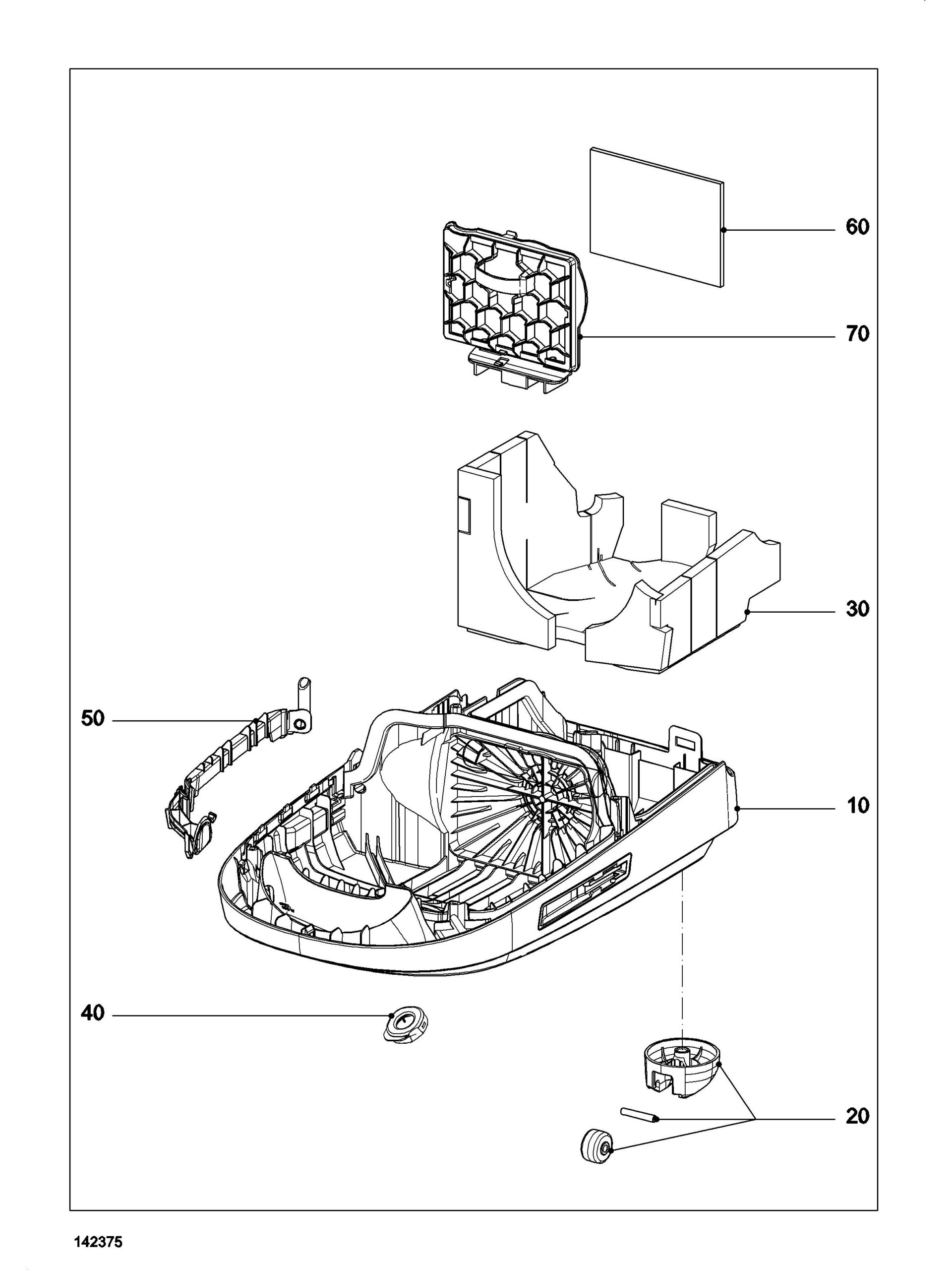

| 10 to 30 | No Image | Casing Bottom Vollst. S6 | 7500744 | $119.00Read more |
| 30 | No Image | -Damping Plate | 10821610 | $11.16Read more |
| 40 | No Image | Suction Control Kpl. S6 Main/Silence | 7497882 | $22.00Read more |
| 50 | No Image | Cover Strip | 7497796 | $56.00Read more |
| 60 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | Filter Frame S6 | 7497756 | $7.00Read more |
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
