Cleanmax Champ parts list and schematics
Popular Supplies

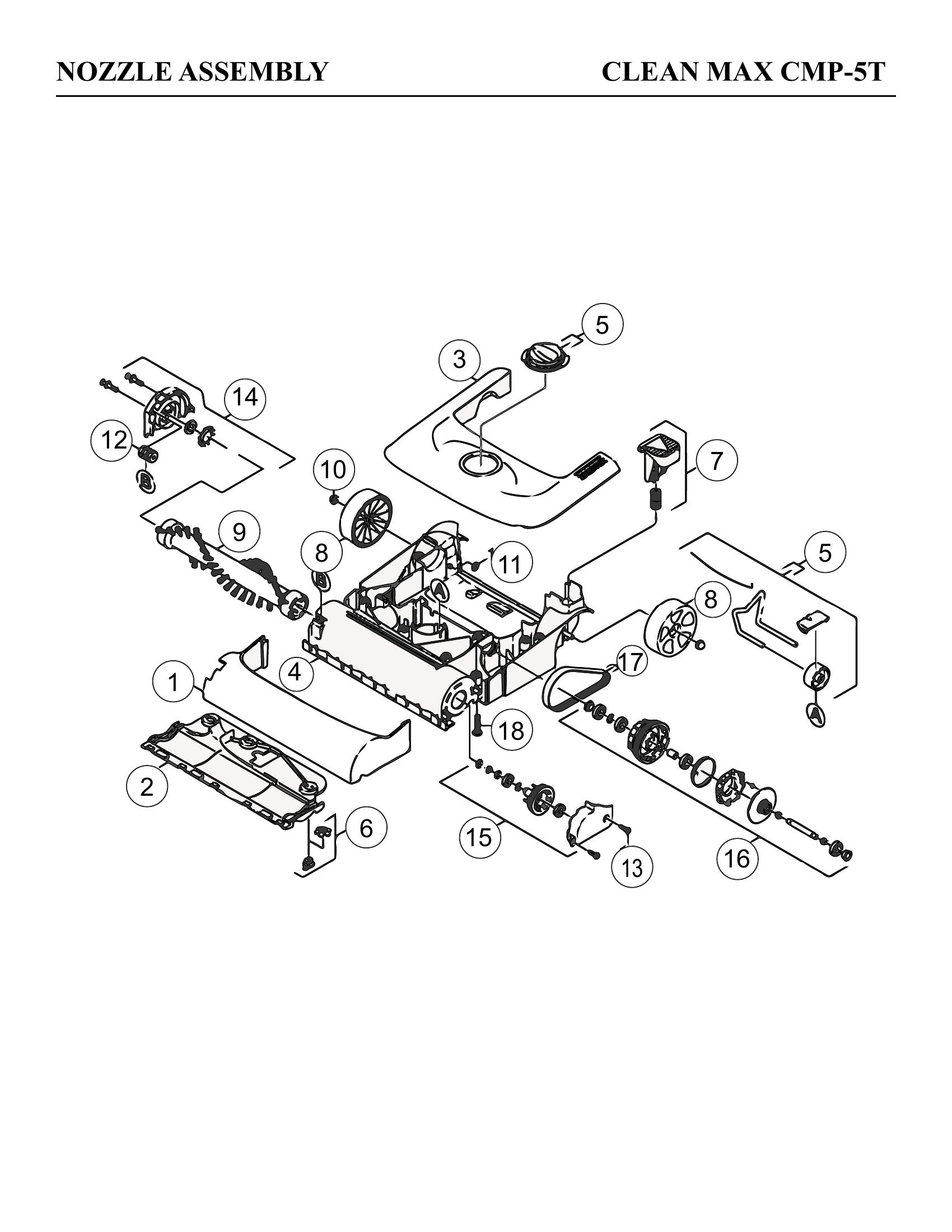

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | AXLE, SHAFT CV WITH GROOVE REPLACES ITEM K94121630 | K94121780 | $19.99Read more |
| Not Shown |  | MOULDED PART RING | K50326170 | $2.99Read more |
| 1 | Not Available | Shock Absorber | K50324040 | Not Available |
| 2 |  | Glide Sole Bottom Plate CV CVD 30/1 models | K50591403 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | CleanMax CMP-5T Top Nozzle Cover | K50328480 | $17.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | HOUSING COMPLETE CV 30/1 | K40606970 | $74.99Read more |
| 5 |  | ADJUSTING WHEEL CPL | K45150960 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Lock Piece Kit, Glide Sole - All CVD Uprights | K40715460 | $13.99Read more |
| 7 | No Image | Pedal, Foot, Complete - CV30/1, CV38/1, CV38/2, CV48/2 | K44812650 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Tornado Wheel Rear-tornado Cv30 Commercial | K55153740 | $19.99Add to cart |
| 9 |  | Brush Roll - Tornado Cv30 Commercial For: nilodor | K69066410 | $81.73Read more Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | LOCK WASHER | K63431870 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | LOCK WASHER | K63431190 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | SCREW UNION PART | K54012880 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | SCREW 4 X 12 | K73031060 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Cap Upright Brush Side Brush Roll K40637730 Agitator | K40638920 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Cover, Coupling | K40637740 | $68.99Read more |
| 16 |  | Clutch Coupling CV 30 | K44700220 | $108.99Read more |
| 17 |  | Belt 2-Pack for CVD and Champ Fits Tornado CVD and CleanMax Champ CMP-5T | K28842740 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Screw 5x20, Tempest | K73031080 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

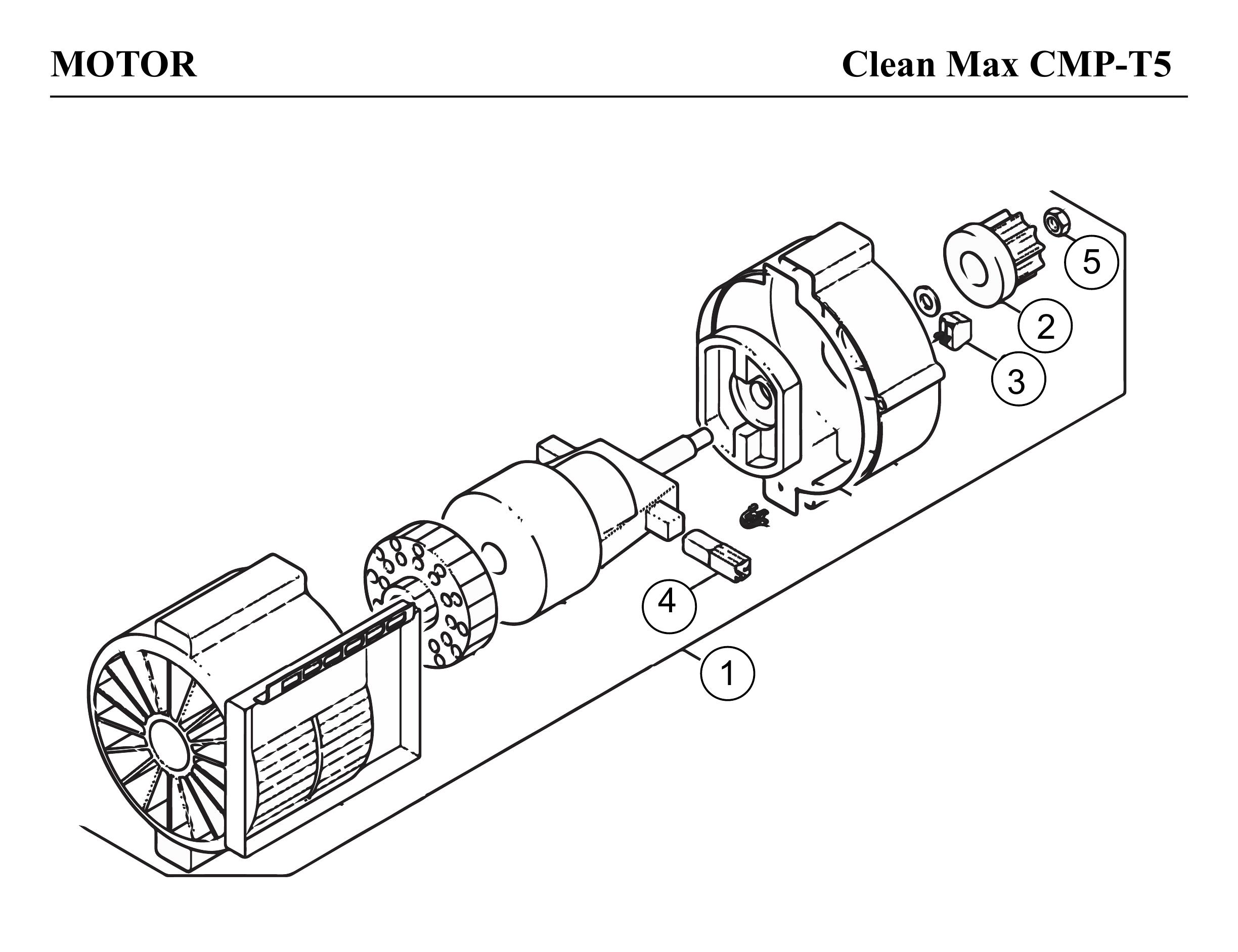

| 1 | No Image | Motor, Suction, Complete - CV30, CV38, Champ | K40605910 | $281.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | PINION | K53520850 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | STRIP TERMINAL | K66435510 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Carbon BruShes 120 VAC GmbH set | K66102490 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | HEX NUT | K73114310 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

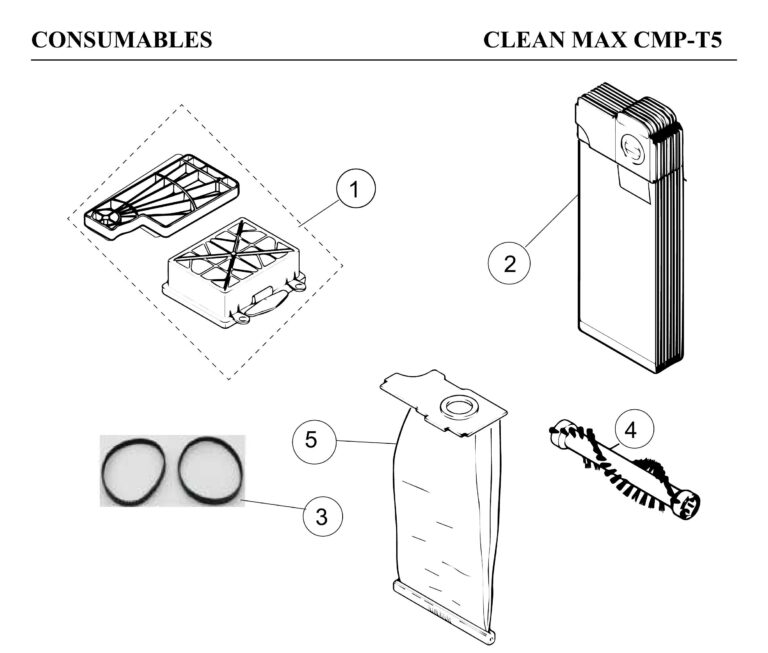

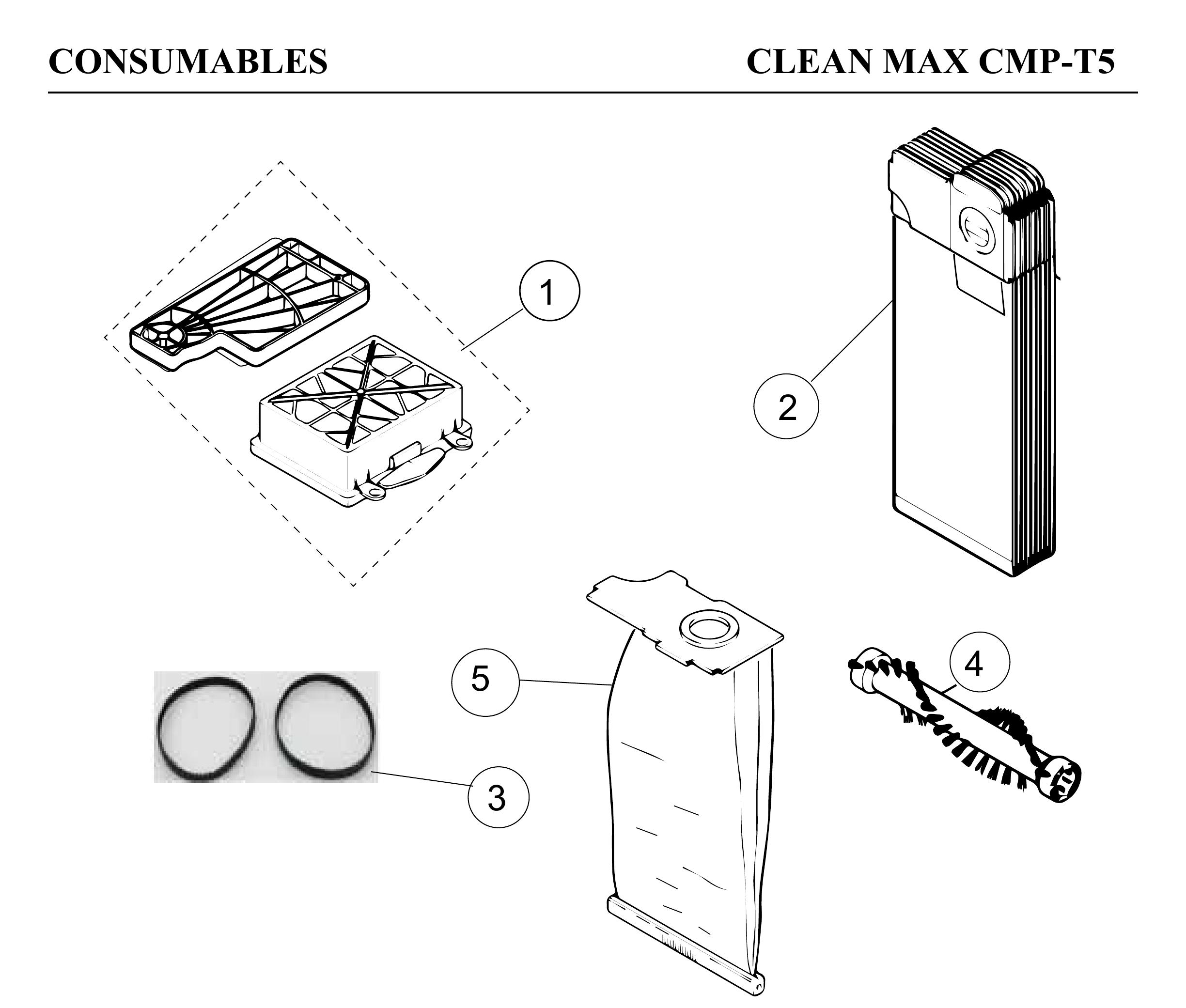

| # | Part image | Description | SKU | Price |
| 3 | | Belt 2-Pack for CVD and Champ Fits Tornado CVD and CleanMax Champ CMP-5T | K28842740 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | Belt 2-Pack for CVD and Champ Fits Tornado CVD and CleanMax Champ CMP-5T | K28842740 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Brush, Roller Red CV 30/1 Hard | K69066420 | $52.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Brush Roll - Tornado Cv30 Commercial For: nilodor | K69066410 | $81.73Read more Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Bag Fabric Filter 1pk | K69043010 | $97.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

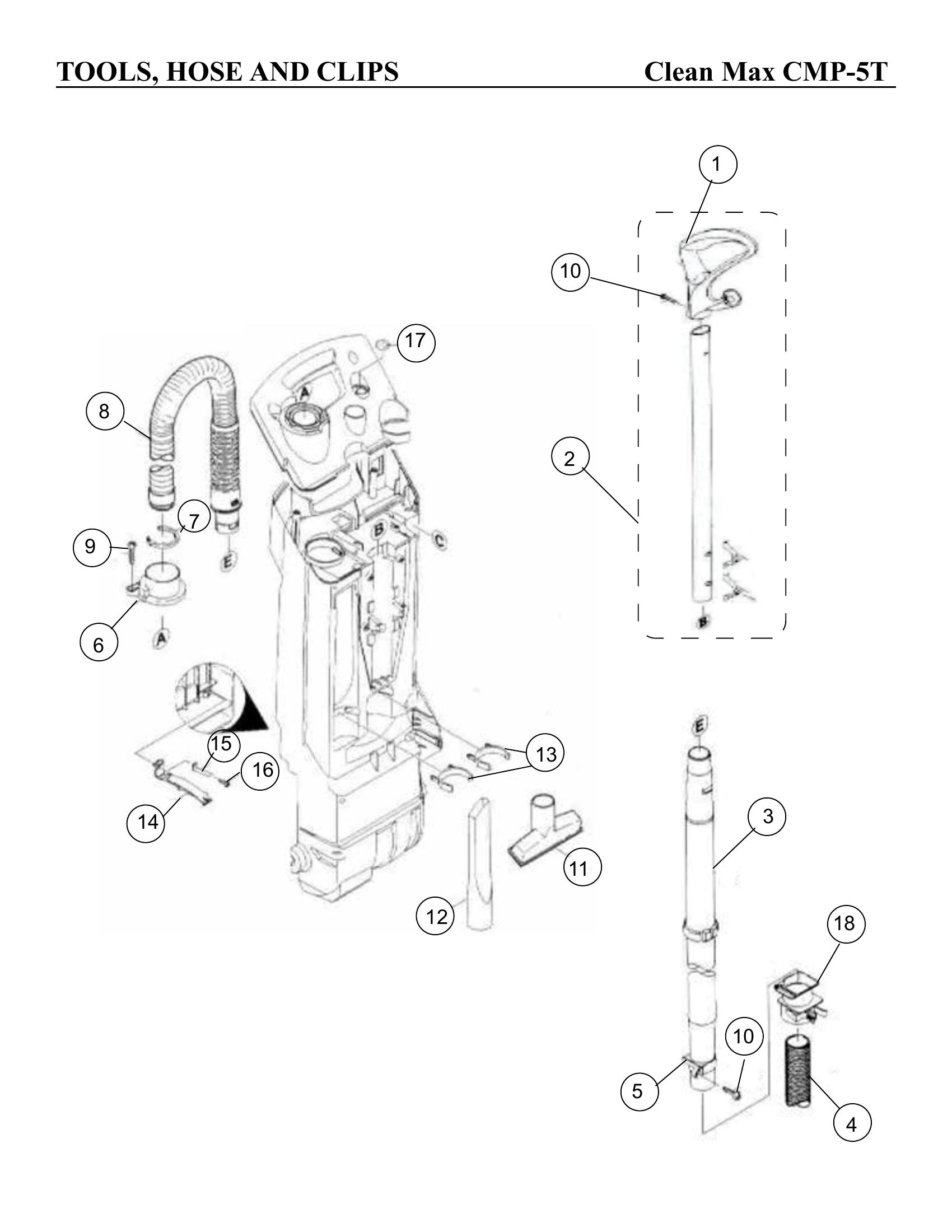

| # | Part image | Description | SKU | Price |
| 2 |  | HANDLE CPL | K41280010 | $56.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | WAND CV MODELS MATCHING HOSE K63919340 | K51290460 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | SUCTION HOSE DN 32 | K63911150 | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | RING SUCTION TUBE | K55700750 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | CONNECTION PIECE | K50325400 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | RETAINING SPRING | K50310110 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Hose, Suction CV Models After 2010 | K63919340 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Screw 5x20, Tempest | K73031080 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Screw 5x40 A2 70 IN6RD | K73031180 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Uphostery Nozzle,Black | K69002330 | Not Available |
| 12 | No Image | CREVICE TOOL DN35 | K69062400 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | CLIP ACCESSORIES | K50411110 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Bracket Upright Filder Holder CV CVD | K50428360 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | SPRING | K53323390 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SCREW 4 X 12 | K73031060 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Lens | K50315210 | $0.00Read more |
| 18 | No Image | Wand Sleeve - All CV and CVD Uprights | K54071150 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

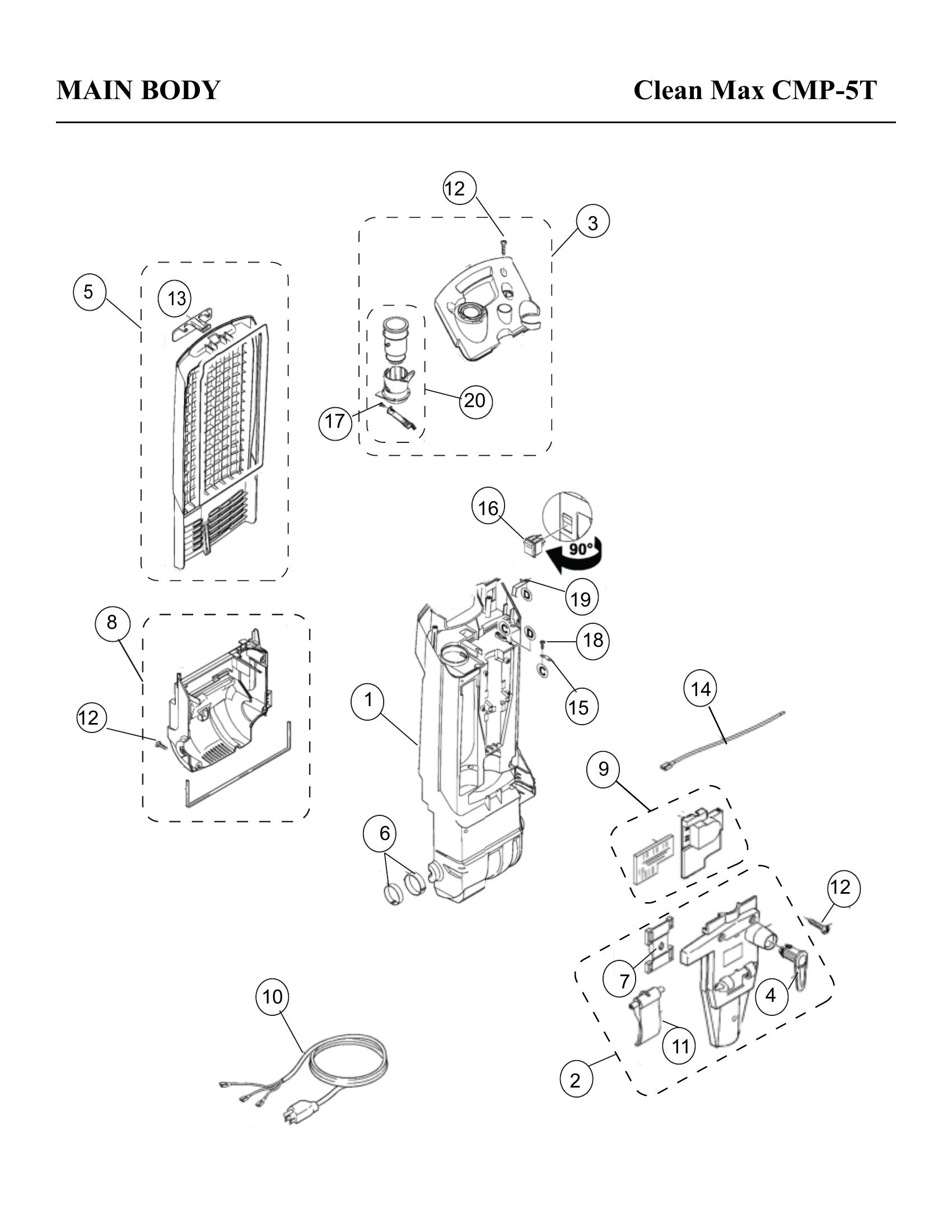

| # | Part image | Description | SKU | Price |
| 1 | No Image | HOUSING | K50609910 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | COVER CPL | K40320030 | $36.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | COVER ELECTRIC | K40320040 | $63.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | CABLE HOOK | K50446610 | $6.99Read more |
| 5 | No Image | CleanMax CMP-5T Front Cover | K50646210 | $101.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | BEARING SHELL - PKG OF 2 | K42500790 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | CLAMP | K50324480 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Motor,Vacuum,Alfred Karcher,Cover,CPL | K40532240 | $31.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | PCB,Vacuums | K46820010 | $106.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Tornado Cord Advance Cv30 Commercial 40ft 3 Wire | K46490260 | $67.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | LEVER | K54813450 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Screw 5x20, Tempest | K73031080 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | LID LOCK | K50750300 | $3.99Read more |
| 14 | Not Available | Insulated Wire/CONN 18AWG TY 1015, 600V, 105C DEG | K48393290 | Not Available |
| 15 | No Image | CLAMP CLIP | K69032410 | $4.99Read more |
| 16 | Not Available | Rocker Switch | K66301560 | Not Available |
| 17 | No Image | SCREW 4 X 12 | K73031060 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Screw 3.5X12 | K73030930 | Not Available |
| 19 |  | GROUNDING STRAP | K50346890 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Red Lever and Tube Assembly | K54813520 | $5.99Read more |
