HANDLE schematic and parts book for Simplicity Model/s VOLT
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Handle Tube | B223-3000 | Not Available |
| 3 | Not Available | Handle Cover | B223-2514 | Not Available |
| 4 | Not Available | Screw | A732-8314 | Not Available |
| 5 | Not Available | Handle Duct | B223-2414 | Not Available |
| 6 | Not Available | Wire Harness | B223-1800 | Not Available |
| 7 | Not Available | Battery | C223-1800 | Not Available |
| 8 | Not Available | Cable Cover | B223-1014 | Not Available |
| 9 | Not Available | Battery Post | B223-1300 | Not Available |
| 10 | Not Available | Connector | B223-2100 | Not Available |
| 11 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $2.99Add to cart |
| 12 | Not Available | Neck Coupling Back | B223-0914 | Not Available |
| 13 | Not Available | Neck Coupling Front | B220-1014 | Not Available |
| 14 | Not Available | Hex Nut | A432-0805 | Not Available |
| 15 | Not Available | Charger | C223-2000 | Not Available |

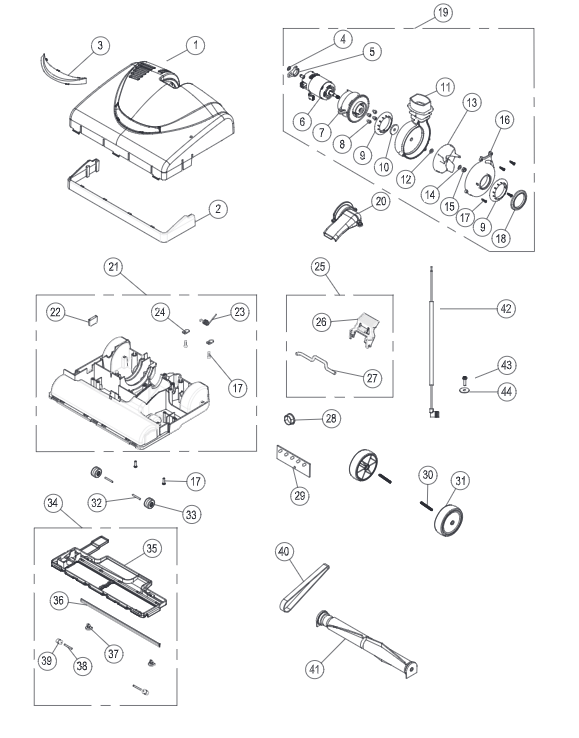

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Cover | B220-2414 | Not Available |
| 2 | Not Available | Furniture Guard | B220-2614 | Not Available |
| 3 | Not Available | Lens | B018-0415 | Not Available |
| 4 | Not Available | E Clip | A732-3000 | Not Available |
| 5 | Not Available | Motor Support Base | B223-2814B | Not Available |
| 6 | Not Available | Motor | C223-1600 | Not Available |
| 7 | Not Available | Motor Housing | B223-0114 | Not Available |
| 8 | Not Available | Screw M5 X 6mm | A733-5000 | Not Available |
| 9 | Not Available | Pivot Bushing | B220-4414 | Not Available |
| 10 | Not Available | DC Motor Seal | B220-4500 | Not Available |
| 11 |  | Scroll Housing RH Black DC 10 Series riccar R10 simplicity S10 maytag M500 D220-4014 | B220-4014 | $7.99Add to cart |
| 12 | Not Available | Washer (Behind Fan) | A733-3300 | Not Available |
| 13 | Not Available | Motor Fan | B220-4314 | Not Available |
| 14 | Not Available | Washer (Above Fan) | A733-2200 | Not Available |
| 15 | Not Available | Hex Nut | A432-0605 | Not Available |
| 16 |  | Scroll Housing Lefthand Fan Cover for Riccar R10 and Simplicity S10 | B220-4114 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Screw Hi/Lo #8 x 5/8 | A732-8314 | Not Available |
| 18 | Not Available | Motor Inlet Seal | B480-4514 | Not Available |
| 19 | Not Available | Motor Assembly | D223-0400 | Not Available |
| 20 | Not Available | Inlet Duct Cover | B220-0214 | Not Available |
| 21 |  | Basetray Assembly M500 S10 R10 | D220-0114 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Available ReconditionedReconditioned Basetray Assembly M500 S10 R10 More Product Details | D220-0114R | $36.99Add to cart |
| 22 | Not Available | Basetray Plug | B016-1914 | Not Available |
| 23 | Not Available | Spring | B220-0900 | Not Available |
| 24 |  | Axle clamp for simplicity s10 freedom and riccar r10 supralights | WP10350 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Compatible alternateTitan Cord Hook - Lower Fuller Fbhd2t Upright Vacuumfits Cpu2 Titan T4000 More Product Details | 54018 | $3.12Add to cart Special order — allow 2-4 weeks. |
| 24 |  | Compatible alternateCarpet Pro Cord Hook Holder CPU2 More Product Details | 54050 | $2.99Add to cart |
| 24 |  | Compatible alternateFuller Brush Carpet Pro Inlet Tall N/S More Product Details | 54076 | $13.99Add to cart Special order — allow 2-4 weeks. |
| 24 |  | Compatible alternateLower Cord Hook for Carpet Pro CPU1 CPU2 and FBHD1 More Product Details | WP11266 | $3.99Add to cart Special order — allow 2-4 weeks. |
| 25 | Not Available | Upright Stop Pedal Assy | D220-0714 | Not Available |
| 26 | Not Available | Upright Stop Pedal | B220-0714 | Not Available |
| 27 | Not Available | Upright Stop Pedal Pivot | B220-0800 | Not Available |
| 28 | Not Available | Hole Plug | A018-1414 | Not Available |
| 29 | Not Available | LED PCB | B317-1100 | Not Available |
| 30 | Not Available | Large Wheel Axle | B010-2800B | Not Available |
| 31 | Not Available | Rear Wheel Assembly | C220-0531B | Not Available |
| 32 | Not Available | Small Wheel Axle | B010-0001D | Not Available |
| 33 | Not Available | Bottom Plate Wheel | B370-1843 | Not Available |
| 34 |  | ULW Baseplate Assembly for Soft Carpet | D220-1414 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | Baseplate | B220-1414 | Not Available |
| 36 | Not Available | Squeegee | B015-3200 | Not Available |
| 37 | Not Available | Baseplate Cover Screw | B220-0414 | Not Available |
| 38 | Not Available | Bottom Plate Axle | B370-1700 | Not Available |
| 39 | Not Available | Front Wheel Assy w/Bushing | C010-2714 | Not Available |
| 40 | Not Available | Belt (2 pack) | VOLT-B2 | Not Available |
| 41 | Not Available | Agitator | D223-1700 | Not Available |
| 42 | Not Available | Wire Harness DC Coupling | B223-1600B | Not Available |
| 43 | Not Available | Screw M4 X 12 | A732-2500 | Not Available |
| 44 | Not Available | Strain Relief Washer | B034-0100 | Not Available |
